What are ultrafiltration unit and what work does it do?

Ultrafiltration membrane is a method of purifying water using a semipermeable membrane to force water through it. During this process, larger particles like suspended solids and solutes with high molecular weights are retained on one side of the membrane called the retentate side. On the other side, known as the permeate side, water and solutes with low molecular weights can pass through the membrane.

Ultrafiltration membrane can eliminate many contaminants, including organic molecules, viruses, and salts. Its popularity has grown due to several advantages it offers. Firstly, regardless of the source water, UF consistently produces water of stable quality. Additionally, UF systems have a compact physical design, occupying less space. Furthermore, UF is highly effective in removing 90-100% of pathogens, making it a reliable method for disinfection. Notably, UF does not necessitate using chemicals except when cleaning the membranes.

Ultrafiltration membrane was initially described towards the conclusion of the 19th century. However, the practical implementation of ultrafiltration as a separation technique began in 1963, following two significant developments. The first was the discovery of an asymmetric cellulose acetate reverse osmosis membrane in the 1950s, which laid the foundation for advancements in membrane technology. The second was MIT’s breakthrough in the early 1960s with the discovery of polyelectrolyte complex hydrogels.

The actual progress of modern membrane technology occurred in the late 1990s when polymeric membrane chemistry and processing techniques were introduced into membrane manufacturing. These novel materials and manufacturing methods revolutionized the efficiency and competitiveness of UF as a water treatment process.

Ultrafiltration unit Characteristics

The size of the pores in ultrafiltration membranes varies from 0.1 to 0.01 microns, but the concept of “molecular weight cut-off” (MWCO) has become a preferred method for describing UF membranes. MWCO represents the molecular weight at which 90% of a large solute cannot pass through the membrane. UF falls within the filtration range between microfiltration and nanofiltration.

Maintenance cleaning is necessary for the membranes utilized in ultrafiltration to prevent fouling caused by solids, scaling, and the presence of microbiological agents like microbes and algae. The separated contaminants accumulating in the UF retentate must be appropriately disposed of.

UF finds its application in various scenarios, such as:

1. Treating and recycling wastewater and industrial process water.
2. Removing particulates and macromolecules (e.g., achieving 90-95% arsenic removal) for potable water production.
3. Operating as standalone systems.
4. Enhancing or substituting secondary and tertiary filtration stages in current water treatment plants.
5. Filtration of effluent from paper pulp mills.
6. Meeting the filtration needs of the food and beverage industry.
7. Water softening processes.

The utilization of UF as a pretreatment method in treating high-silt density index (SDI) waters can significantly prolong the lifespan of reverse-osmosis membranes. UF pretreatment offers several advantages, including lower investment requirements, reduced operating costs, absence of coagulants, and minimal chemical usage.

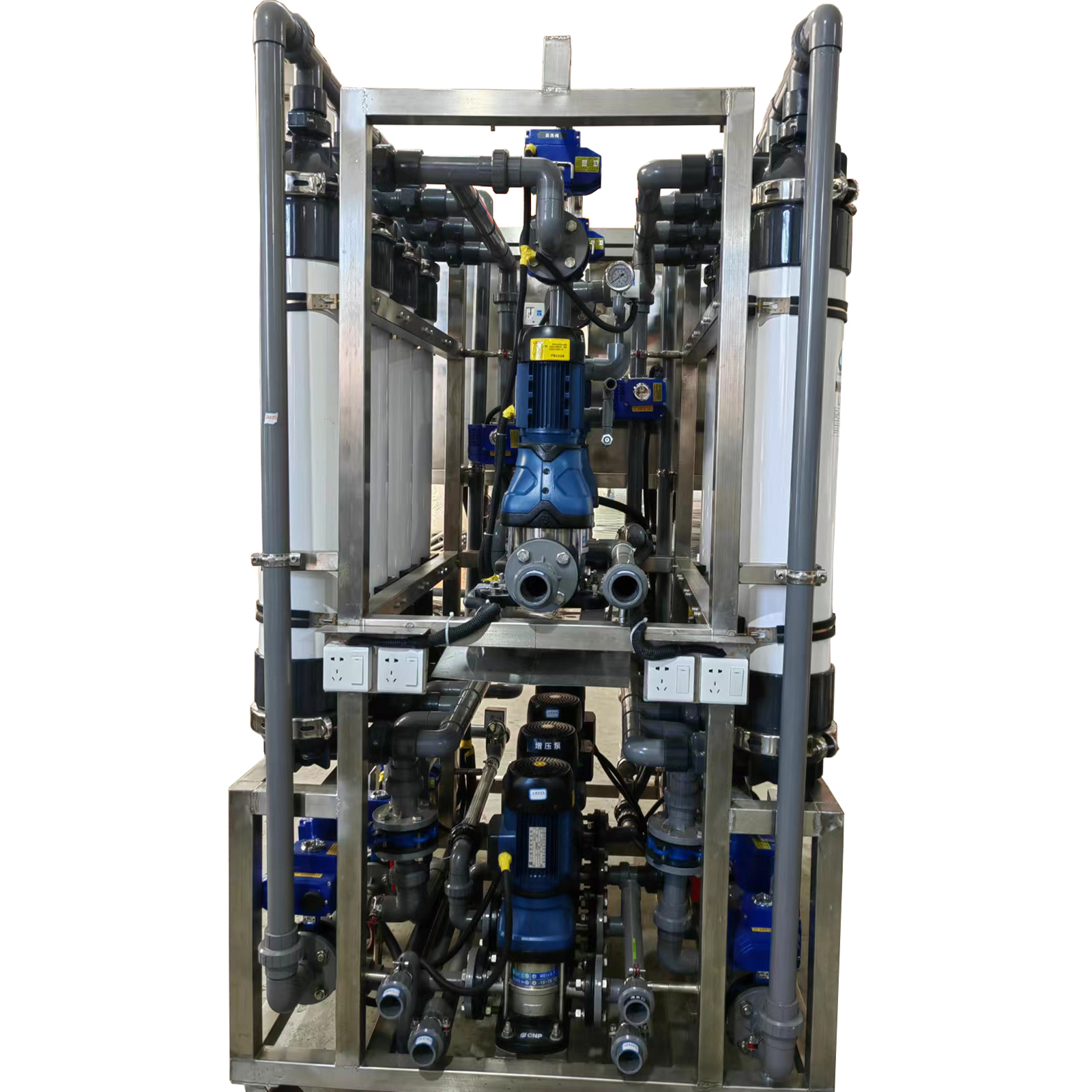

Fluence offers standalone stainless steel skid-mounted UF units that cater to diverse applications. These units can be used for various purposes such as pretreatment for reverse osmosis (RO), clarification of surface water, treatment of high-SDI groundwater, pretreatment of seawater, removal of arsenic, primary and secondary treatment of effluents for reuse, as well as bacteriological treatment for mineral water.

Hinada Ultrafiltration membranes have gained popularity and are currently in trend due to several reasons:

1. Effective Removal of Contaminants: Ultrafiltration membranes have the capability to effectively remove a wide range of contaminants from water, including suspended solids, bacteria, viruses, colloids, macromolecules, and certain salts. This ability to target multiple contaminants makes UF a versatile and reliable water purification technology.

2. Consistent Water Quality: UF provides stable and consistent water quality, regardless of variations in the source water. It ensures reliable removal of pathogens, organic compounds, and other impurities, resulting in high-quality treated water.

3. Compact Design: UF systems have a compact physical footprint, requiring less space compared to other water treatment processes. This makes UF suitable for installations where space is limited or where a smaller footprint is desired.

4. Chemical-Free Operation: UF is known for its chemical-free operation, except for occasional membrane cleaning. It does not require the addition of coagulants or disinfectants, which simplifies the treatment process and reduces the need for handling and storing chemicals.

5. Versatile Applications: UF finds application in various industries and sectors, including municipal water treatment, industrial water treatment, food and beverage production, pharmaceutical manufacturing, and wastewater treatment. Its versatility and adaptability make it a preferred choice for different water purification needs.

6. Technological Advances: Over the years, there have been advancements in membrane materials, manufacturing techniques, and system design, leading to improved efficiency, durability, and cost-effectiveness of UF membranes. These advancements have contributed to the increased popularity and adoption of UF in the water treatment industry.

Overall, the combination of effective contaminant removal, consistent water quality, compact design, chemical-free operation, versatile applications, and technological advancements has made ultrafiltration membranes a popular choice in the trend of water purification and treatment.
