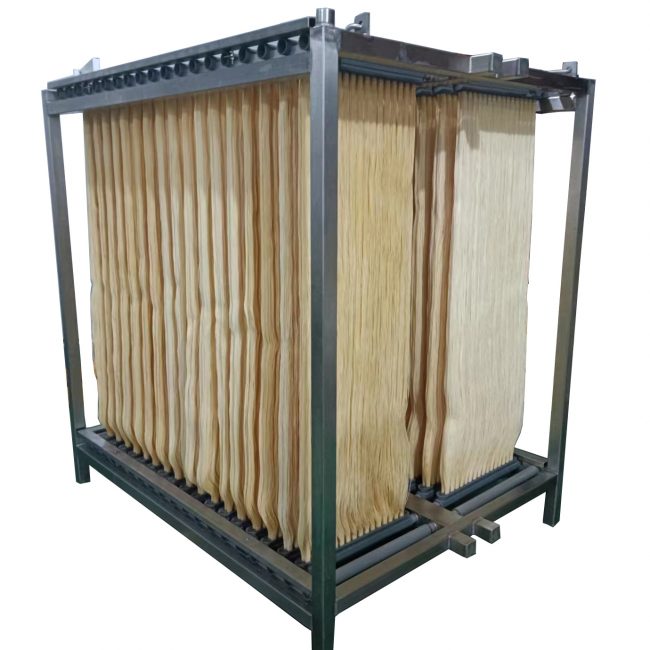

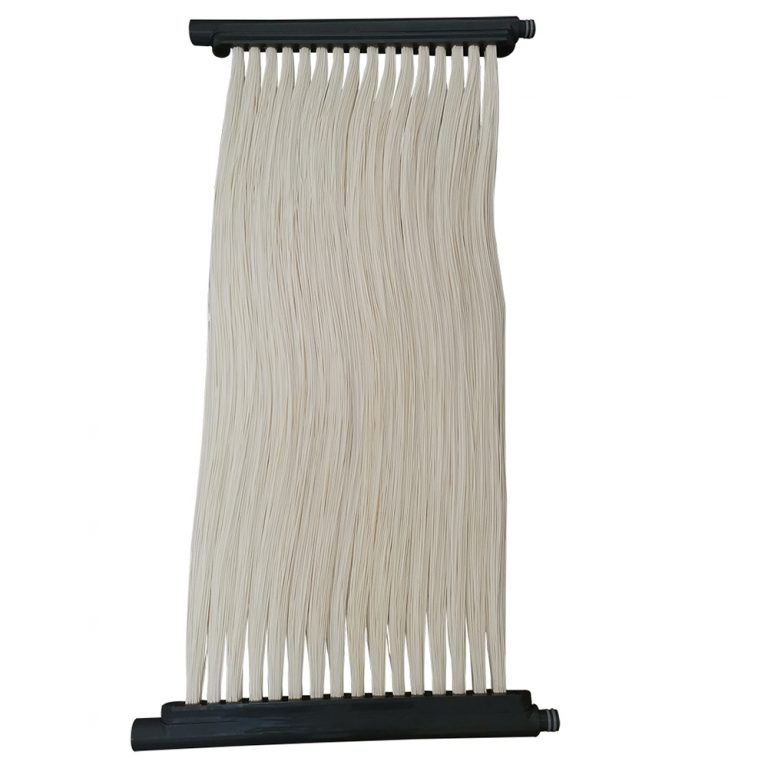

Hinada is a leading manufacturer of MBR Membrane Bioreactor, we are available in providing two different submerged membrane element or completely MBR module with Frame Skid. The key features of these elements and recommended applications are summarized in the Table

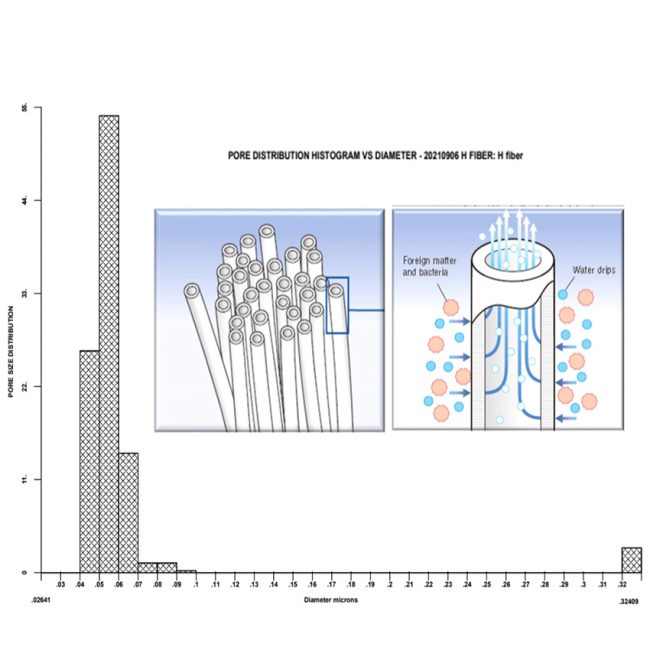

|Membrane||Nominal pore size (μm)||0.06 Micron (Average)|
|Material||PVDF, PET non-woven fabric and ABS resin|
|Membrane area per element (m2)||10 m2||20 m2|
|Membrane Element dimension||Height: 1100mm||Height: 1535mm|
|Wide: 571mm||Wide: 571mm|
|Thickness: 45mm||Thickness: 45mm|
|Filtration Method||Suction /Outside-in||Suction /Outside-in|
|Hollow fibers I /O diameter||1.0 /2.2 mm||1.0 /2.2 mm|
|Design flow rate||100—300 Liters/ Hour
(Sewage design 150 L/H)
|200—600 Liters/ Hour
(Sewage design 300 L/H)
|Air diffuser||Fine bubble, tube type,
|Fine bubble, tube type EPDM rubber|
|Recommended usage||Smaller capacity plants (<200 m3/d)
Containerized package plants
In-building wastewater reuse Marine application

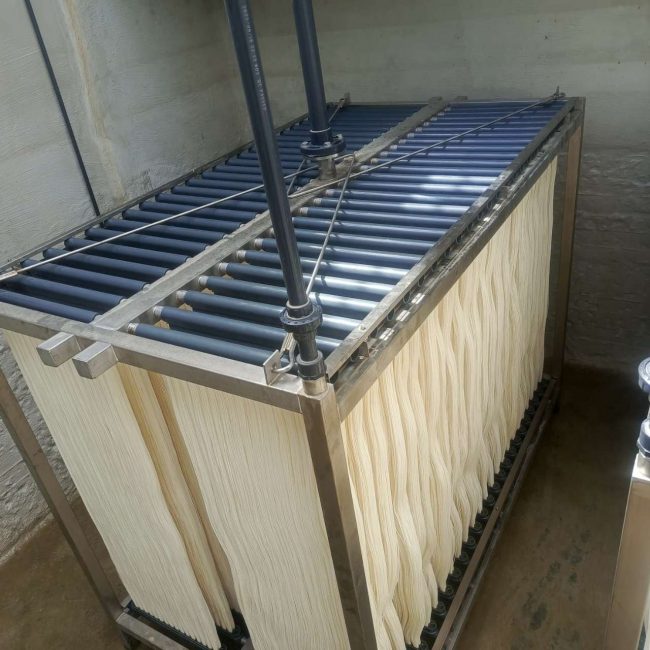

Municipal & industrial wastewater
|Medium and large capacity plants (>200 m3/d) Municipal & industrial wastewater
There are many advantages of MBR Membrane bioreactor: Lower energy costs, high quality effluent, lower footprint space, high flow rate,easy cleaning,easy operation and more.
Hinada can Provide high quality membrane filtration system and water treatment solution for 8 years with variety industrial application experience, based on modification of polyvinylidene fluoride (PVDF) and polyvinyl chloride (PVC ) membrane technology.
Reliably quality and reasonable price.
Hinada can offer professional solution designation, sophisticated installation, good training and efficient after-sales service according customer’s requirements.
Our vast experience and drive for excellence can be put to use in your facility – quickly and easy.
