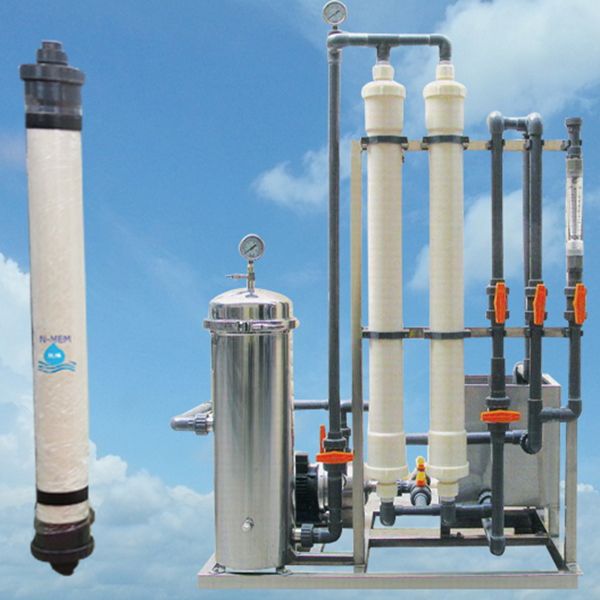

Industrial UF Filtration System
Industrial UF Filtration System
UF Membrane pore size: 0.01um
Energy saving, Back-washable
Low Investment
Good output water quality
High recovery rate around 90%
Description:
The UF System filtration process which utilizes trans-membrane pressure differential to separate particles according to molecular weights. It is used to remove high molecular-weight substances, colloidal materials, and bacteria, organic and inorganic polymeric molecules.
Product Specification
UF System Overview
Industrial UF Systems are pressure-driven membrane filtration plants designed for the removal of suspended solids, colloidal materials, bacteria, viruses, and macromolecular organics from underground water sources. The systems utilize hollow fiber ultrafiltration membranes with a nominal pore size of 0.01 μm, operating via trans-membrane pressure differential to separate particles according to molecular weight.
Core System Components
A standard Industrial UF System package includes the following major components:
| Component | Specification |

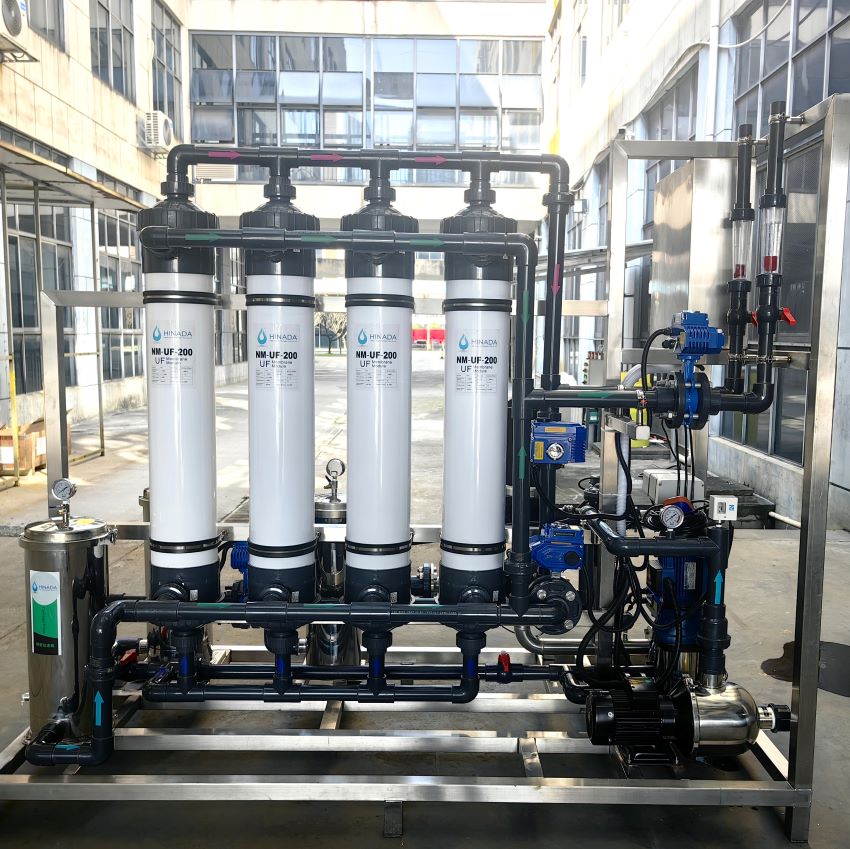

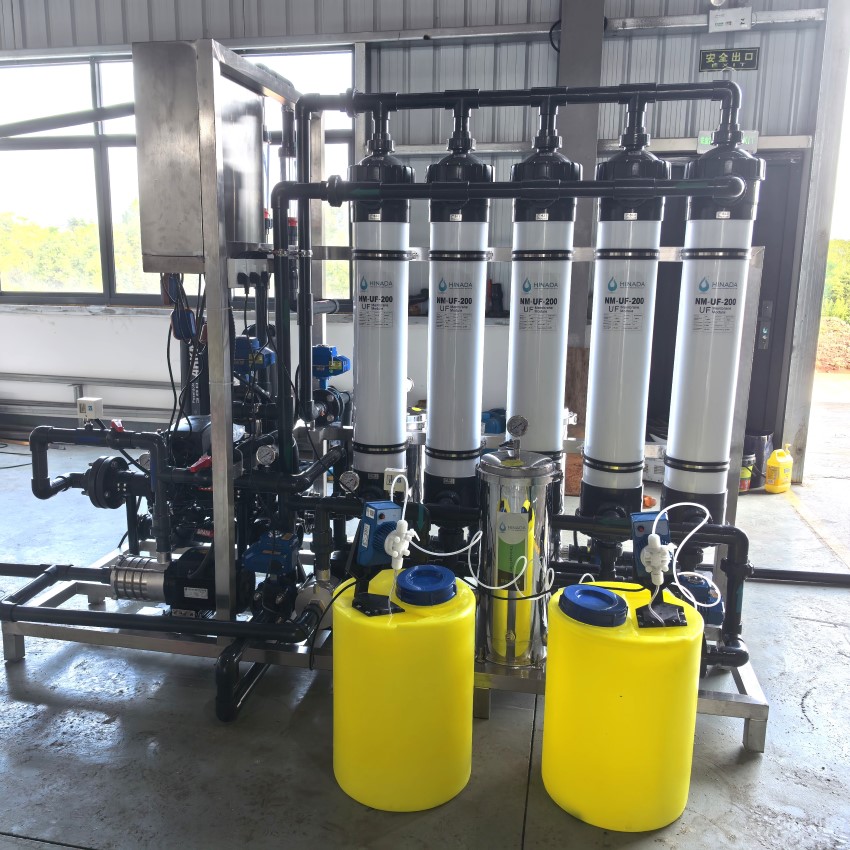

| UF Membrane | PVDF hollow fiber, 8-inch (Model NM-UF-200) or NM-UF-2860 (ø225 × 1860 mm) |
| Electrical Valves | SUS304 electric butterfly valves |
| Control System | Siemens PLC + Touch Screen (HMI) |
| Pipes & Fittings | UPVC, 1.6 MPa pressure rating |
| Skid Frame | 304 stainless steel |
| Precision Filter | 5 μm cartridge filter with SS housing |
| Pumps | Centrifugal Raw water pump + Backwash pump |
| CIP System | Centrifugal pump + PE tank + PP cartridge filter |
| Air Scour | Air blower + 304L SS air scour line |
Operating Parameters
-
Maximum inlet water pressure: 0.45 MPa
-
Maximum trans-membrane pressure differential: 0.2 MPa
-
Applicable pH range: 1–12
-
Recovery ratio: up to 90%

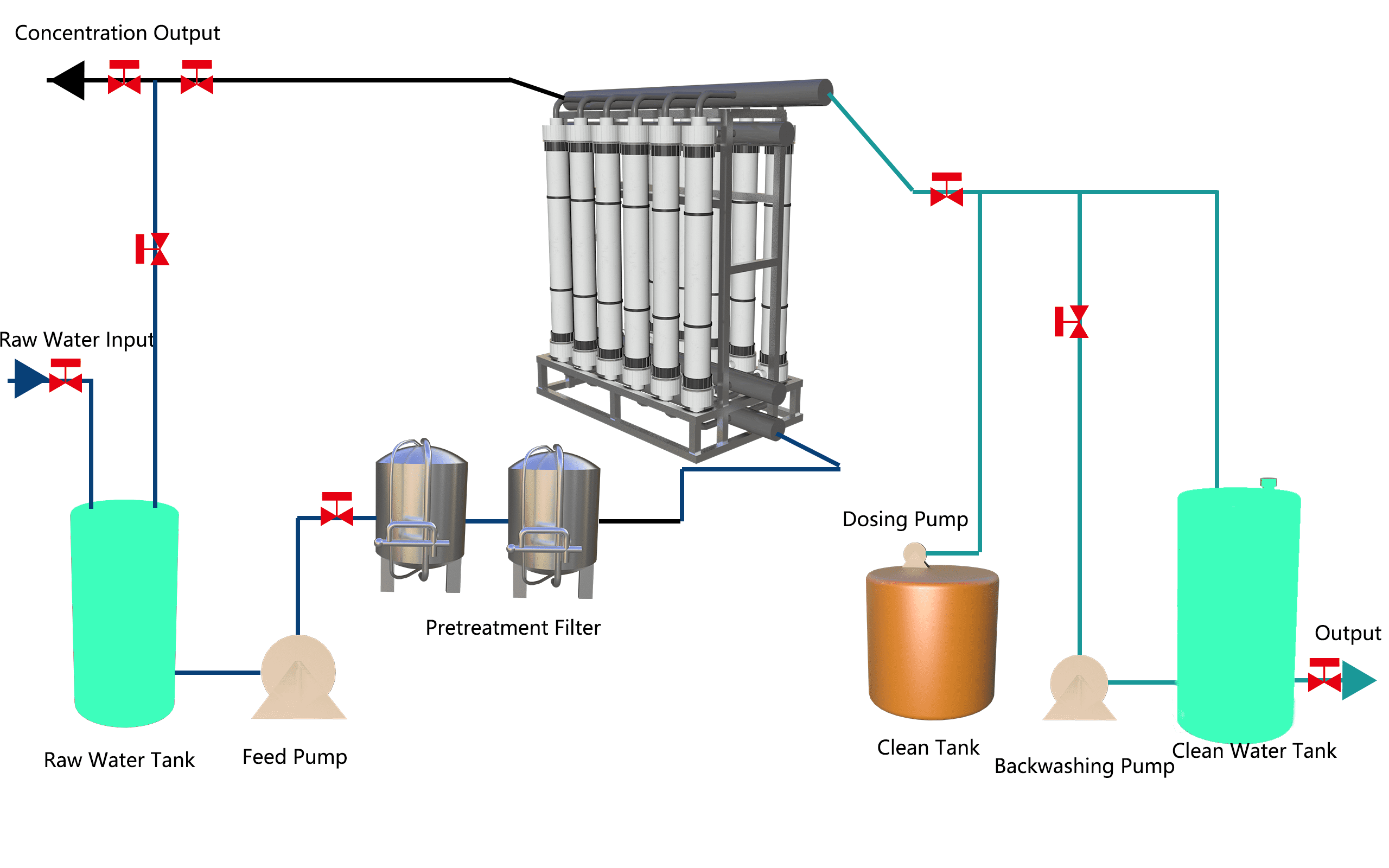

System Operation Modes
The PLC-controlled system automatically cycles through the following operational modes:
-
Filtration — normal permeate production
-
Backwash 1 & 2 — sequential reverse-flow cleaning
-
Chemical Clean (CIP) — periodic deep cleaning using centrifugal pump and PE tank
-
Equipment Flush — post-maintenance rinse
Application
The industrial ultrafiltration systems are widely used in water production corporations, factory or schools as drinking water treatment system. The application including :

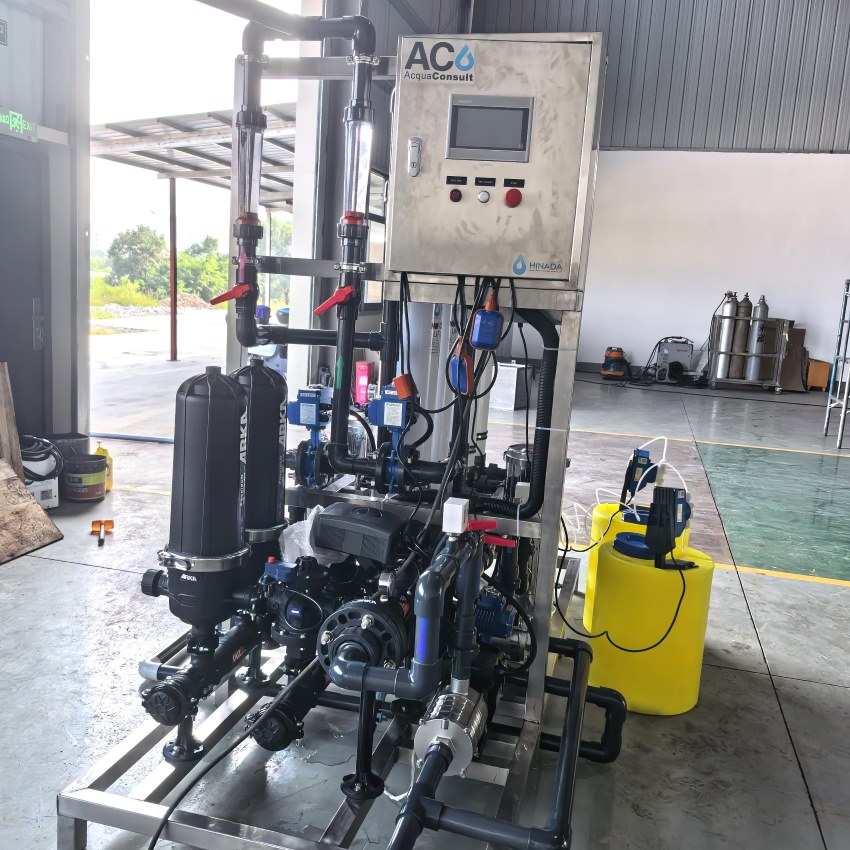

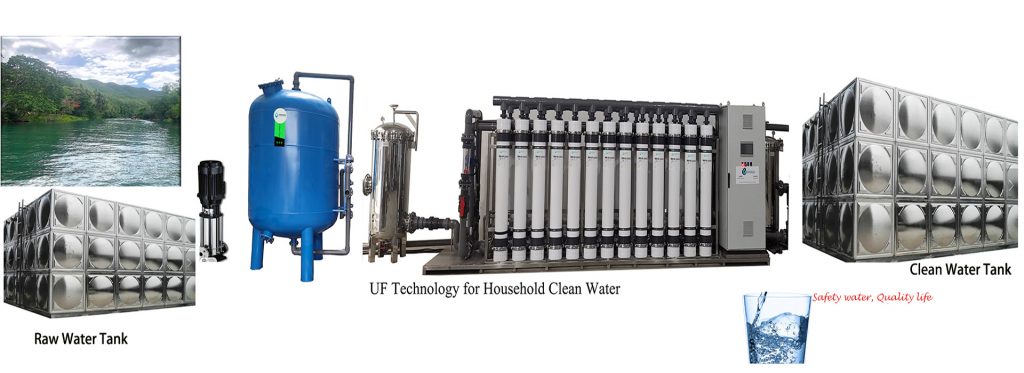

1. Surface | River Water Clarification, underground well water, borewell water, mine water, and subsurface water sources
2. Standalone potable water treatment or RO System Pre-Treatment
3. Waste Water or Sewage Treatment
4. Drinking water treatment
Benifits
* Minimum pumping energy required, thus energy saving
* Chemical resistance, wide PH ranges
* Back-washable
* Easy to operate & maintenance
* Low investment cost
* No contaminant residue caused by chemical reaction
* Recovery ratio up to 98%
Package
Industrial UF Filtration System will be packaged in plywood case or in container .
Our Service
We are the manufacturer of UF Membrane and UF System, we can offer according to your project requirement, Offer installation and commissioning support.
* 10 Years custom ultrafiltration water treatment system designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
* Standard designs according your application, requirement and budget, we are one of leading ultrafiltration system manufacturers in China, we can produce and accept any special requirement orders.
