Hinada Series UF Elements could be used for filtration of various kind of industrial process water, surface water, borewell water, sea water and treated wastewater of ETP and STP system with low to moderate total suspended solids ( TSS ) content (< 50mg/L)

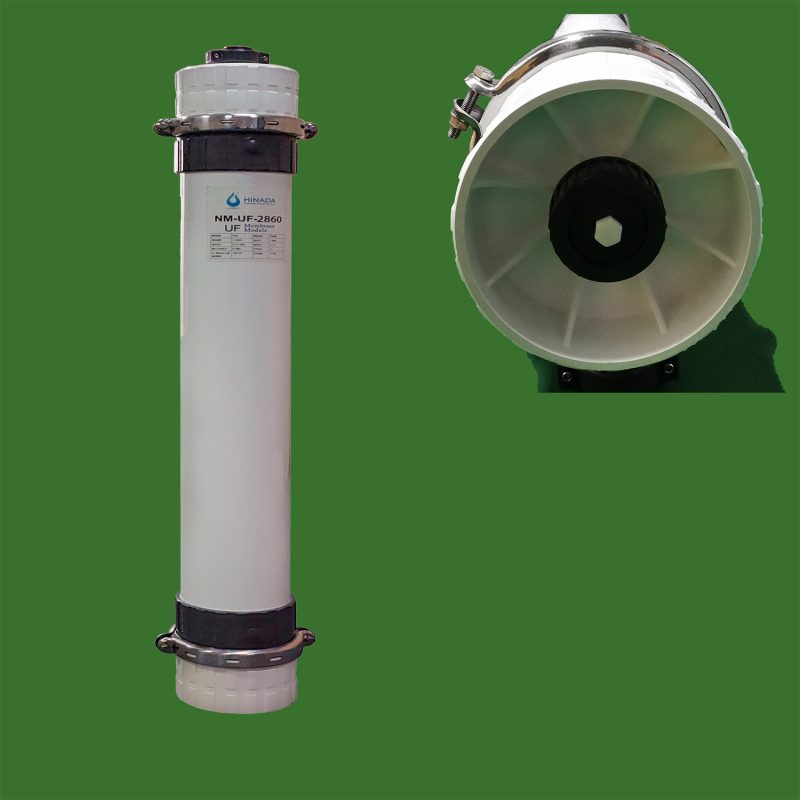

UF Membrane (NM-UF-2860) UF-2860 Ultrafiltration Membrane(9 Inch) Model: NM-UF-2860 Specifications Fiber inner/outer diameter: 0.6 / 1.2mm Effective membrane area: 52m² Dimension: Dia: 225mm; Length: 1860mm Design Flux: 2000-5500L / h Hollow fiber material: PVDF Description: Application Benefits Packaging Our Service UF Video Description PVDF UF Membrane (NM-UF-2860) PVDF UF Membrane (NM-UF-2860 ) is special designed for…
Ultrafiltration Membrane NM-UF-200 Model: NM-UF-200 NM-UF-200 Permeate Water Quality: Suspended Matter >2um, 100% removal Organics: removal 99.99% Turbidity of output water: ≤ 0.2NTU SDI of output clean water: ≤ 2.5 Descriptions: Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will…
Ultrafiltration Membrane (NM-UF-250 ) Ultrafiltration Membrane (NM-UF-250 ) Application: Ideas for project with capacity above 30 m3/hour of river water treatment /city water Permeate Water Quality: Suspended Matter >2um, 100% removal Organics: removal 99.99% Turbidity of output water: ≤ 0.2NTU SDI of output clean water: ≤ 2.5 Description: Ultrafiltration (UF) is a separation process using…
Household Water UF Filter Household UF Filter specifications PVDF material hollow fiber Housing: SUS304, 2.0mm thickness Flow rate:500L/H Area:1.4㎡ Ø108×300mm Application: for city water or surface water filtration Description: Application Benefits Packaging Our Service Description Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically,…
Electrophoresis PaintingNM-90 EUF Membrane [Electrophoretic Paint Membrane] Electrophoresis painting EUF-90 Membrane Specification PP material hollow fiber Electrophoretic Paint Membrane Flow rate:100L/H Area:12㎡ Ø90×1175mm UPVC housing To meets the need of controlling the conductivity balance in the electrophoresis tank. Removal of impurity ions, purification of bath solution, improve coating quality Description Application Benefits Packaging Our Service…
UF Membrane NM-UF-90 UF Membrane NM-UF-90 (4 Inch) Model: NM-UF-90 Permeate Water Quality: Suspended Matter >2um, 100% removal Organics: removal 99.99% Turbidity of output water: ≤ 0.2NTU SDI of output clean water: ≤ 2.5 Descriptions: Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically,…
