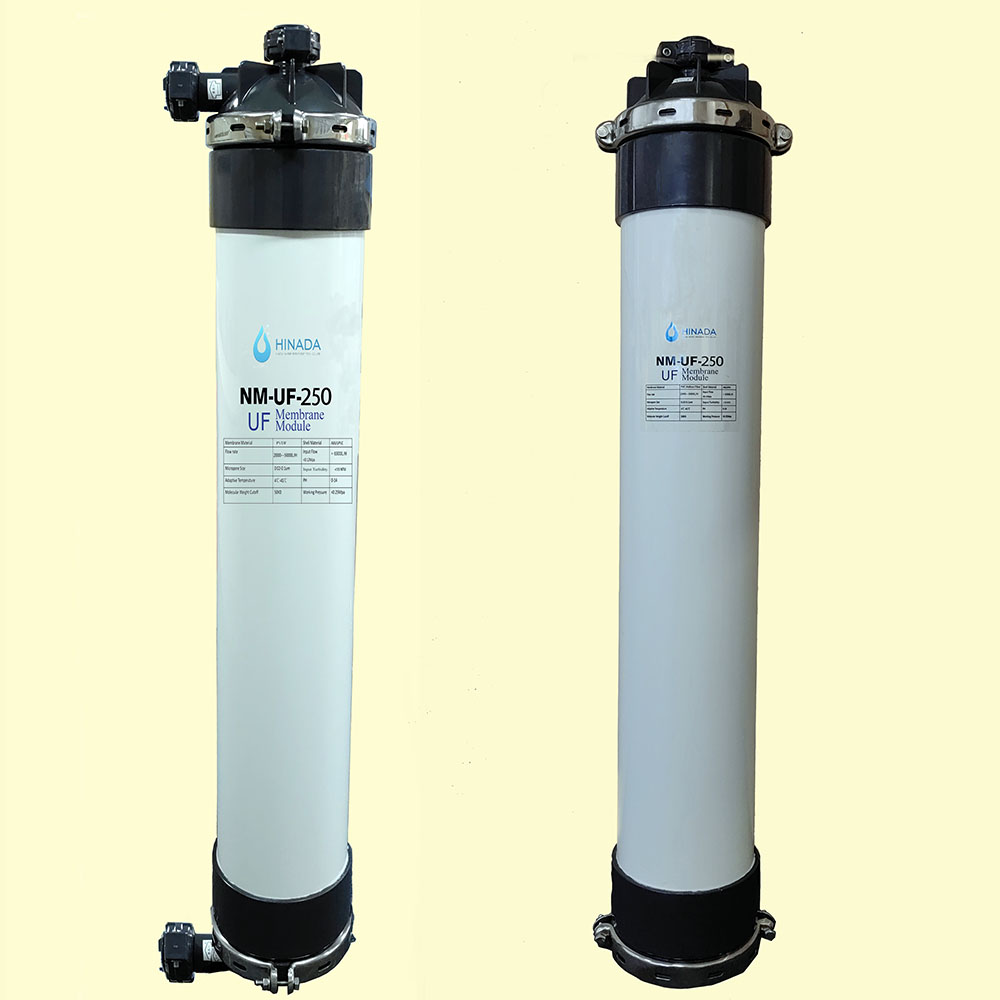

Ultrafiltration Membrane (NM-UF-250 )
Ultrafiltration Membrane (NM-UF-250 )
Application: Ideas for project with capacity above 30 m3/hour of river water treatment /city water
Permeate Water Quality:
Suspended Matter ＞2um, 100% removal
Organics: removal 99.99%
Turbidity of output water: ≤ 0.2NTU
SDI of output clean water: ≤ 2.5
Description:
Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UFmembranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
Ultrafiltration Membrane (NM-UF-250 )
Ultrafiltration (UF) is a pressure-driven purification process that separates particulate matter from soluble compounds using an ultrafine membrane media. Ultrafiltration is an excellent separation technology for desalination pretreatment, reverse osmosis pretreatment, and wastewater reclamation, as well as for producing potable water and clean water.
Hinada, with over 10 years of separation-technology leadership and products in more than 1,000 ultra-filtration equipment installations worldwide, we offer a portfolio of products designed for outstanding membrane separation, extreme productivity and efficiency, and exceptional reliability.
| Membrane Material | PVC | PVDF |
| Inner and outer diameters of hollow-fiber | 0.9mm/1.96mm | 0.6mm/1.2mm |
| Dimensions of membrane module | 250* 1715mm | 250* 1715mm |
| Design flux | 3500—–4500 L/H | 3500—5500 L/H |
| External Shape | Hollow fiber | Hollow fiber |
| Membrane fiber type | Inside-out | Outside-in |
| Area of membrane module | 48 M2 | 78 M2 |
| Applicable temperature | 5 – 45℃ | 5 – 45℃ |
| Molecular Weight Cut-off (MWCO) | 100.000 Daltons | 100.000 Daltons |
| Characteristics of membrane structure | Hydrophilic double-compact layers | Hydrophilic double-compact layers |
Working Conditional:
| Pre – filtration | 50-150 um |
| Max turbidity of inlet water | ≤50 NTU |
| Filtration | Cross-flow filtration or dead-end filtration |
| Max inlet water pressure | 0.40 MPa |
| Max pressure difference of transmembrane | 0.25 MPa |
| Applicable PH range | 2- 13 |
| Tolerable continuous residual chlorine | 100 PPM |
| Tolerable interval residual chlorine | 200 PPM |
| Backwash Interval | Every 15-60min |
| Backwash time | 30-60sec |
| CIP Backwashing | Every 30-90day |
| CIP Chemical | NaClO, NaOH liquid |

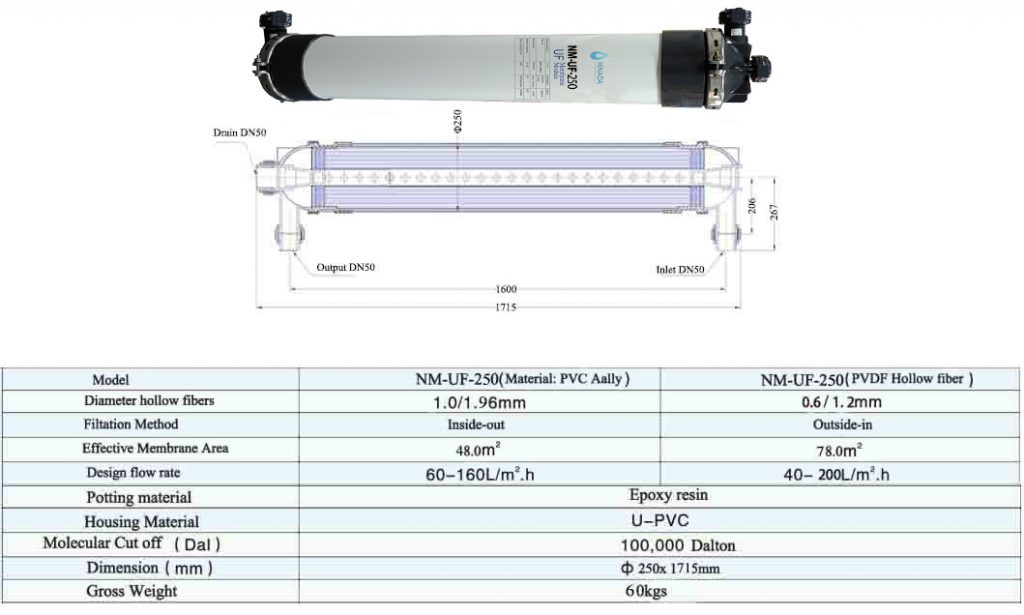

| Model | NM-UF-250(Material: PVC allay) | NM-UF-250 (Material: PVDF) |
| Diameter of Hollow fibers | 1.0/1.96mm | 0.6/1.2mm |
| Filtration Method | Inside-out | Outside-in |
| Effective Membrane Area | 48m² | 78m² |
| Design Flow rate | 60—160L/m².H | 60—160L/m².H |
| Potting Material | Epoxy resine | Epoxy resine |
| Housing Material | U-PVC | U-PVC |
| Molecular Cut off( Dal) | 100,000 Dalton | 100,000 Dalton |
| Dimensions(mm) | ø 250*1715mm | ø 250*1715mm |
| Gross Weight | 60.0kgs | 60.0kgs |
| Feature | Price more reasonable, for clean water filtration that the input turbidty better less than 15NTU. | High anti-pollution and better flow rate, the input burbidty better less than 50NTU. |
10 Inch Ultrafiltration Membrane Production Video in factory
Application
*Industries water purpose: Such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment.
*In drinking water purpose: Ultrafiltration membrane system can be used for the removal of particulates and macro-molecules from raw water to produce potable water.
River water to Drinking Water UF Technology Hinada
*Protein Concentration: UF is used extensively in the dairy industry,fruit juice concentration, pretreatment of RO System.
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.
Ultrafiltration Membrane (NM-UF-250 ) Packaging
Plywood case packaged 1 unit per carton.
Gross weight: 60kgs/ unit
Dimension: 175* 35*40cm
Our Service
We are the manufacturer of UF Membrane, we can offer according to your project requirement offer the solution, and installation, commissioning support..
