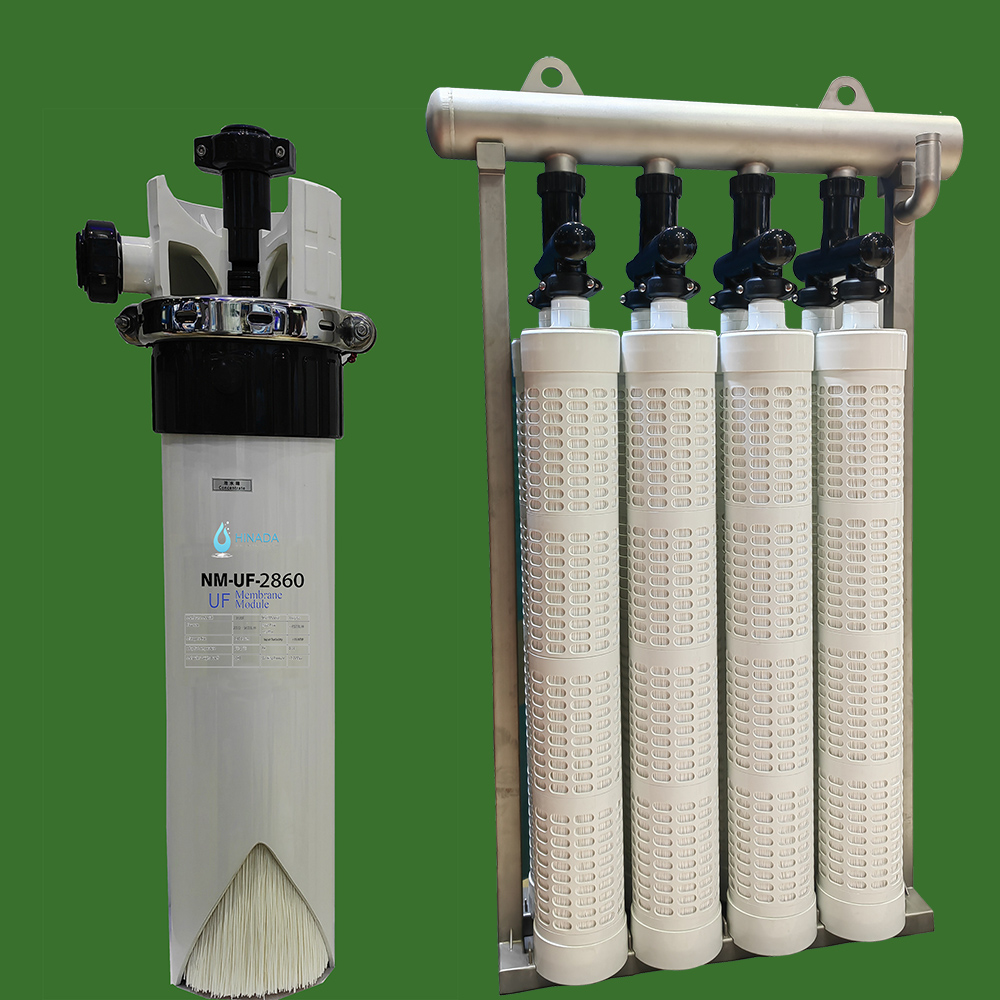

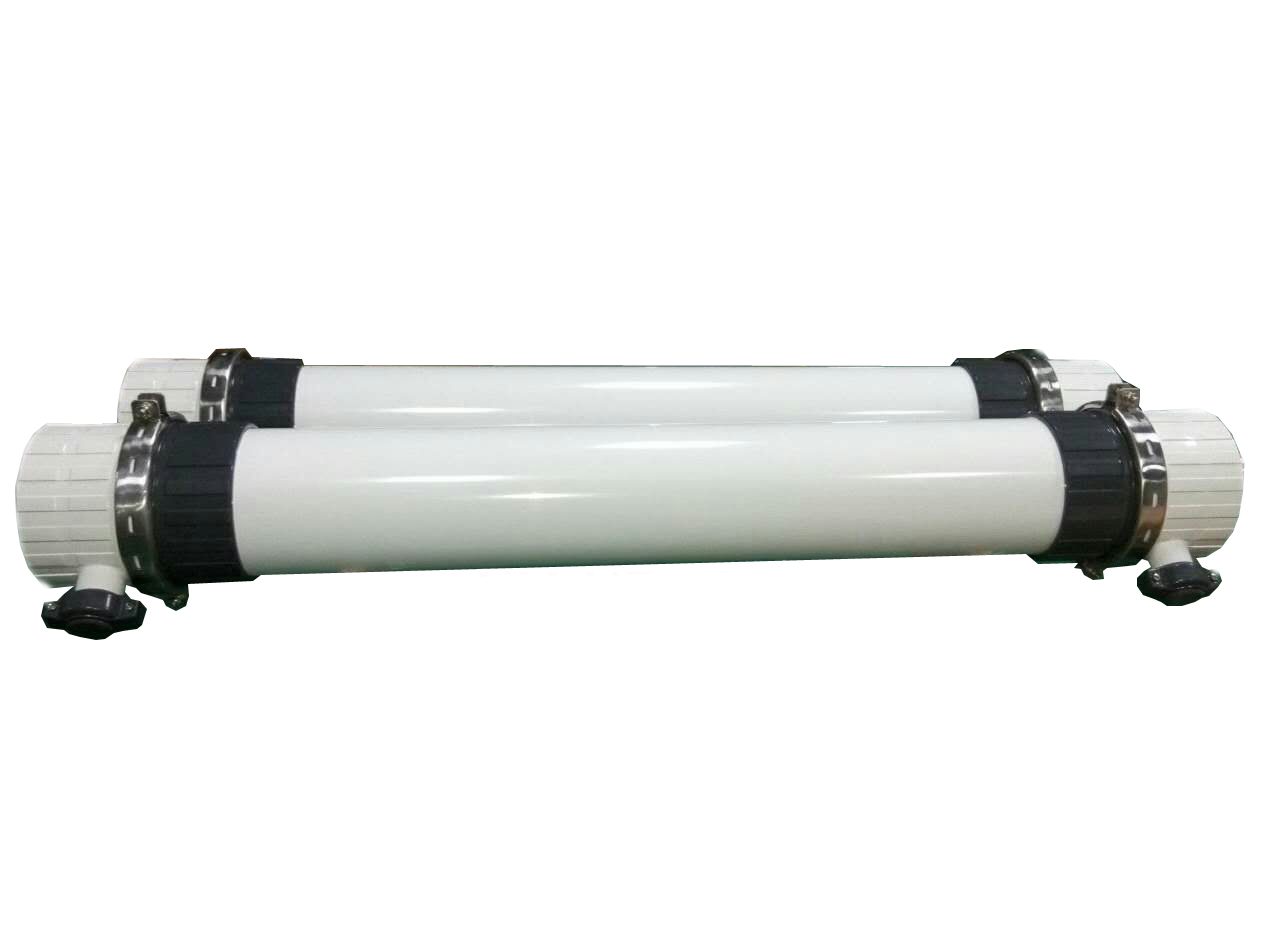

UF Membrane (NM-UF-2860)
UF-2860 Ultrafiltration Membrane(9 Inch)
Model: NM-UF-2860
Specifications
Fiber inner/outer diameter: 0.6 / 1.2mm
Effective membrane area: 52m²
Dimension: Dia: 225mm; Length: 1860mm
Design Flux: 2000-5500L / h
Hollow fiber material: PVDF
Description
PVDF UF Membrane (NM-UF-2860)
PVDF UF Membrane (NM-UF-2860 ) is special designed for industrial big project with capacity above 10 m3/Hour better. it has almost same designation of Dow Filmtec SFP-2860 or SFP-2880.
Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
This module is an ideal choice for systems with capacities greater than 50 m3/hr (220 gpm). The larger, 8 inch diameter module offers the highest effective membrane area of the DOW UF modules, which contributes to a more economical membrane system design. The shorter, 60 inch length module offers higher efficiencies over a wider range of feed water conditions compared to longer length modules.
This PVDF UF Membrane (NM-UF-2860) can be used for a wide variety of treatment applications such as surface water, seawater, industrial wastewaters, and secondary effluent wastewater.
UF System 1000 m3/day as your reference:
Specifications :
|
Model |
Material |
I/O Diameter |
Pore size |
Housing |
Area |
Design flow rate |
| NM-UF-225 | PVDF | 0.6/1.2mm | 0.06um | UPVC | 52m2 | 2000--5500L/H |
|
Pre - filtration |
50-150 um |
|
Max turbidity of inlet water |
≤15 NTU |
|
Filtration |
Cross-flow filtration or dead end filtration |
|
Max inlet water pressure |
0.45 MPa |
|
Max pressure difference of transmembrane |
0.2 MPa |
|
Applicable PH range |
1- 12 |
|
Tolerable continuous residual chlorine |
100 PPM |
|
Tolerable interval residual chlorine |
200 PPM |
Application
* Industries water purpose: such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment
* In drinking water purpose: UF can be used for the removal of particulates and macro-molecules from raw water to produce potable water.
* Protein Concentration : UF is used extensively in the dairy industry,fruit juice concentration, pretreatment of RO System.
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.
Packaging
Paper carton pack.
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System.
- Description:
-
Description
PVDF UF Membrane (NM-UF-2860)
PVDF UF Membrane (NM-UF-2860 ) is special designed for industrial big project with capacity above 10 m3/Hour better. it has almost same designation of Dow Filmtec SFP-2860 or SFP-2880.
Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
This module is an ideal choice for systems with capacities greater than 50 m3/hr (220 gpm). The larger, 8 inch diameter module offers the highest effective membrane area of the DOW UF modules, which contributes to a more economical membrane system design. The shorter, 60 inch length module offers higher efficiencies over a wider range of feed water conditions compared to longer length modules.
This PVDF UF Membrane (NM-UF-2860) can be used for a wide variety of treatment applications such as surface water, seawater, industrial wastewaters, and secondary effluent wastewater.
UF System 1000 m3/day as your reference:
Specifications :
Model
Material
I/O Diameter
Pore size
Housing
Area
Design flow rate
NM-UF-225 PVDF 0.6/1.2mm 0.06um UPVC 52m2 2000--5500L/H Pre - filtration
50-150 um
Max turbidity of inlet water
≤15 NTU
Filtration
Cross-flow filtration or dead end filtration
Max inlet water pressure
0.45 MPa
Max pressure difference of transmembrane
0.2 MPa
Applicable PH range
1- 12
Tolerable continuous residual chlorine
100 PPM
Tolerable interval residual chlorine
200 PPM
- Application
-
Application
* Industries water purpose: such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment
* In drinking water purpose: UF can be used for the removal of particulates and macro-molecules from raw water to produce potable water.
* Protein Concentration : UF is used extensively in the dairy industry,fruit juice concentration, pretreatment of RO System. - Benefits
-
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills. - Packaging
-
Packaging
Paper carton pack.
- Our Service
-
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System. - UF Video
-
Send Inquiry To Us
What is UF Membrane and How Does It Work?
We at Hinada offer Ultrafiltration (UF) is the procedure that uses the UF membrane with a pore size that is generally below 0.1 microns. The smaller pore size is intended to remove colloids & substances which have the larger molecules that are called high-molecular-weight materials. UF membranes can be intended to pass the material that weighs less than & equal to some molecular weight. Moreover, this weight is recognized as the molecular weight cutoff of the membrane. Although UF doesn’t generally work well for the removal of salt & dissolved solids, it can be used efficiently for removal & most organic chemicals. Again often used in the combination with Reverse Osmosis is a very operational pretreatment.
The benefits of ultrafiltration water are discussed below:
- The process doesn’t involve the usage of chemicals that chiefly comprise disinfectants, flocculates, coagulants, & others.
- Simple automated procedure
- The water is preserved in order to remove particles & microbes
- Compact processes
- Deep filtration that includes particle elimination according to the size
It has been found out that ultrafiltration water ensures a better quality of water because it assists to eliminate dissolved contaminates & colloidal particles from water. The procedure is highly scientific & manufacturers producing UF membranes have to fulfill with standards set for manufacturing of same. The membrane contains pores that determine the size and type of the particles to be eliminated from the fluid. Ultrafiltration water is referred to water that is free from dissolved solids. Now, you know why it is measured as a major filtering process. We at Hinada are the top UF membrane manufacturers that offer different types of UF membranes. Ultrafiltration is essentially referred to as the disinfecting technique. Since the past few years, technological advancements have essentially led the membrane procedure to experience major changes & new steps were included to make the filtration more operative.
