Electrophoresis Painting

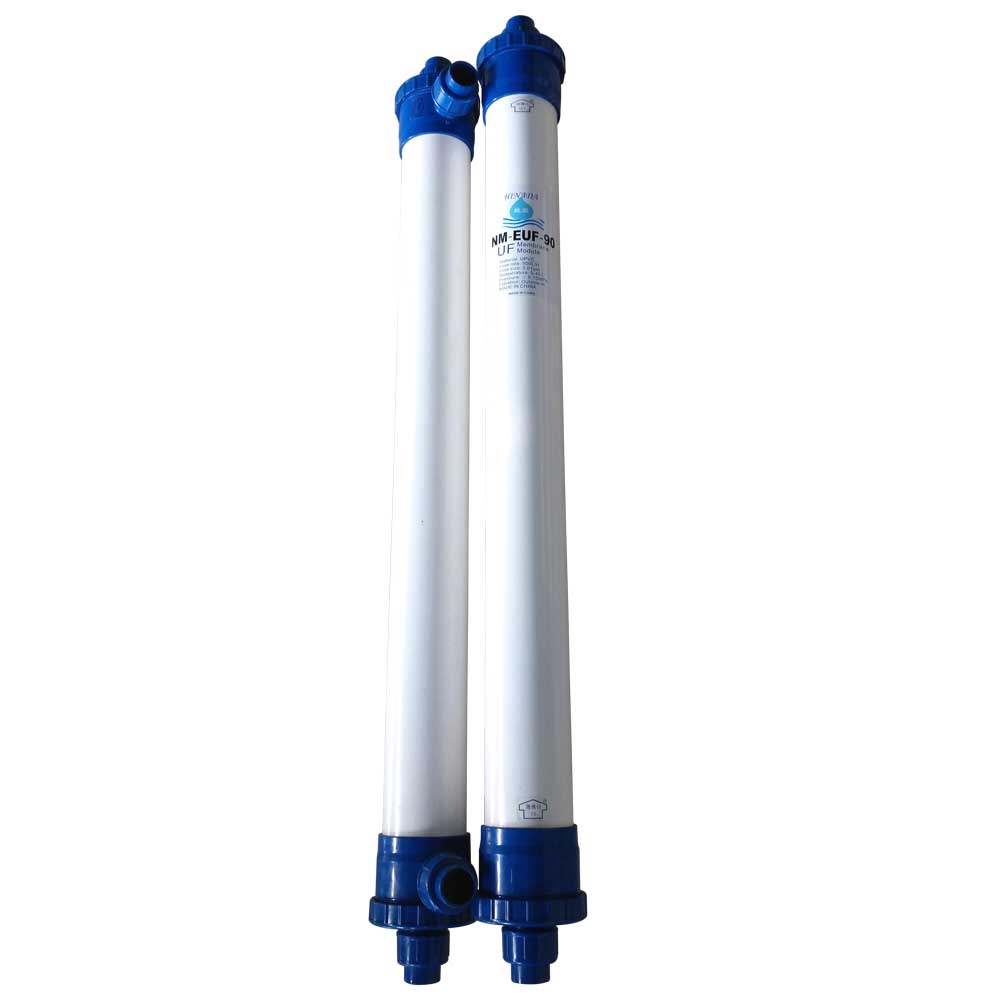

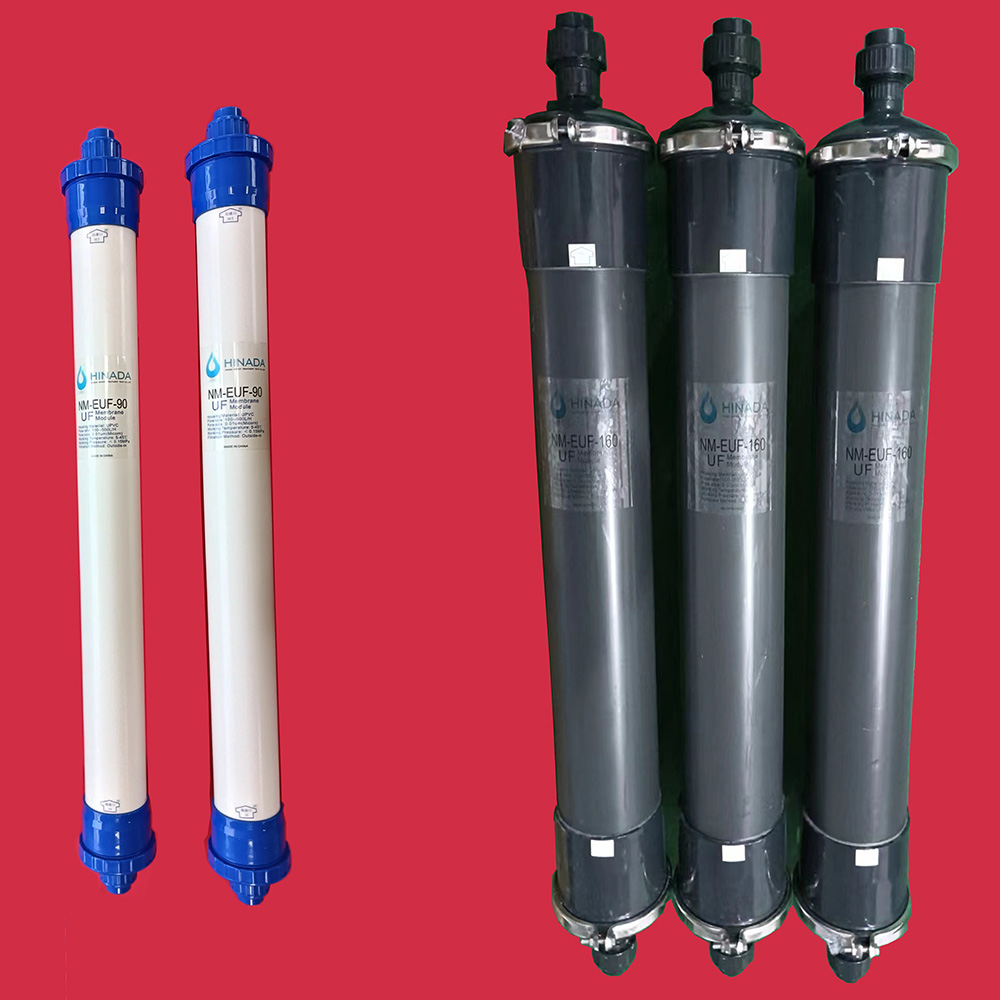

Electrophoresis painting EUF-90 Membrane Specification
PP material hollow fiber
Electrophoretic Paint Membrane
Flow rate:100L/H
Area:12㎡
Ø90×1175mm
UPVC housing
To meets the need of controlling the conductivity balance in the electrophoresis tank. Removal of impurity ions, purification of bath solution, improve coating quality
Description
Electrophoresis painting EUF-90 Membrane, to meet the needs of closed cycle leaching recovery of electrophoretic paint. The electrophoretic paint recovery rate can be more than 98%, which can be used to clean the electrophoretic paint, which can be applied to the coated product. If you do not use the ultrafiltration system, the recovery rate is only 70%-80%.
Pore size |
0.01 um |
Max turbidity of inlet water |
≤100 NTU |
Filtration |
Cross-flow filtration filtration |
Inlet water pressure |
0.1—0.15 MPa |
Filtration Method |
Outside-in |
Design flux |
60—100L/H |
Dia I/O |
0.3/ 0.7mm |
Max pressure difference of transmembrane |
0.1 MPa |
Applicable PH range |
2- 13 |
Tolerable continuous residual chlorine |
100 PPM |
Tolerable interval residual chlorine |
200 PPM |
Backwash Interval |
Every 15-60min |
Backwash time |
30-60sec |
Backwash pressure |
0.12—0.15MPa |
Backwash flow design |
0.8T/H |
CIP Backwashing |
Every 30-90day |
CIP Chemical |
NaClO, NaOH liquid |
Application
The UF System is widely used in water production corporations, factory or schools as drinking water treatment system. The application including :
1. Surface Water Clarification
2. RO System Pre-Treatment
3. Waste Water or Sewage Treatment
We can accord to clients requirement supply the completely mineral water plant with bottle water filling and cover and labelling all in one.
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.
Packaging
Paper carton pack.
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System.
- Description
-
Description
Electrophoresis painting EUF-90 Membrane, to meet the needs of closed cycle leaching recovery of electrophoretic paint. The electrophoretic paint recovery rate can be more than 98%, which can be used to clean the electrophoretic paint, which can be applied to the coated product. If you do not use the ultrafiltration system, the recovery rate is only 70%-80%.
Pore size
0.01 um
Max turbidity of inlet water
≤100 NTU
Filtration
Cross-flow filtration filtration
Inlet water pressure
0.1—0.15 MPa
Filtration Method
Outside-in
Design flux
60—100L/H
Dia I/O
0.3/ 0.7mm
Max pressure difference of transmembrane
0.1 MPa
Applicable PH range
2- 13
Tolerable continuous residual chlorine
100 PPM
Tolerable interval residual chlorine
200 PPM
Backwash Interval
Every 15-60min
Backwash time
30-60sec
Backwash pressure
0.12—0.15MPa
Backwash flow design
0.8T/H
CIP Backwashing
Every 30-90day
CIP Chemical
NaClO, NaOH liquid
- Application
-
Application
The UF System is widely used in water production corporations, factory or schools as drinking water treatment system. The application including :
1. Surface Water Clarification
2. RO System Pre-Treatment
3. Waste Water or Sewage Treatment
We can accord to clients requirement supply the completely mineral water plant with bottle water filling and cover and labelling all in one. - Benefits
-
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills. - Packaging
-
Packaging
Paper carton pack.
- Our Service
-
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System. - UF Video
-
