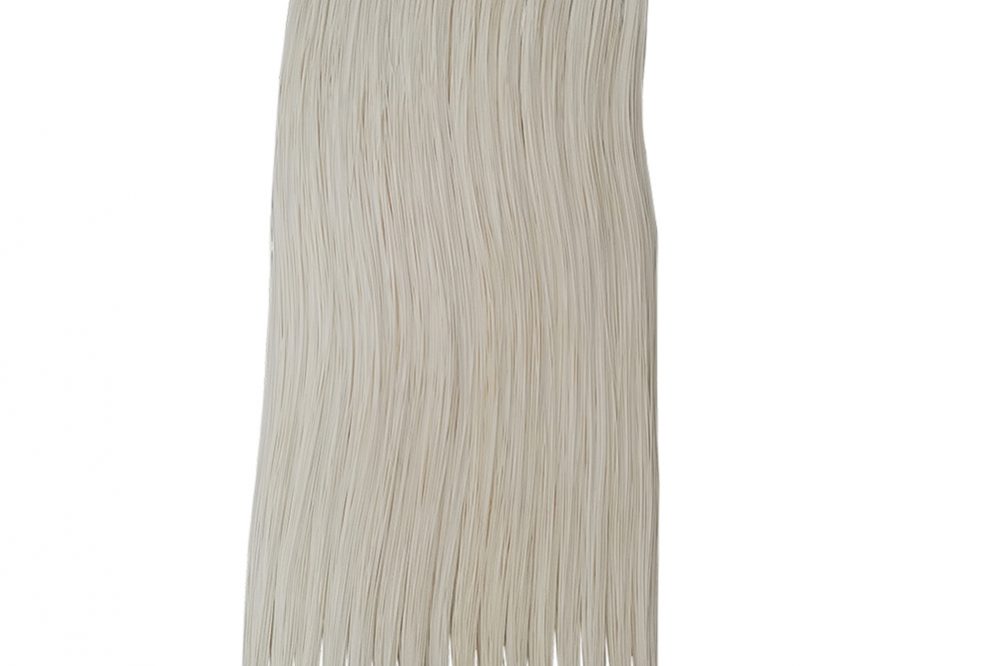

Submerged MBR Membrane NM-RMBR-1520
Submerged MBR Membrane NM-RMBR-1520
Model: NM-RMBR-1520
Size (LxWxH, mm): 571 × 45 ×1535
Membrane area (m2): 20
Hollow fibers inside and outside diameter (mm): 1.0 / 2.2
Design Flux (L / h): 200-500
Working pressure (KPa): 10-50
Operating temperature (° C): 5-45
Work PH: 1-10
Hollow fibers: reinforced PVDF
Description:
Membrane bioreactor (MBR) is the combination of a membrane process like microfiltration or ultrafiltration with a suspended growth bioreactor, and is now widely used for municipal and industrial wastewater treatment
Submerged MBR Membrane NM-RMBR-1520 Specification:
| Type | NM-RMBR-1520 | |
| Membrane | Nominal pore size (μm) | 0.06 Micron (Average) |
| Material | PVDF, PET non-woven fabric and ABS resin | |
| Membrane area per element (m2) | 20 m2 | |
| Membrane Element dimension | Height: 1535mm | |
| Wide: 571mm | ||
| Thickness: 45mm | ||
| Filtration Method | Suction /Outside-in | |
| Hollow fibers I /O diameter | 1.0 /2.2 mm | |
| Design flow rate | 200—600 Liters/ Hour (Sewage design 300 L/H) | |
| Air diffuser | Fine bubble, tube type, EPDM rubber | |
| Recommended usage | Medium and large capacity plants (>200 m3/d) Municipal & industrial wastewater | |
Futher technical data or information please do contact with us!
Application
MBR Membrane is widely use for industrial and sewage waste water treatment. Reduced footprint, usually 30-50% smaller than an equivalent conventional active sludge facility with secondary clarifiers and media tertiary filtration. The process also produces exceptional effluent quality capable of meeting the most stringent water quality requirements, a modular schematic that allows for ease of expansion and configuration flexibility, a robust and reliable operation and reduced downstream disinfection requirements.
Benifits
* Lower energy costs, reinforced hollow fibers
* High quality effluent
* Lower footprint ( space)
* High flow rate, easy cleaning and operation
Packaging
Paper carton pack.
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System.
- Specifications
Submerged MBR Membrane NM-RMBR-1520 Specification:
Type NM-RMBR-1520 Membrane Nominal pore size (μm) 0.06 Micron (Average) Material PVDF, PET non-woven fabric and ABS resin Membrane area per element (m2) 20 m2 Membrane Element dimension Height: 1535mm Wide: 571mm Thickness: 45mm Filtration Method Suction /Outside-in Hollow fibers I /O diameter 1.0 /2.2 mm Design flow rate 200—600 Liters/ Hour (Sewage design 300 L/H)
Air diffuser Fine bubble, tube type, EPDM rubber
Recommended usage Medium and large capacity plants (>200 m3/d) Municipal & industrial wastewater Futher technical data or information please do contact with us!
- Application
Application
MBR Membrane is widely use for industrial and sewage waste water treatment. Reduced footprint, usually 30-50% smaller than an equivalent conventional active sludge facility with secondary clarifiers and media tertiary filtration. The process also produces exceptional effluent quality capable of meeting the most stringent water quality requirements, a modular schematic that allows for ease of expansion and configuration flexibility, a robust and reliable operation and reduced downstream disinfection requirements.
- Benefits
Benifits
* Lower energy costs, reinforced hollow fibers
* High quality effluent
* Lower footprint ( space)
* High flow rate, easy cleaning and operation- Packaging
Packaging
Paper carton pack.
- Our Service
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System.- MBR Video
