Submerged Membrane Bioreactor
Hinada Top Brand and Quality MBR Membrane, with 3 years warranty.
Submerged Membrane Bioreactor Quotation for your project please contact with us

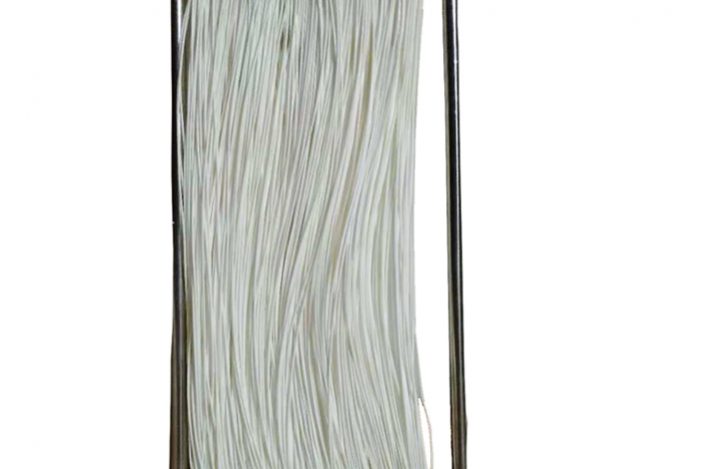

Membrane Element
Model: NM-RMBR-1520
specifications
Size (LxWxH, mm): 571 × 45 ×1535 (the length can be customized)
Membrane area (m2): 20
Hollow fibers inside and outside diameter (mm): 1.0 / 2.2
Design Flux (L / h): 20-50
Working pressure (KPa): 10-50
Operating temperature (° C): 5-45
Work PH: 1-10
Hollow fibers: reinforced PVDF
Technical Data Description
What is a Membrane Bioreactor (MBR)?
A Membrane Bioreactor (MBR) is a advanced wastewater treatment technology that combines two processes:
-
Biological treatment – using microorganisms (activated sludge) to break down organic pollutants and nutrients.
-
Membrane filtration – using porous membranes (typically hollow fiber or flat sheet) to physically separate treated water from the biomass.

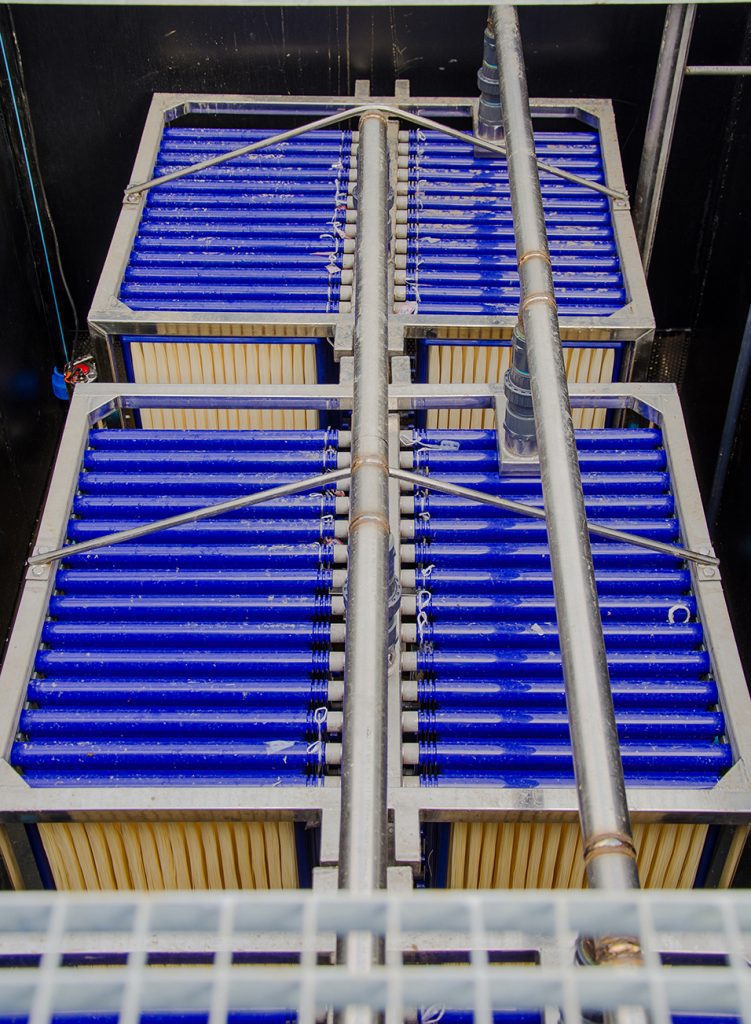

In an MBR, the membranes are submerged in the biological reactor or placed in a separate tank. They replace the conventional secondary clarifier used in traditional activated sludge systems.
MBR is a highly efficient, compact technology that produces excellent effluent quality suitable for reuse. While it has higher costs and energy demands compared to conventional methods, the benefits often outweigh the drawbacks in situations with strict discharge standards or water scarcity.
| Material | Reinforce PVDF hollow fiber(PET+PVDF) |
| I/O diameter | 1.0/2.1mm |
| Operation Mode | Outside-in |
| Water Permeability | 10—25 L/m2. h |
| Operating Temperature | 5℃-45℃ |
| PH | 2-11 |
| Pore Size | 0.06um (Micron) |
| Operating pressure | <0.4MPa |
| Turbidity of output water | Less than 0.5 NTU |
| Filtration Method | Suction |
| Max TMP | 60 kPa |
| Backwash Flux | 30—50L/ m2. h |
| Max Backwash pressure | 70 kPa |

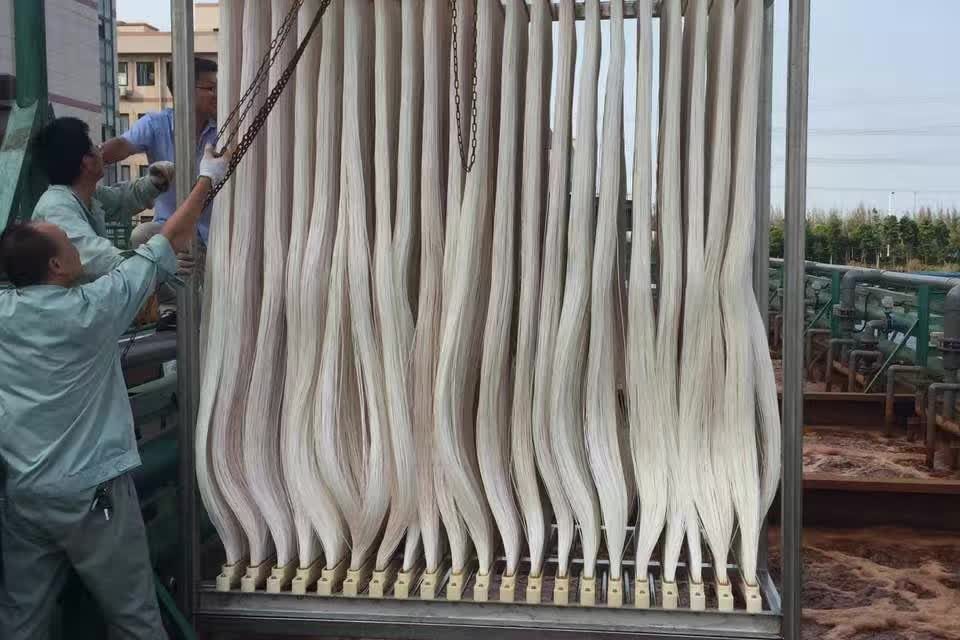

Submerged MBR Membrane (Membrane Bioreactor)
Model: NM-RMBR-1520
specifications
Size (LxWxH, mm): 571 × 45 ×1530
Membrane area (m2): 20
Hollow fibers inside and outside diameter (mm): 1.0 / 2.2
Design Flux (L / h): 20-50
Working pressure (KPa): 10-50
Operating temperature (° C): 5-45
Work PH: 1-10
Hollow fibers: reinforced PVDF
Hinada can Provide high quality membrane filtration system and water treatment solution for 8 years with variety industrial application experience, based on modification of polyvinylidene fluoride (PVDF) and polyvinyl chloride (PVC ) membrane technology
Application
This Submerged Membrane Bioreactor manufacturer supply they products to industrial and sewage waste water treatment .
Benifits
* Lower energy costs
* High quality effluent and stable output water quality
* Lower footprint ( space)
* High flow rate, easy cleaning and operation.
* Less Maintenance

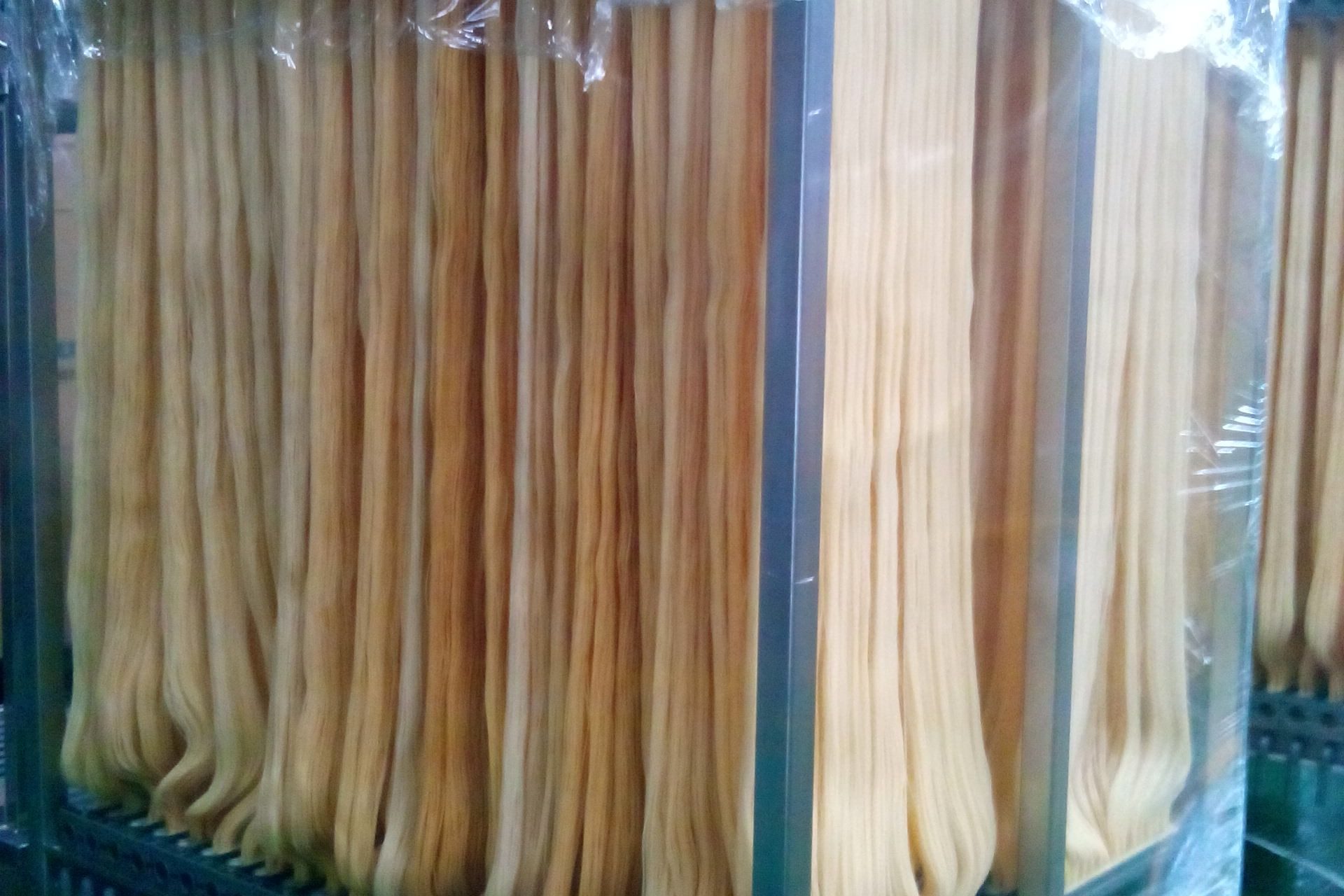

Submerged Membrane Bioreactor manufacturer Products Package
Plywood case or carton packed according to the project
Our Service
We are the manufacturer of MBR Membrane, we can offer according to your project requirement, Hinada can offer professional solution designation, sophisticated installation, good training and efficient after-sales service according customer’s requirements
- Description:
-
Technical Data Description
What is a Membrane Bioreactor (MBR)?
A Membrane Bioreactor (MBR) is a advanced wastewater treatment technology that combines two processes:
-
Biological treatment – using microorganisms (activated sludge) to break down organic pollutants and nutrients.
-
Membrane filtration – using porous membranes (typically hollow fiber or flat sheet) to physically separate treated water from the biomass.
In an MBR, the membranes are submerged in the biological reactor or placed in a separate tank. They replace the conventional secondary clarifier used in traditional activated sludge systems.
MBR is a highly efficient, compact technology that produces excellent effluent quality suitable for reuse. While it has higher costs and energy demands compared to conventional methods, the benefits often outweigh the drawbacks in situations with strict discharge standards or water scarcity.
Material Reinforce PVDF hollow fiber(PET+PVDF) I/O diameter 1.0/2.1mm Operation Mode Outside-in Water Permeability 10—25 L/m2. h Operating Temperature 5℃-45℃ PH 2-11 Pore Size 0.06um (Micron) Operating pressure <0.4MPa Turbidity of output water Less than 0.5 NTU Filtration Method Suction Max TMP 60 kPa Backwash Flux 30—50L/ m2. h Max Backwash pressure 70 kPa Submerged MBR Membrane (Membrane Bioreactor)
Model: NM-RMBR-1520
specifications
Size (LxWxH, mm): 571 × 45 ×1530
Membrane area (m2): 20
Hollow fibers inside and outside diameter (mm): 1.0 / 2.2
Design Flux (L / h): 20-50
Working pressure (KPa): 10-50
Operating temperature (° C): 5-45
Work PH: 1-10
Hollow fibers: reinforced PVDFHinada can Provide high quality membrane filtration system and water treatment solution for 8 years with variety industrial application experience, based on modification of polyvinylidene fluoride (PVDF) and polyvinyl chloride (PVC ) membrane technology
-
- Application
-
Application
This Submerged Membrane Bioreactor manufacturer supply they products to industrial and sewage waste water treatment .
- Benefits
-
Benifits
* Lower energy costs
* High quality effluent and stable output water quality
* Lower footprint ( space)
* High flow rate, easy cleaning and operation.
* Less Maintenance - Package
-
Submerged Membrane Bioreactor manufacturer Products Package
Plywood case or carton packed according to the project
- Our Service
-
Our Service
We are the manufacturer of MBR Membrane, we can offer according to your project requirement, Hinada can offer professional solution designation, sophisticated installation, good training and efficient after-sales service according customer’s requirements
