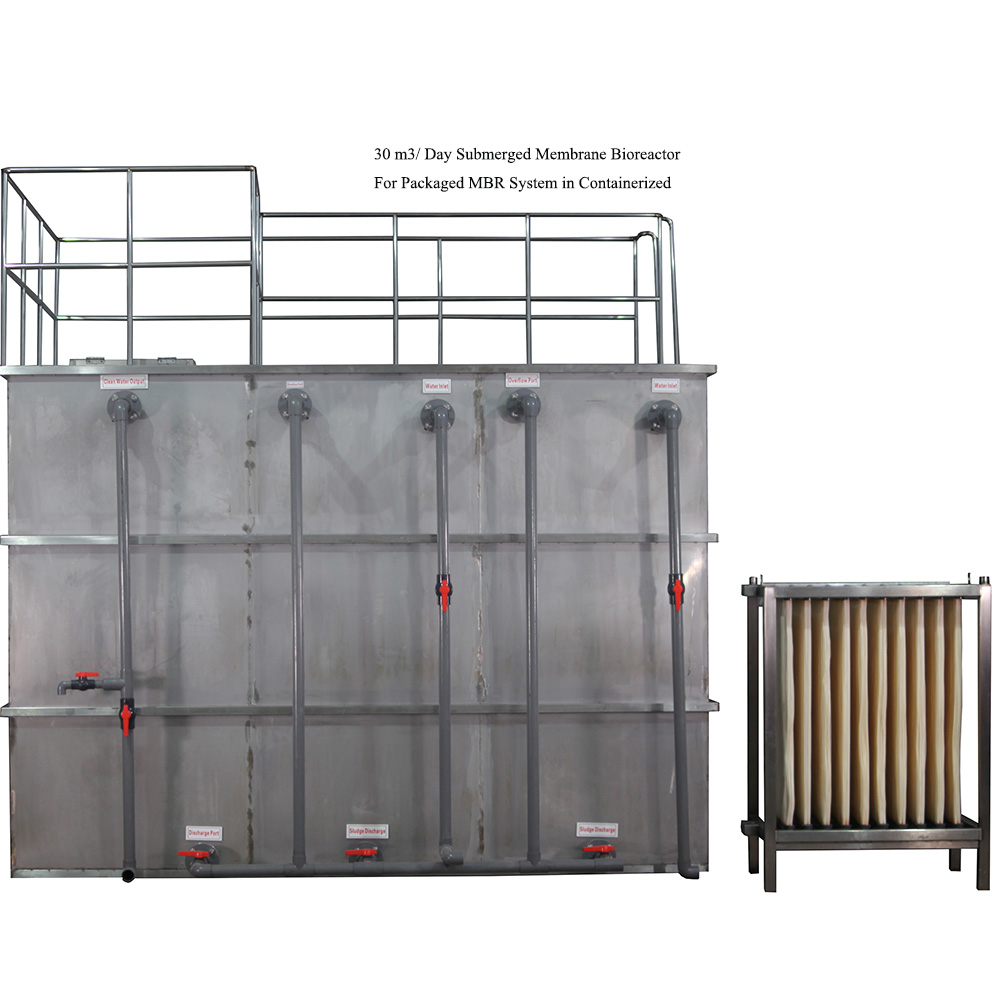

30 m3/ Day Submerged Membrane Bioreactor
Submerged Membrane Bioreactor for Packaged MBR System in Containerized
Model: NM-MBR-30KLPD
Specifications
Project capacity: 30 m3/ Day
Effective membrane area: 100m²
Hollow fiber material: PVDF
Membrane Element : 10 units
MBR Modular Dimension: 965x640x1380mm
Description
MBR Modular for Industry wastewater or Sewage Treatment， ideal for small project with capacity around 30m3/ Day, Packaged in containerized MBR System for wastewater treatment, the MBR Tank height around 2m, the MBR Membrane is Interval working, 7 minutes working 1-minute stop.
Capacity Design as :30 m3/ Day , 24 hours working per day.
- MBR Working Conditions
| Item | Specification |
| Working Temperature | 5—45℃ |
| PH | 5–8 |
| Input SS | ≤ 2mm |
| Oil Grease | <5mg/L |
| Hard (CaCO3 mg/l) | Too much CaCO3 will harden the Hollow fibers. |

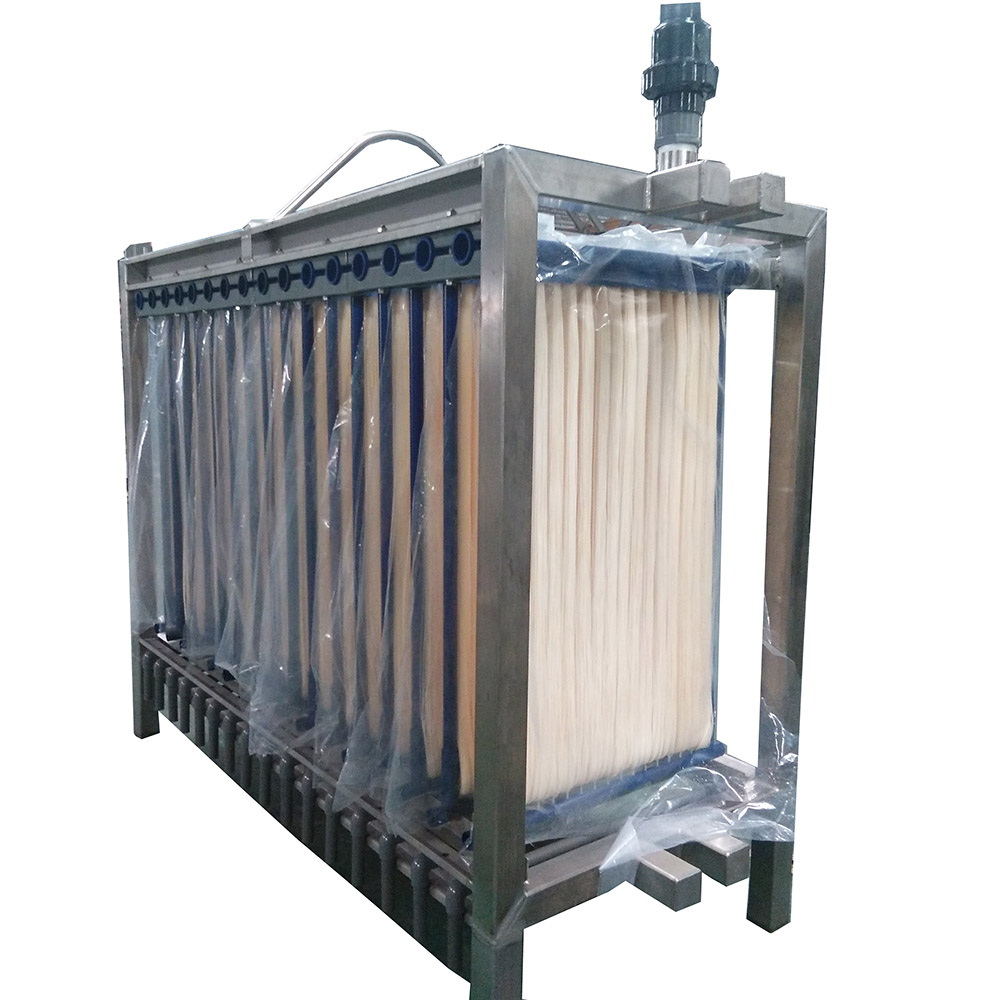

2. MBR Element
| MBR model | NM-RMBR-1010 |
| Area for each unit | 10 ㎡ |
| Total Membrane Area | 100㎡ |
| Modular Quantity | 10 sets (Each set with 100㎡ membrane area) |
| Design flow rate | 15.0 L/㎡. H |
| Each Modular flow rate | 1.5 m3/H |
| Rock dimension | 965x640x1350mm |
3.MBR Element Air Stirring Quantity as reference.
| Air Volume for each element | 3 Nm3/H |
| Volume for 1 Module | 20 Nm3/H |
| Working time | 7 minutes |
| Stop time | 1 minute |
4. PVDF Hollow Fiber Specification:
| Material | PVDF hollow fiber |
| Model | NM-RMBR-1010 |
| I/O diameter | 1.0/2.2mm |
| Implosion pressure | Above 2 bar |
| Burst Pressure | Above 4 bar |
| Water Permeability | 10—25 L/m2. h |
| Operating Temperature | 5℃-45℃ |
| PH | 2-12 |
| Operating pressure | <0.4MPa |
| Turbidity of output water | Less than 0.2 NTU |
| Filtration Method | Suction |
| Pore Size | 0.01—0.4um (Micron) |
Permeate Water Quality:
Suspended Matter ＞2um, 100% removal
Organics: removal 99.99%
Turbidity of output water: ≤ 0.2NTU
SDI of output clean water: ≤ 2.5
Submerged MBR Membrane in Packaged MBR System moveable containerized.
Application
This Submerged Membrane Bioreactor manufacturer supply they products to industrial and sewage waste water treatment
Benifits
- Lower energy costs
- High quality effluent and stable output water quality
- Lower footprint ( space)
- High flow rate, easy cleaning and operation.
- Less Maintenance
Packaging
Plywood Case packaged.
Our Service
We are the manufacturer of MBR Membrane, we can offer according to your project requirement, Hinada can offer professional solution designation, sophisticated installation, good training and efficient after-sales service according customer’s requirements
