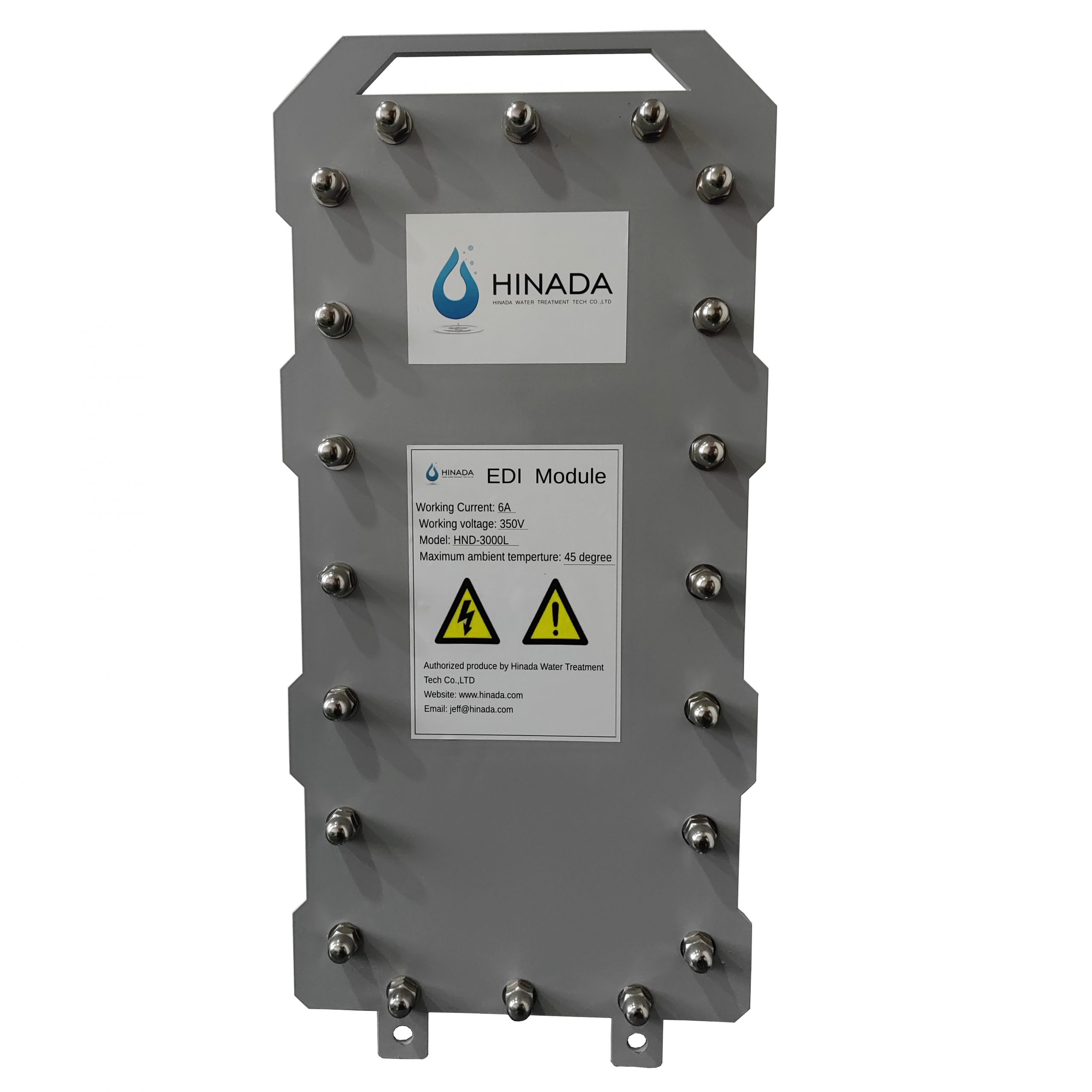

3000LPH EDI Module Electrodeionization System for pure water
This EDI Modular with capacity of 3000LPH is a continuous, chemical-free process of removing ionized and ionizable species from feedwater using DC Power to provide ultrapure water that the resisitivity above 15 MΩ.cm, apply for pharmaceutical , biotechnology, electronic conductor industries and so on. EDI is typically used to polish reverse Osmosis (RO ) permeate, and is a smart alternative to- and effective replacement of- conventional mixed bed ion exchange(IX).
Product Specification
3000LPH EDI Module Electrodeionization System for pure water
This EDI Modular with capacity of 3000LPH is a continuous, chemical-free process of removing ionized and ionizable species from feedwater using DC Power to provide ultrapure water that the resisitivity above 15 MΩ.cm, apply for pharmaceutical , biotechnology, electronic conductor industries and so on. EDI is typically used to polish reverse Osmosis (RO ) permeate, and is a smart alternative to- and effective replacement of- conventional mixed bed ion exchange(IX).
EDI Stacks Specification
| Type | HND-500L | HND-1000L | HND-3000L | HND-5000L |
| Nominal flow rate(m3/h) | 0.5 | 1.0 | 3.0 | 1.5 |
| Recovery rates (%) | 75-85 | 85-95 | 90-95 | 90-95 |
| Resistivity(MΩ .cm) | ≥15 | ≥15 | ≥15 | ≥15 |
| Working voltage Range(VDC) | 18-50 | 25-70 | 50-150 | 70–250 |
| Working current (ADC) | 2.5-3.2 | 2.5-3.2 | 2.5-3.2 | 2.5-3.2 |
| Working Pressure(MPa) | 0.15-0.4 | 0.15-0.4 | 0.15-0.4 | 0.15-0.4 |
| Maximum pressure(MPa) | 0.4 | 0.4 | 0.4 | 0.4 |
| Clean Water Input /Output Port | DN25 | DN25 | DN25 | DN25 |
| Concentrated input/ Outlet Port | DN20 | DN20 | DN20 | DN20 |
| Dimensions (Width x height x depth) | 315x685x145mm | 315x685x209mm | 315x685x377mm | 315x685x515mm |
| Shipping weight | 50kgs | 63kgs | 90kgs | 136kgs |
EDI System Feed Water Specifications:
EDI Modular treatment Process:
The EDI Modular has many advantages:
* Remove expensive and hazardous chemicals used in ion-exchange resin regeneration
* Save energy and operating cost
* Low facility size requirement
Typical Applications
The product water from EDI in applications such as:
* Water for injection
* Pharmaceutical purified water
* Laboratory purified water systems
* Biotechnology industries
* electronic conductor industries and so on
Benifits
Electrodeionization (EDI) is a continuous, chemical-free process of removing ionized and ionizable species from feedwater using DC power to provide ultrapure water for the pharmaceutical and biotechnology industries. EDI is typically used to polish reverse osmosis (RO) permeate at recovery rate above 90%, the EDI permeate Resistivity can be around 17.52 Ω (omega), and is a smart alternative to — and effective replacement of — conventional mixed bed ion exchange (IX)
* 10 Years custom EDI Module and EDI water treatment system designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
* Standard designs according your application, requirement and budget, we are one of leading EDI system manufacturers in China, we can produce and accept any special requirement orders.
Packaging
Plywood case packed or in container loading.
Our Service
We are the manufacturer of EDI Module and EDI Package Water System, we can offer according to your project requirement.
Offer installation and commissioning support.
- Specifications
Product Specification
3000LPH EDI Module Electrodeionization System for pure water
This EDI Modular with capacity of 3000LPH is a continuous, chemical-free process of removing ionized and ionizable species from feedwater using DC Power to provide ultrapure water that the resisitivity above 15 MΩ.cm, apply for pharmaceutical , biotechnology, electronic conductor industries and so on. EDI is typically used to polish reverse Osmosis (RO ) permeate, and is a smart alternative to- and effective replacement of- conventional mixed bed ion exchange(IX).
EDI Stacks Specification
Type HND-500L HND-1000L HND-3000L HND-5000L Nominal flow rate(m3/h) 0.5 1.0 3.0 1.5 Recovery rates (%) 75-85 85-95 90-95 90-95 Resistivity(MΩ .cm) ≥15 ≥15 ≥15 ≥15 Working voltage Range(VDC) 18-50 25-70 50-150 70–250 Working current (ADC) 2.5-3.2 2.5-3.2 2.5-3.2 2.5-3.2 Working Pressure(MPa) 0.15-0.4 0.15-0.4 0.15-0.4 0.15-0.4 Maximum pressure(MPa) 0.4 0.4 0.4 0.4 Clean Water Input /Output Port DN25 DN25 DN25 DN25 Concentrated input/ Outlet Port DN20 DN20 DN20 DN20 Dimensions
(Width x height x depth)315x685x145mm 315x685x209mm 315x685x377mm 315x685x515mm Shipping weight 50kgs 63kgs 90kgs 136kgs EDI System Feed Water Specifications:
EDI Modular treatment Process:
The EDI Modular has many advantages:
* Remove expensive and hazardous chemicals used in ion-exchange resin regeneration
* Save energy and operating cost
* Low facility size requirement
- Application
Typical Applications
The product water from EDI in applications such as:
* Water for injection
* Pharmaceutical purified water
* Laboratory purified water systems
* Biotechnology industries
* electronic conductor industries and so on
- Benefits
Benifits
Electrodeionization (EDI) is a continuous, chemical-free process of removing ionized and ionizable species from feedwater using DC power to provide ultrapure water for the pharmaceutical and biotechnology industries. EDI is typically used to polish reverse osmosis (RO) permeate at recovery rate above 90%, the EDI permeate Resistivity can be around 17.52 Ω (omega), and is a smart alternative to — and effective replacement of — conventional mixed bed ion exchange (IX)
* 10 Years custom EDI Module and EDI water treatment system designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
* Standard designs according your application, requirement and budget, we are one of leading EDI system manufacturers in China, we can produce and accept any special requirement orders.- Packaging
Packaging
Plywood case packed or in container loading.
- Our Service
Our Service
We are the manufacturer of EDI Module and EDI Package Water System, we can offer according to your project requirement.
Offer installation and commissioning support.- EDI Module Video
