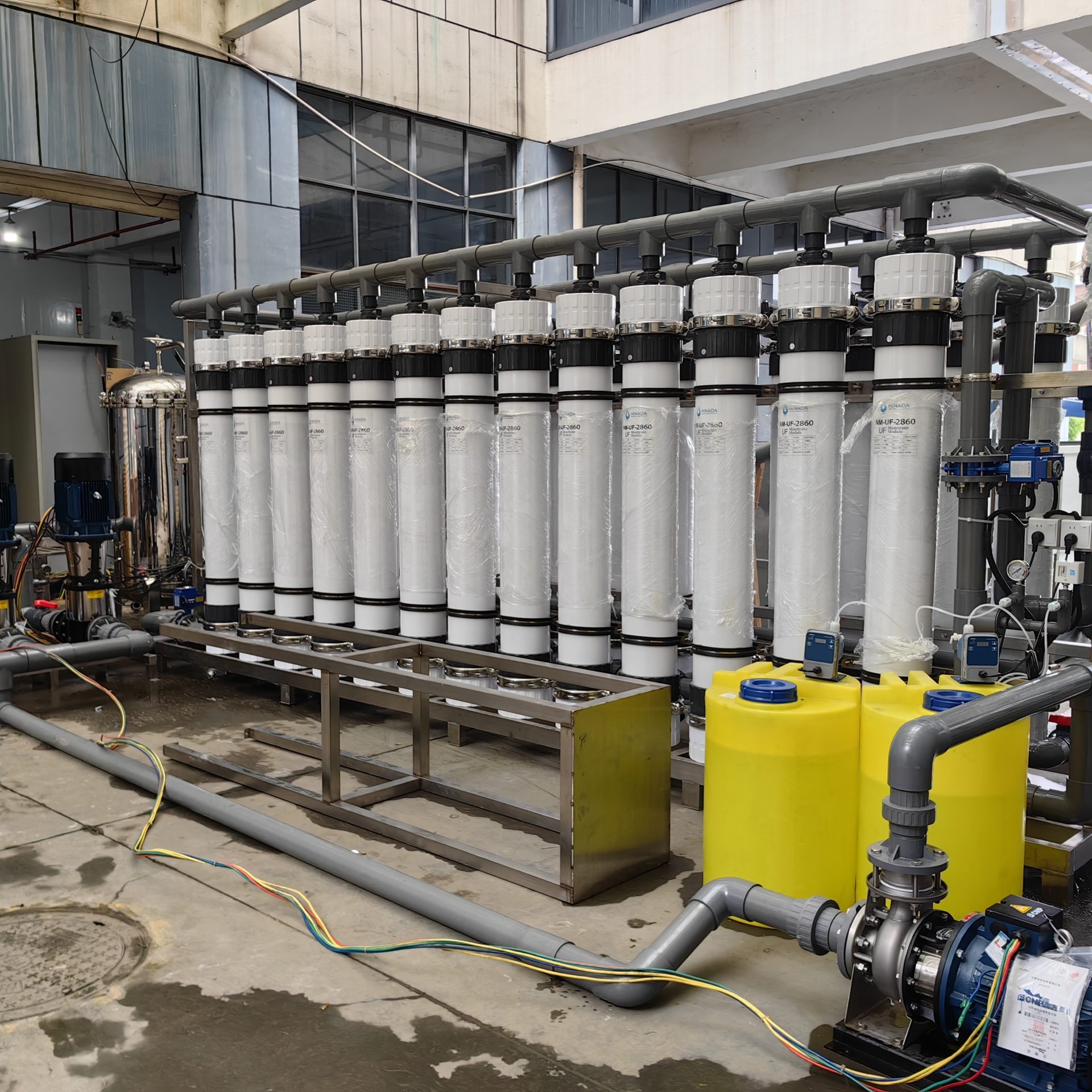

Containerized UF System for Drinking Water

In modern industry, a reliable supply of pure water is critical for uninterrupted production and high-quality output. But how do you achieve large-scale, high-efficiency purification in a compact, smart, and ready-to-deploy package.
The answer is right here. This is our advanced Containerized Ultrafiltration System.The capacity is 1000m3 per day. It integrates the entire water treatment process into a single, standardized shipping container.

What you get is more than just equipment; it’s a plug-and-play water treatment plant, ready for rapid deployment Raw water is first pressurized by the feed pump. It then sequentially passes through the disc filter and bag filter, effectively removing suspended solids and larger particles.

Next, the water is polished by the cartridge filter, for deeper pre-treatment.

Finally, the core of the process – water enters the Ultrafiltration membrane modules. With pores at the microscopic level, they efficiently separate colloids, bacteria, viruses, and macromolecules, producing a consistent stream of highly purified water for your most demanding applications.

To ensure long-term, stable performance, the system features a fully automatic backwash system, integrated with inline chemical cleaning. This easily manages membrane fouling and restores flux. Furthermore, we’ve included a convenient Offline CIP circuit with a dedicated pump.

For intensive maintenance, you can perform a highly efficient, isolated cleaning of the membranes without complex disassembly, drastically reducing downtime and operational costs.

From feed water to product, from intelligent backwash to easy maintenance—this containerized ultrafiltration system is your all-in-one water treatment solution. It means a smaller footprint, faster deployment, and a lower total cost of operation.

Hinada — Advanced Water Treatment for Industrial Excellence.

UF System Including:

* UF Membrane module

* Valves & Meters

* Control System

* Pipes and Fitting

* 304 stainless Skid Frame

* Preccision Filter

* Raw water pump

* Backwash pump

Application

The UF System is widely used in water production corporations, factory or schools as drinking water treatment system. The application including :

1. Surface Water Clarification for drinking or industry application

2. RO System Pre-Treatment

3. Waste Water or Sewage Treatment
We can accord to clients requirement supply the completely mineral water plant with bottle water filling and cover and labelling all in one.

Benifits

Minimum pumping energy required, thus energy saving
Chemical resistance, wide PH ranges
Back-washable
Easy to operate & maintenance
Low investment cost
No contaminant residue caused by chemical reaction
Recovery ratio up to 98%

* 10 Years custom ultrafiltration water treatment system designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
* Standard designs according your application, requirement and budget, we are one of leading ultrafiltration system manufacturers in China, we can produce and accept any special requirement orders.

Packaging

Plywood case packed or in container loading.

Our Service

We are the manufacturer of UF Membrane and UF System, we can offer according to your project requirement.
According to your project requirement design the UF System.
Offer installation and commissioning support.

Ultrafiltration plant are build with, which hollow fiber outside-in or inside-out membranes, UF membrane pore size is 0.01um, to purify surface or groundwater from suspended solids, colloids and all kind of micro-organisms such as bacteria, virus, protozoa, germs and larvae. We are ultrafiltration (UF) system manufacturer, we can manufacture UF plant as any your requirements for your water treatment projects.
* Ultrafiltration system
* UF membrane pore size: 0.01um
* Energy saving, backwashable
* Low investment
* Good output water quality
Ultrafiltration (UF) is a pressure-driven purification process that separates particulate matter from soluble compounds using an ultrafine membrane media. Ultrafiltration is an excellent separation technology for desalination pretreatment, reverse osmosis pretreatment, and wastewater reclamation, as well as for producing potable water and clean water.
With over 10 years of separation-technology leadership and products in more than 1,000 ultra-filtration equipment installations worldwide, we offer a portfolio of products designed for outstanding membrane separation, extreme productivity and efficiency, and exceptional reliability.

Key Feature of the UF Technology

♦  Feature 1:

Safe, affordable and sustainable Clean Water UF Technology

High quality effluent, Turbidity of output water: ≤ 0.2NTU

Suspended Matter >2um, 100% removal
With the ultrafiltration systems, suspended solids and turbidity in the water are treated at a high level, while certain level of color removal is also provided. One of the most important features of ultrafiltration systems is that it can remove all the bacteria and viruses that are likely to be found in water. Due to this feature, it has an extensive area of application, especially in spring water and drinking water treatment.

♦  Feature 2:

Lower footprint /Space /Moveable

Easy operation ( Automatically controlling), Easy assembly

♦  Feature 3:

Low energy cost,  power consumption around: 0.3kw / 1000Liters water

♦  Feature 4:

No dosing system, no chemicals, no pollution

Application

The UF System is widely used in water production corporations, factory or schools or Citizen Community as drinking water treatment system. The application including :

1. Surface/River Water Treatment UF Technology without chemical

2. RO System Pre-Treatment

3. Waste Water or Sewage Treatment or Industrial Production Application purpose.

UF System Benifits

Minimum pumping energy required, thus energy saving
Chemical resistance, wide PH ranges
Back-washable
Easy to operate & maintenance
Low investment cost
No contaminant residue caused by chemical reaction
Recovery ratio up to 98%

Main Equipment List

Application

The UF System is widely used in water production corporations, factory or schools as drinking water treatment system. The application including :

1. Surface Water Clarification

2. RO System Pre-Treatment

3. Waste Water or Sewage Treatment
We can accord to clients requirement supply the completely mineral water plant with bottle water filling and cover and labelling all in one.

Benifits

Minimum pumping energy required, thus energy saving
Chemical resistance, wide PH ranges
Back-washable
Easy to operate & maintenance
Low investment cost
No contaminant residue caused by chemical reaction
Recovery ratio up to 98%

* 10 Years custom ultrafiltration water treatment system designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
* Standard designs according your application, requirement and budget, we are one of leading ultrafiltration system manufacturers in China, we can produce and accept any special requirement orders.

Packaging

Plywood case packed or in container loading.

Our Service

We are the manufacturer of UF Membrane and UF System, we can offer according to your project requirement.
According to your project requirement design the UF System.
Offer installation and commissioning support.

UF Technology (River Water to Drinking Water UF System Application)

Ultrafiltration (UF) is a pressure-driven purification process that separates particulate matter from soluble compounds using an ultrafine membrane media. Ultrafiltration is an excellent separation technology for desalination pretreatment, reverse osmosis pretreatment, and wastewater reclamation, as well as for producing potable water and clean water.

With over 10 years of separation-technology leadership and products in more than 1,000 ultra-filtration equipment installations worldwide, we offer a portfolio of products designed for outstanding membrane separation, extreme productivity and efficiency, and exceptional reliability.

Key Feature of the UF Technology

♦  Feature 1：

Safe, affordable and sustainable Clean Water UF Technology

High quality effluent, Turbidity of output water: ≤ 0.2NTU

Suspended Matter ＞2um, 100% removal
With the ultrafiltration systems, suspended solids and turbidity in the water are treated at a high level, while certain level of color removal is also provided. One of the most important features of ultrafiltration systems is that it can remove all the bacteria and viruses that are likely to be found in water. Due to this feature, it has an extensive area of application, especially in spring water and drinking water treatment.

♦  Feature 2：

Lower footprint /Space /Moveable

Easy operation ( Automatically controlling), Easy assembly

♦  Feature 3：

Low energy cost,  power consumption around: 0.3kw / 1000Liters water

♦  Feature 4：

No dosing system, no chemicals, no pollution

♦  Feature 5：

Automatically Controlling + Touch Screen + Internet

UF Application
It can be widely apply to filtration river water, underground well water, lake water for house-hold or drinking purpose.

Application

The UF System is widely used in water production corporations, factory or schools or Citizen Community as drinking water treatment system. The application including :

1. Surface/River Water Treatment UF Technology without chemical

2. RO System Pre-Treatment

3. Waste Water or Sewage Treatment or Industrial Production Application purpose.

River water to Drinking Water UF Technology Hinada

UF System Benifits

Minimum pumping energy required, thus energy saving
Chemical resistance, wide PH ranges
Back-washable
Easy to operate & maintenance
Low investment cost
No contaminant residue caused by chemical reaction
Recovery ratio up to 98%

     Main Equipment List of UF System

   Key Equipment Specification:

Project case in Guangzhou UF System for Drinking water treatment with capacity of 1500m3/day

4000LPH UF System for Hardware Products manufacturer Including:

* UF Membrane module PVDF Material, 8 inch (NM-UF-200) UF Membrane, 4 sets

* Valves & Meters: SUS316 Material Electric-Butterfly Valves,

* Control System:  Scimens PLC + Touch Screeen

* Pipes and Fitting : UPVC 1.6MPa Pressure Pipeline

* 316 stainless Skid Frame

* Preccision Filter

* Raw water pump

* Backwash pump

Application

The UF System is widely used in water production corporations, factory or schools as drinking water treatment system. The application including :

1. Surface Water Clarification

2. RO System Pre-Treatment

3. Waste Water or Sewage Treatment
We can accord to clients requirement supply the completely mineral water plant with bottle water filling and cover and labelling all in one.

Benifits

Minimum pumping energy required, thus energy saving
Chemical resistance, wide PH ranges
Back-washable
Easy to operate & maintenance
Low investment cost
No contaminant residue caused by chemical reaction
Recovery ratio up to 98%

* 10 Years custom ultrafiltration water treatment system designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
* Standard designs according your application, requirement and budget, we are one of leading ultrafiltration system manufacturers in China, we can produce and accept any special requirement orders.

Packaging

Plywood case packed or in container loading.

Our Service

We are the manufacturer of UF Membrane and UF System, we can offer according to your project requirement.
According to your project requirement design the UF System.
Offer installation and commissioning support.

UF Technology (Industrial UF System for Urea Liquid Filtration Application)

Ultrafiltration (UF) is a pressure-driven purification process that separates particulate matter from soluble compounds using an ultrafine membrane media. Ultrafiltration is an excellent separation technology for desalination pretreatment, reverse osmosis pretreatment, and wastewater reclamation, as well as for producing potable water and clean water.

With over 10 years of separation-technology leadership and products in more than 1,000 ultra-filtration equipment installations worldwide, we offer a portfolio of products designed for outstanding membrane separation, extreme productivity and efficiency, and exceptional reliability.

Key Feature of the UF Technology

♦  Feature 1：

Safe, affordable and sustainable Clean Water UF Technology

High quality effluent, Turbidity of output water: ≤ 0.2NTU

Suspended Matter ＞2um, 100% removal
With the ultrafiltration systems, suspended solids and turbidity in the water are treated at a high level, while certain level of color removal is also provided. One of the most important features of ultrafiltration systems is that it can remove all the bacteria and viruses that are likely to be found in water. Due to this feature, it has an extensive area of application, especially in spring water and drinking water treatment.

♦  Feature 2：

Lower footprint /Space /Moveable

Easy operation ( Automatically controlling), Easy assembly

♦  Feature 3：

Low energy cost,  power consumption around: 0.3kw / 1000Liters water

♦  Feature 4：

No dosing system, no chemicals, no pollution

♦  Feature 5：

Automatically Controlling + Touch Screen + Internet

UF Application
It can be widely apply to filtration river water, underground well water, lake water for house-hold or drinking purpose.

Application

The UF System is widely used in water production corporations, factory or schools as drinking water treatment system. The application including :

1. Surface Water Clarification

2. RO System Pre-Treatment

3. Waste Water or Sewage Treatment or Industrial Production Application purpose.
We can accord to clients requirement supply the completely mineral water plant with bottle water filling and cover and labelling all in one.

Benifits

Minimum pumping energy required, thus energy saving
Chemical resistance, wide PH ranges
Back-washable
Easy to operate & maintenance
Low investment cost
No contaminant residue caused by chemical reaction
Recovery ratio up to 98%

* 10 Years custom ultrafiltration water treatment system designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
* Standard designs according your application, requirement and budget, we are one of leading ultrafiltration system manufacturers in China, we can produce and accept any special requirement orders.

Packaging

Plywood case packed or in container loading.

Our Service

We are the manufacturer of UF Membrane and UF System, we can offer according to your project requirement.
According to your project requirement design the UF System.
Offer installation and commissioning support.

                                                                                   Portable Water Filtration

Hand Operated Ultra-Filtration System for portable water supply ideal for exploration sites and remote locations without electricity power and safety drinking water, Hinada the professional manufacturer of this equipment with very reasonable price with good quality.

Removes:

•  Bacteria, Suspended Solids, Turbidity
• Colloidal, High Molecular Weight material,
• Taste or odour

Features:

• Easy to operation
• Small footprint (70cm * 50cm* 50cm)
• High flow rate (1 m³/hour)
• High mobility and light weight (35kgs)
• No electricity required (Hand pump)

Comprises

• NM-UF-1000 Ultra-Flo membrane
• NM-UF-1000 Carbon cartridge
• Manual hand pump
• Stainless steel frame
• PVC piping, hoses and quick couplings

Operation Specifications

•  Configuration: PVDF material Hollow fiber
•  Operation process: Cross filtration inside-out
•  Recovery: 85—95%
•  Operating Temp: 10—45℃

Application

Hand Operated Ultra-Filtration System for portable water supply ideal for exploration sites and remote locations without electricity power and safety drinking water.

Benifits

* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.

Packaging

Paper carton pack.

Our Service

We are the only manufacturer of this  Hand Operated Ultra-Filtration System , we can offer according to your client requirement.

UF System Including:
* UF membrane module
* Valves & meters
* Control system
* Pipes and fitting
* 304 stainless skid frame
* Preccision filter
* Raw water pump
* Backwash pump

Application

The industrial ultrafiltration systems are widely used in water production corporations, factory or schools as drinking water treatment system. The application including :
1. Surface | River Water Clarification
2. RO System Pre-Treatment
3. Waste Water or Sewage Treatment
4.  Drinking water treatment

Benifits

* Minimum pumping energy required, thus energy saving
* Chemical resistance, wide PH ranges
* Back-washable
* Easy to operate & maintenance
* Low investment cost
* No contaminant residue caused by chemical reaction
* Recovery ratio up to 98%

Package

Industrial UF Filtration System will be packaged in plywood case or in container .

Our Service

We are the manufacturer of UF Membrane and UF System, we can offer according to your project requirement, Offer installation and commissioning support.

* 10 Years custom ultrafiltration water treatment system designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
* Standard designs according your application, requirement and budget, we are one of leading ultrafiltration system manufacturers in China, we can produce and accept any special requirement orders.
