UF-2860 Ultrafiltration Membrane(9 Inch)
Model: NM-UF-2860
Specifications
Fiber inner/outer diameter: 0.6 / 1.2mm
Effective membrane area: 52m²

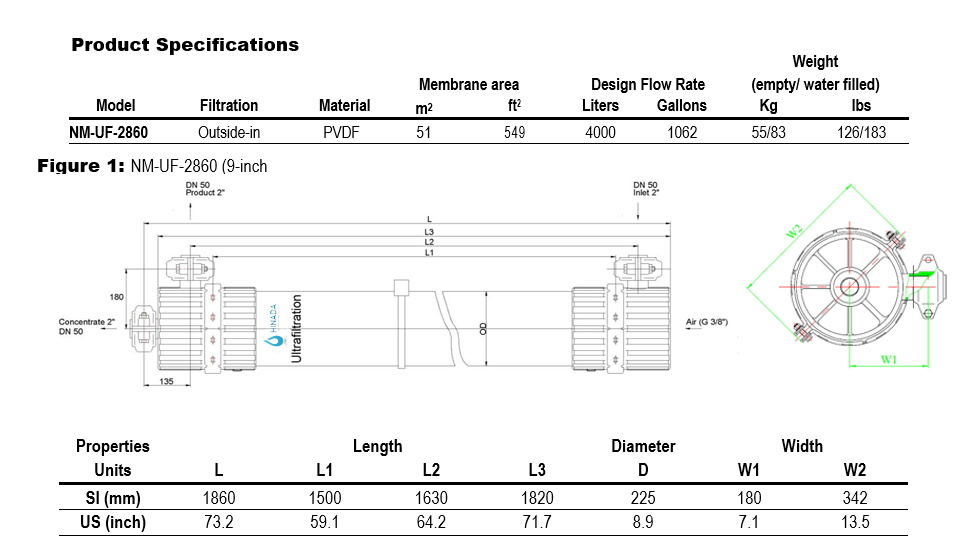

Dimension: Dia: 225mm; Length: 1860mm
Design Flux: 2000-5500L / h
Hollow fiber material: PVDF
UF Membrane (NM-UF-2860)
Description
PVDF UF Membrane (NM-UF-2860)
PVDF UF Membrane (NM-UF-2860 ) is special designed for industrial big project with capacity above 10 m3/Hour better. it has almost same designation of Dow Filmtec SFP-2860 or SFP-2880.
Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
This module is an ideal choice for systems with capacities greater than 50 m3/hr (220 gpm). The larger, 8 inch diameter module offers the highest effective membrane area of the DOW UF modules, which contributes to a more economical membrane system design. The shorter, 60 inch length module offers higher efficiencies over a wider range of feed water conditions compared to longer length modules.
This PVDF UF Membrane (NM-UF-2860) can be used for a wide variety of treatment applications such as surface water, seawater, industrial wastewaters, and secondary effluent wastewater.

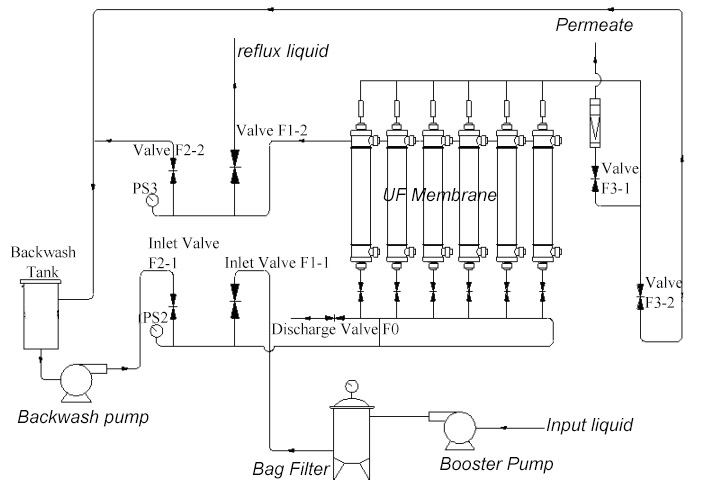

UF System 1000 m3/day as your reference:
Specifications :
|
Model |
Material |
I/O Diameter |
Pore size |
Housing |
Area |
Design flow rate |
| NM-UF-225 | PVDF | 0.6/1.2mm | 0.06um | UPVC | 52m2 | 2000--5500L/H |
|
Pre - filtration |
50-150 um |
|
Max turbidity of inlet water |
≤15 NTU |
|
Filtration |
Cross-flow filtration or dead end filtration |
|
Max inlet water pressure |
0.45 MPa |
|
Max pressure difference of transmembrane |
0.2 MPa |
|
Applicable PH range |
1- 12 |
|
Tolerable continuous residual chlorine |
100 PPM |
|
Tolerable interval residual chlorine |
200 PPM |
Application
* Industries water purpose: such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment
* In drinking water purpose: UF can be used for the removal of particulates and macro-molecules from raw water to produce potable water.
River water to Drinking Water UF Technology Hinada
* Protein Concentration : UF is used extensively in the dairy industry,fruit juice concentration, pretreatment of RO System.
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.
Packaging
Paper carton pack.
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System.
- Description:
-
Description
PVDF UF Membrane (NM-UF-2860)
PVDF UF Membrane (NM-UF-2860 ) is special designed for industrial big project with capacity above 10 m3/Hour better. it has almost same designation of Dow Filmtec SFP-2860 or SFP-2880.
Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
This module is an ideal choice for systems with capacities greater than 50 m3/hr (220 gpm). The larger, 8 inch diameter module offers the highest effective membrane area of the DOW UF modules, which contributes to a more economical membrane system design. The shorter, 60 inch length module offers higher efficiencies over a wider range of feed water conditions compared to longer length modules.
This PVDF UF Membrane (NM-UF-2860) can be used for a wide variety of treatment applications such as surface water, seawater, industrial wastewaters, and secondary effluent wastewater.
UF System 1000 m3/day as your reference:
Specifications :
Model
Material
I/O Diameter
Pore size
Housing
Area
Design flow rate
NM-UF-225 PVDF 0.6/1.2mm 0.06um UPVC 52m2 2000--5500L/H Pre - filtration
50-150 um
Max turbidity of inlet water
≤15 NTU
Filtration
Cross-flow filtration or dead end filtration
Max inlet water pressure
0.45 MPa
Max pressure difference of transmembrane
0.2 MPa
Applicable PH range
1- 12
Tolerable continuous residual chlorine
100 PPM
Tolerable interval residual chlorine
200 PPM
- Application
-
Application
* Industries water purpose: such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment
* In drinking water purpose: UF can be used for the removal of particulates and macro-molecules from raw water to produce potable water.River water to Drinking Water UF Technology Hinada
* Protein Concentration : UF is used extensively in the dairy industry,fruit juice concentration, pretreatment of RO System.
- Benefits
-
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills. - Packaging
-
Packaging
Paper carton pack.
- Our Service
-
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System. - UF Video
-
Send Inquiry To Us
What is UF Membrane and How Does It Work?
We at Hinada offer Ultrafiltration (UF) is the procedure that uses the UF membrane with a pore size that is generally below 0.1 microns. The smaller pore size is intended to remove colloids & substances which have the larger molecules that are called high-molecular-weight materials. UF membranes can be intended to pass the material that weighs less than & equal to some molecular weight. Moreover, this weight is recognized as the molecular weight cutoff of the membrane. Although UF doesn’t generally work well for the removal of salt & dissolved solids, it can be used efficiently for removal & most organic chemicals. Again often used in the combination with Reverse Osmosis is a very operational pretreatment.
The benefits of ultrafiltration water are discussed below:
- The process doesn’t involve the usage of chemicals that chiefly comprise disinfectants, flocculates, coagulants, & others.
- Simple automated procedure
- The water is preserved in order to remove particles & microbes
- Compact processes
- Deep filtration that includes particle elimination according to the size
It has been found out that ultrafiltration water ensures a better quality of water because it assists to eliminate dissolved contaminates & colloidal particles from water. The procedure is highly scientific & manufacturers producing UF membranes have to fulfill with standards set for manufacturing of same. The membrane contains pores that determine the size and type of the particles to be eliminated from the fluid. Ultrafiltration water is referred to water that is free from dissolved solids. Now, you know why it is measured as a major filtering process. We at Hinada are the top UF membrane manufacturers that offer different types of UF membranes. Ultrafiltration is essentially referred to as the disinfecting technique. Since the past few years, technological advancements have essentially led the membrane procedure to experience major changes & new steps were included to make the filtration more operative.
The post UF Membrane (NM-UF-2860) appeared first on Hinada.
]]>
Ultrafiltration Membrane NM-UF-200
Model: NM-UF-200
NM-UF-200 Permeate Water Quality:
Suspended Matter ＞2um, 100% removal
Organics: removal 99.99%
Turbidity of output water: ≤ 0.2NTU
SDI of output clean water: ≤ 2.5
Descriptions:
Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
Ultrafiltration Membrane (NM-UF-200) Specification
Ultrafiltration (UF) is a pressure-driven purification process that separates particulate matter from soluble compounds using an ultrafine membrane media. Ultrafiltration is an excellent separation technology for desalination pretreatment, reverse osmosis pretreatment, and wastewater reclamation, as well as for producing potable water and clean water.
Hinada, with over 10 years of separation-technology leadership and products in more than 1,000 ultra-filtration equipment installations worldwide, we offer a portfolio of products designed for outstanding membrane separation, extreme productivity and efficiency, and exceptional reliability.
| Hollow fibers | PVDF | PVC |
| Pre – filtration | 50-150 um | 50-150 um |
| Max turbidity of inlet water | ≤50 NTU | ≤15 NTU |
| Hollow fibers I/O diameter | 0.6 /1.2mm | 1.0 /1.96mm |
| Design flow rate | 2000—4000L/ Hour | 1000—2000L/ Hour |
| Housing Material | U-PVC | U-PVC |
| Membrane Area | 38m² | 28m² |
| Filtration | Outside-in | Inside-out |
| Max inlet water pressure | 0.45 MPa | 0.45 MPa |
| Max pressure difference of transmembrane | 0.25 MPa | 0.25 MPa |
| Applicable PH range | 2- 13 | 2- 13 |
| Tolerable continuous residual chlorine | 100 PPM | 100 PPM |
| Tolerable interval residual chlorine | 200 PPM | 200 PPM |
| Backwash Interval | Every half hour | Every half hour |
| Backwash time | 30-60sec | 30-60sec |
| CIP Backwash | Every 30-90day | Every 30-90day |
| CIP Chemical | NaClO, NaOH liquid | NaClO, NaOH liquid |
| Model | NM-UF-200(Material: PVC allay) | NM-UF-200 (Material: PVDF) |
| Diameter of Hollow fibers | 1.0/1.96mm | 0.6/1.2mm |

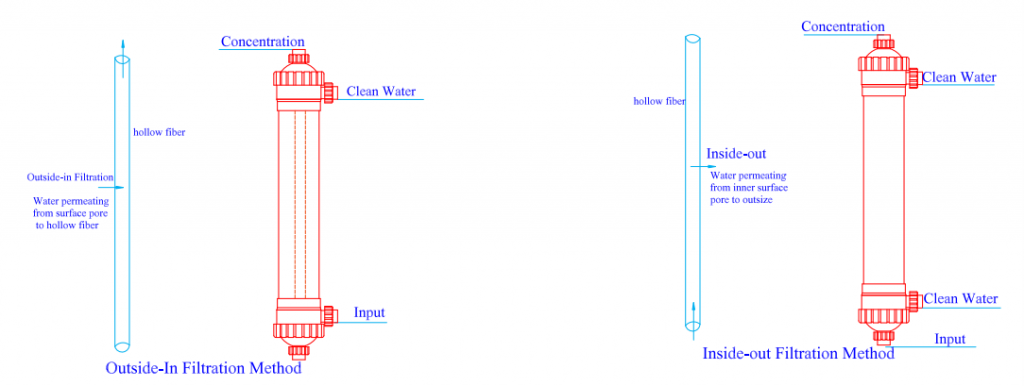

| Filtration Method | Inside-out | Outside-in |
| Effective Membrane Area | 28m² | 38m² |
| Design Flow rate | 60—160L/m².H | 60—160L/m².H |
| Potting Material | Epoxy resine | Epoxy resine |
| Housing Material | U-PVC | U-PVC |
| Molecular Cut off( Dal) | 100,000 Dalton | 100,000 Dalton |

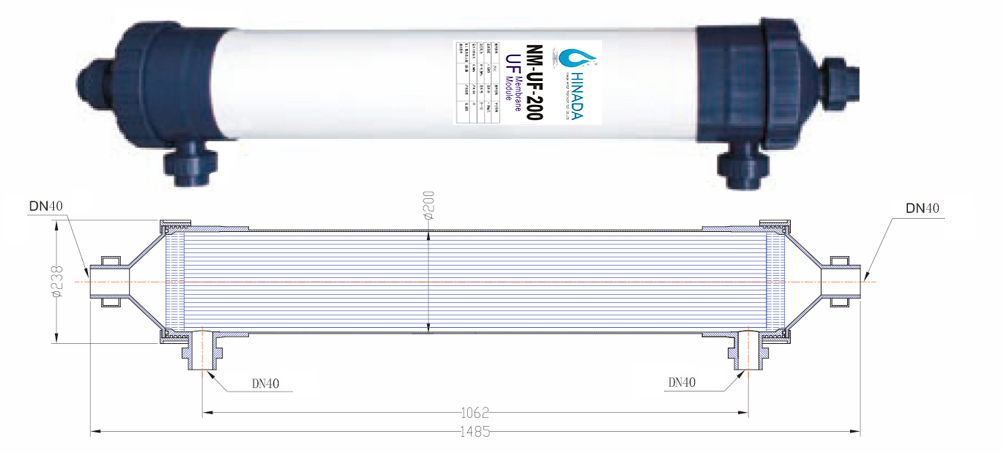

| Dimensions(mm) | ø 200*1485mm | ø 200*1425mm |
| Gross Weight | 7.0kgs | 7.0kgs |
| Feature | Price more reasonable, for clean water filtration that the input turbidty better less than 15NTU. | High anti-pollution and better flow rate, the input burbidty better less than 50NTU. |
Ultrafiltration Membrane (NM-UF-200) Application
*Industries water purpose: Such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment.
*In drinking water purpose: Ultrafiltration membrane system can be used for the removal of particulates and macro-molecules from raw water to produce potable water, especial for surface water, spring water, river water, lake water treatment purpose.
River water to Drinking Water UF Technology Hinada
*Protein Concentration: UF is used extensively in the dairy industry,fruit juice concentration, pretreatment of RO System.
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.
Ultrafiltration Membrane (NM-UF-200) Packaging
Paper carton pack, gross weight: 30kgs/ unit
Dimension: 150* 25*30cm
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System.
- Specifications
-
Ultrafiltration Membrane (NM-UF-200) Specification
Ultrafiltration (UF) is a pressure-driven purification process that separates particulate matter from soluble compounds using an ultrafine membrane media. Ultrafiltration is an excellent separation technology for desalination pretreatment, reverse osmosis pretreatment, and wastewater reclamation, as well as for producing potable water and clean water.
Hinada, with over 10 years of separation-technology leadership and products in more than 1,000 ultra-filtration equipment installations worldwide, we offer a portfolio of products designed for outstanding membrane separation, extreme productivity and efficiency, and exceptional reliability.
Hollow fibers PVDF PVC Pre – filtration 50-150 um 50-150 um Max turbidity of inlet water ≤50 NTU ≤15 NTU Hollow fibers I/O diameter 0.6 /1.2mm 1.0 /1.96mm Design flow rate 2000—4000L/ Hour 1000—2000L/ Hour Housing Material U-PVC U-PVC Membrane Area 38m² 28m² Filtration Outside-in Inside-out Max inlet water pressure 0.45 MPa 0.45 MPa Max pressure difference of transmembrane 0.25 MPa 0.25 MPa Applicable PH range 2- 13 2- 13 Tolerable continuous residual chlorine 100 PPM 100 PPM Tolerable interval residual chlorine 200 PPM 200 PPM Backwash Interval Every half hour Every half hour Backwash time 30-60sec 30-60sec CIP Backwash Every 30-90day Every 30-90day CIP Chemical NaClO, NaOH liquid NaClO, NaOH liquid Model NM-UF-200(Material: PVC allay) NM-UF-200 (Material: PVDF) Diameter of Hollow fibers 1.0/1.96mm 0.6/1.2mm Filtration Method Inside-out Outside-in Effective Membrane Area 28m² 38m² Design Flow rate 60—160L/m².H 60—160L/m².H Potting Material Epoxy resine Epoxy resine Housing Material U-PVC U-PVC Molecular Cut off( Dal) 100,000 Dalton 100,000 Dalton Dimensions(mm) ø 200*1485mm ø 200*1425mm Gross Weight 7.0kgs 7.0kgs Feature Price more reasonable, for clean water filtration that the input turbidty better less than 15NTU. High anti-pollution and better flow rate, the input burbidty better less than 50NTU. - Application
-
Ultrafiltration Membrane (NM-UF-200) Application
*Industries water purpose: Such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment.
*In drinking water purpose: Ultrafiltration membrane system can be used for the removal of particulates and macro-molecules from raw water to produce potable water, especial for surface water, spring water, river water, lake water treatment purpose.
River water to Drinking Water UF Technology Hinada
*Protein Concentration: UF is used extensively in the dairy industry,fruit juice concentration, pretreatment of RO System.
- Benefits
-
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills. - Packaging
-
Ultrafiltration Membrane (NM-UF-200) Packaging
Paper carton pack, gross weight: 30kgs/ unit
Dimension: 150* 25*30cm
- Our Service
-
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System. - UF Video
-
Send Inquiry To Us
The post Ultrafiltration Membrane NM-UF-200 appeared first on Hinada.
]]>

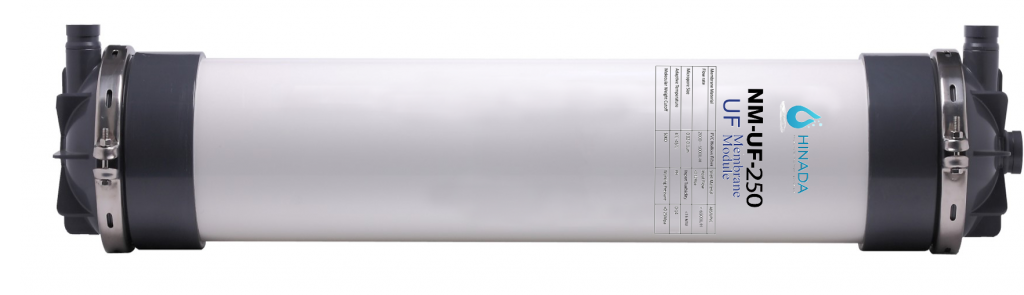

Ultrafiltration Membrane (NM-UF-250 )
Ultrafiltration Membrane (NM-UF-250 )
Application: Ideas for project with capacity above 30 m3/hour of river water treatment /city water
Permeate Water Quality:
Suspended Matter ＞2um, 100% removal
Organics: removal 99.99%
Turbidity of output water: ≤ 0.2NTU
SDI of output clean water: ≤ 2.5
Description:
Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UFmembranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
Ultrafiltration Membrane (NM-UF-250 )
Ultrafiltration (UF) is a pressure-driven purification process that separates particulate matter from soluble compounds using an ultrafine membrane media. Ultrafiltration is an excellent separation technology for desalination pretreatment, reverse osmosis pretreatment, and wastewater reclamation, as well as for producing potable water and clean water.
Hinada, with over 10 years of separation-technology leadership and products in more than 1,000 ultra-filtration equipment installations worldwide, we offer a portfolio of products designed for outstanding membrane separation, extreme productivity and efficiency, and exceptional reliability.
| Membrane Material | PVC | PVDF |
| Inner and outer diameters of hollow-fiber | 0.9mm/1.96mm | 0.6mm/1.2mm |

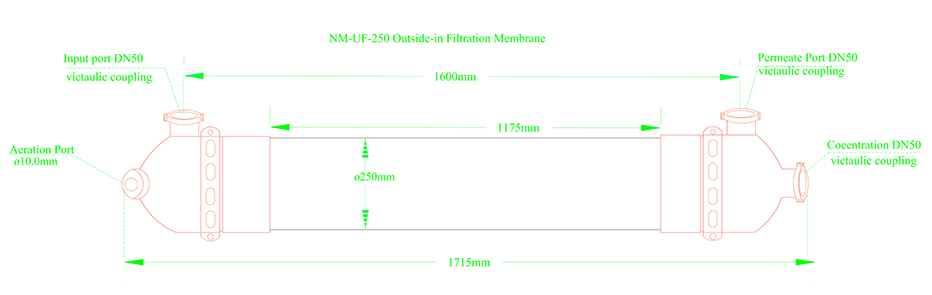

| Dimensions of membrane module | 250* 1715mm | 250* 1715mm |
| Design flux | 3500—–4500 L/H | 3500—5500 L/H |
| External Shape | Hollow fiber | Hollow fiber |
| Membrane fiber type | Inside-out | Outside-in |
| Area of membrane module | 48 M2 | 78 M2 |
| Applicable temperature | 5 – 45℃ | 5 – 45℃ |
| Molecular Weight Cut-off (MWCO) | 100.000 Daltons | 100.000 Daltons |
| Characteristics of membrane structure | Hydrophilic double-compact layers | Hydrophilic double-compact layers |
Working Conditional:
| Pre – filtration | 50-150 um |
| Max turbidity of inlet water | ≤50 NTU |
| Filtration | Cross-flow filtration or dead-end filtration |
| Max inlet water pressure | 0.40 MPa |
| Max pressure difference of transmembrane | 0.25 MPa |
| Applicable PH range | 2- 13 |
| Tolerable continuous residual chlorine | 100 PPM |
| Tolerable interval residual chlorine | 200 PPM |
| Backwash Interval | Every 15-60min |
| Backwash time | 30-60sec |
| CIP Backwashing | Every 30-90day |
| CIP Chemical | NaClO, NaOH liquid |
| Model | NM-UF-250(Material: PVC allay) | NM-UF-250 (Material: PVDF) |
| Diameter of Hollow fibers | 1.0/1.96mm | 0.6/1.2mm |
| Filtration Method | Inside-out | Outside-in |
| Effective Membrane Area | 48m² | 78m² |
| Design Flow rate | 60—160L/m².H | 60—160L/m².H |
| Potting Material | Epoxy resine | Epoxy resine |
| Housing Material | U-PVC | U-PVC |
| Molecular Cut off( Dal) | 100,000 Dalton | 100,000 Dalton |
| Dimensions(mm) | ø 250*1715mm | ø 250*1715mm |
| Gross Weight | 60.0kgs | 60.0kgs |
| Feature | Price more reasonable, for clean water filtration that the input turbidty better less than 15NTU. | High anti-pollution and better flow rate, the input burbidty better less than 50NTU. |
10 Inch Ultrafiltration Membrane Production Video in factory
Application
*Industries water purpose: Such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment.
*In drinking water purpose: Ultrafiltration membrane system can be used for the removal of particulates and macro-molecules from raw water to produce potable water.
River water to Drinking Water UF Technology Hinada
*Protein Concentration: UF is used extensively in the dairy industry,fruit juice concentration, pretreatment of RO System.
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.
Ultrafiltration Membrane (NM-UF-250 ) Packaging
Plywood case packaged 1 unit per carton.
Gross weight: 60kgs/ unit
Dimension: 175* 35*40cm
Our Service
We are the manufacturer of UF Membrane, we can offer according to your project requirement offer the solution, and installation, commissioning support..
- Specifications
-
Ultrafiltration Membrane (NM-UF-250 )
Ultrafiltration (UF) is a pressure-driven purification process that separates particulate matter from soluble compounds using an ultrafine membrane media. Ultrafiltration is an excellent separation technology for desalination pretreatment, reverse osmosis pretreatment, and wastewater reclamation, as well as for producing potable water and clean water.
Hinada, with over 10 years of separation-technology leadership and products in more than 1,000 ultra-filtration equipment installations worldwide, we offer a portfolio of products designed for outstanding membrane separation, extreme productivity and efficiency, and exceptional reliability.
Membrane Material PVC PVDF Inner and outer diameters of hollow-fiber 0.9mm/1.96mm 0.6mm/1.2mm Dimensions of membrane module 250* 1715mm 250* 1715mm Design flux 3500—–4500 L/H 3500—5500 L/H External Shape Hollow fiber Hollow fiber Membrane fiber type Inside-out Outside-in Area of membrane module 48 M2 78 M2 Applicable temperature 5 – 45℃ 5 – 45℃ Molecular Weight Cut-off (MWCO) 100.000 Daltons 100.000 Daltons Characteristics of membrane structure Hydrophilic double-compact layers Hydrophilic double-compact layers Working Conditional:
Pre – filtration 50-150 um Max turbidity of inlet water ≤50 NTU Filtration Cross-flow filtration or dead-end filtration Max inlet water pressure 0.40 MPa Max pressure difference of transmembrane 0.25 MPa Applicable PH range 2- 13 Tolerable continuous residual chlorine 100 PPM Tolerable interval residual chlorine 200 PPM Backwash Interval Every 15-60min Backwash time 30-60sec CIP Backwashing Every 30-90day CIP Chemical NaClO, NaOH liquid Model NM-UF-250(Material: PVC allay) NM-UF-250 (Material: PVDF) Diameter of Hollow fibers 1.0/1.96mm 0.6/1.2mm Filtration Method Inside-out Outside-in Effective Membrane Area 48m² 78m² Design Flow rate 60—160L/m².H 60—160L/m².H Potting Material Epoxy resine Epoxy resine Housing Material U-PVC U-PVC Molecular Cut off( Dal) 100,000 Dalton 100,000 Dalton Dimensions(mm) ø 250*1715mm ø 250*1715mm Gross Weight 60.0kgs 60.0kgs Feature Price more reasonable, for clean water filtration that the input turbidty better less than 15NTU. High anti-pollution and better flow rate, the input burbidty better less than 50NTU. 10 Inch Ultrafiltration Membrane Production Video in factory
- Application
-
Application
*Industries water purpose: Such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment.
*In drinking water purpose: Ultrafiltration membrane system can be used for the removal of particulates and macro-molecules from raw water to produce potable water.
River water to Drinking Water UF Technology Hinada
*Protein Concentration: UF is used extensively in the dairy industry,fruit juice concentration, pretreatment of RO System.
- Benefits
-
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills. - Packaging
-
Ultrafiltration Membrane (NM-UF-250 ) Packaging
Plywood case packaged 1 unit per carton.
Gross weight: 60kgs/ unit
Dimension: 175* 35*40cm
- Our Service
-
Our Service
We are the manufacturer of UF Membrane, we can offer according to your project requirement offer the solution, and installation, commissioning support..
- UF Video
-
Send Inquiry To Us
The post Ultrafiltration Membrane (NM-UF-250 ) appeared first on Hinada.
]]>
Household Water UF Filter
Household UF Filter
specifications
PVDF material hollow fiber
Housing: SUS304, 2.0mm thickness
Flow rate:500L/H
Area:1.4㎡
Ø108×300mm
Application: for city water or surface water filtration
Description
Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
This Small Household UF Filter is special designed for whole family within 6 people’s daily use water filtration.
Hinada can offer domestic Household Water UF Filter from Capacity 500L to 6000L per hour, good quality and we looking for distributors from your city, once you read this messages, and you are in domestic water treatment business, please don’t hesitate to contact with us, surprising waiting for you.
flashsgl
|
Pore size |
<0.1 um |
|
Max turbidity of inlet water |
≤100 NTU |
|
Filtration |
Cross-flow filtration filtration |
|
Inlet water pressure |
0.1—0.2 MPa |
|
Filtration Method |
Outside-in |
|
Design flux |
60—100L/H |
|
Dia I/O |
0.3/ 0.7mm |
|
Max pressure difference of transmembrane |
0.1 MPa |
|
Applicable PH range |
4- 10 |
|
Tolerable continuous residual chlorine |
100 PPM |
|
Tolerable interval residual chlorine |
200 PPM |
|
Backwash Interval |
Every week |
|
Backwash time |
5-10 Minutes |
|
Backwash pressure |
0.12—0.15MPa |
|
Backwash flow design |
0.8T/H |
Application
Household drinking water purpose: UF can be used for the removal of particulates and macro-molecules from raw water to produce potable water.
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Easy to replace the UF Filter and Clean the filter
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.
Packaging
Paper carton pack.
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System.
- Description:
-
Description
Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
This Small Household UF Filter is special designed for whole family within 6 people’s daily use water filtration.Hinada can offer domestic Household Water UF Filter from Capacity 500L to 6000L per hour, good quality and we looking for distributors from your city, once you read this messages, and you are in domestic water treatment business, please don’t hesitate to contact with us, surprising waiting for you.
flashsgl
Pore size
<0.1 um
Max turbidity of inlet water
≤100 NTU
Filtration
Cross-flow filtration filtration
Inlet water pressure
0.1—0.2 MPa
Filtration Method
Outside-in
Design flux
60—100L/H
Dia I/O
0.3/ 0.7mm
Max pressure difference of transmembrane
0.1 MPa
Applicable PH range
4- 10
Tolerable continuous residual chlorine
100 PPM
Tolerable interval residual chlorine
200 PPM
Backwash Interval
Every week
Backwash time
5-10 Minutes
Backwash pressure
0.12—0.15MPa
Backwash flow design
0.8T/H
- Application
-
Application
Household drinking water purpose: UF can be used for the removal of particulates and macro-molecules from raw water to produce potable water.
- Benefits
-
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Easy to replace the UF Filter and Clean the filter
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills. - Packaging
-
Packaging
Paper carton pack.
- Our Service
-
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System.
Send Inquiry To Us
The post Household Water UF Filter appeared first on Hinada.
]]>

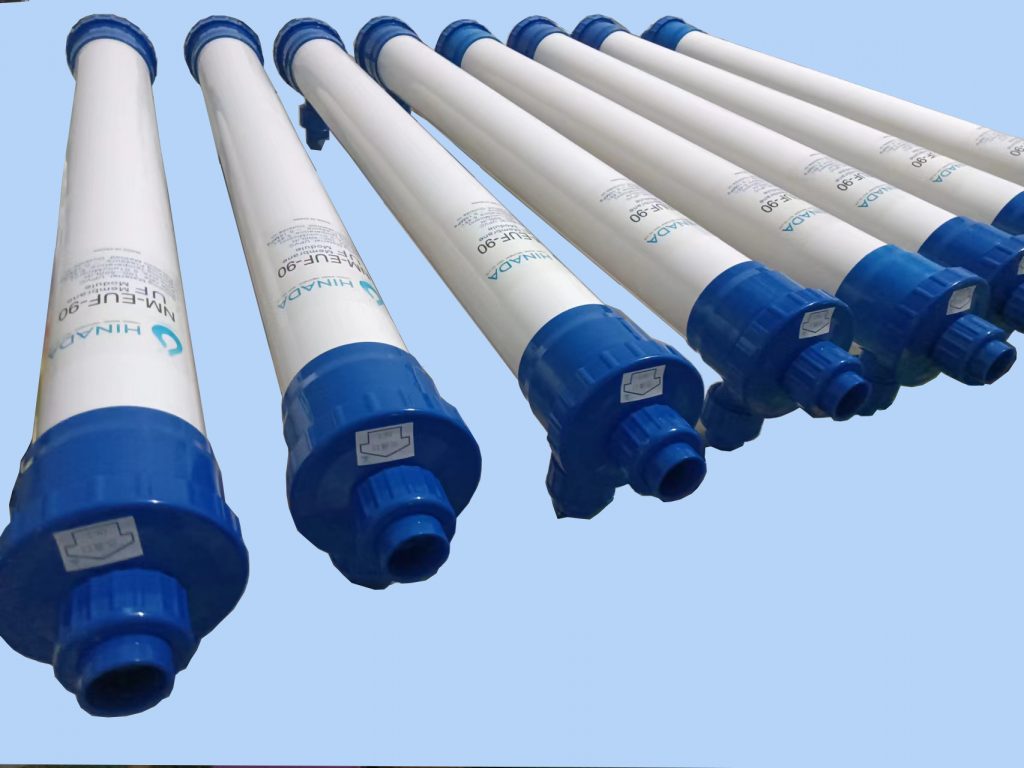

Electrophoresis Painting UF Membrane
NM-90 EUF Membrane [Electrophoretic Paint Membrane]
Electrophoresis painting EUF-90 Membrane Specification
PP material hollow fiber
Electrophoretic Paint Membrane
Flow rate:100L/H
Area:12㎡
Ø90×1175mm
UPVC housing
To meet the needs of closed cycle leaching recovery of electrophoretic paint. The electrophoretic paint recovery rate can be more than 98%, which can be used to clean the electrophoretic paint. Removal of impurity ions, purification of bath solution, improve coating quality
Description
Electrophoresis painting EUF-90 Membrane, to meet the needs of closed cycle leaching recovery of electrophoretic paint. The electrophoretic paint recovery rate can be more than 98%, which can be used to clean the electrophoretic paint, which can be applied to the coated product. If you do not use the ultrafiltration system, the recovery rate is only 70%-80%.
UF Treatment Process for Electrophoresis painting:
| Model | NM-EUF-90 (Material: PP Polypropylene) |
| Diameter of Hollow fibers | 0.3/0.4mm |
| Filtration Method | Outside-in |
| Effective Membrane Area | 12m² |
| Design Flow rate | 60—160L/m².H |
| Potting Material | Epoxy resine |
| Housing Material | U-PVC |
| Pore Size | 0.02—0.1micron |
| Maximumu pressure | 0.2MPa |
| Inlet Liquid particle size | Less than 50um |
|
Pore size |
0.01 um |
|
Max turbidity of inlet water |
≤100 NTU |
|
Filtration |
Cross-flow filtration filtration |
|
Inlet water pressure |
0.1—0.15 MPa |
|
Filtration Method |
Outside-in |
|
Design flux |
60—100L/H |
|
Dia I/O |
0.3/ 0.7mm |
|
Max pressure difference of transmembrane |
0.1 MPa |
|
Applicable PH range |
2- 13 |
|
Tolerable continuous residual chlorine |
100 PPM |
|
Tolerable interval residual chlorine |
200 PPM |
|
Backwash Interval |
Every 15-60min |
|
Backwash time |
30-60sec |
|
Backwash pressure |
0.12—0.15MPa |
|
Backwash flow design |
0.8T/H |
|
CIP Backwashing |
Every 30-90day |
|
CIP Chemical |
NaClO, NaOH liquid |
Electrophoresis Painting UF Membrane Application
Electrophoretic paint UF Membrane, which is widely applied in the coating process of automobile, hardware, electrical appliances, tractors, bicycles, jewelry, spectacle frames and other industrial manufacturing industries. The use of Electrophoretic UF Membrane to recover electrophoretic paint can save 30% of the amount of electrophoretic paint, that greatly reduce the discharge of painting in the production process. The electrophoretic UF Membrane can be greatly improved by improving the conductivity in the Bath tank and the quality of coating.
We can accord to clients requirement supply the completely UF System for coating.
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly.
Packaging
Paper carton pack.
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System.
- Description
-
Description
Electrophoresis painting EUF-90 Membrane, to meet the needs of closed cycle leaching recovery of electrophoretic paint. The electrophoretic paint recovery rate can be more than 98%, which can be used to clean the electrophoretic paint, which can be applied to the coated product. If you do not use the ultrafiltration system, the recovery rate is only 70%-80%.
UF Treatment Process for Electrophoresis painting:Model NM-EUF-90 (Material: PP Polypropylene) Diameter of Hollow fibers 0.3/0.4mm Filtration Method Outside-in Effective Membrane Area 12m² Design Flow rate 60—160L/m².H Potting Material Epoxy resine Housing Material U-PVC Pore Size 0.02—0.1micron Maximumu pressure 0.2MPa Inlet Liquid particle size Less than 50um Pore size
0.01 um
Max turbidity of inlet water
≤100 NTU
Filtration
Cross-flow filtration filtration
Inlet water pressure
0.1—0.15 MPa
Filtration Method
Outside-in
Design flux
60—100L/H
Dia I/O
0.3/ 0.7mm
Max pressure difference of transmembrane
0.1 MPa
Applicable PH range
2- 13
Tolerable continuous residual chlorine
100 PPM
Tolerable interval residual chlorine
200 PPM
Backwash Interval
Every 15-60min
Backwash time
30-60sec
Backwash pressure
0.12—0.15MPa
Backwash flow design
0.8T/H
CIP Backwashing
Every 30-90day
CIP Chemical
NaClO, NaOH liquid
- Application
-
Electrophoresis Painting UF Membrane Application
Electrophoretic paint UF Membrane, which is widely applied in the coating process of automobile, hardware, electrical appliances, tractors, bicycles, jewelry, spectacle frames and other industrial manufacturing industries. The use of Electrophoretic UF Membrane to recover electrophoretic paint can save 30% of the amount of electrophoretic paint, that greatly reduce the discharge of painting in the production process. The electrophoretic UF Membrane can be greatly improved by improving the conductivity in the Bath tank and the quality of coating.
We can accord to clients requirement supply the completely UF System for coating.
- Benefits
-
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. - Packaging
-
Packaging
Paper carton pack.
- Our Service
-
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System. - UF Video
-
Send Inquiry To Us
The post Electrophoresis Painting UF Membrane appeared first on Hinada.
]]>
UF Membrane NM-UF-90
UF Membrane NM-UF-90 (4 Inch)
Model: NM-UF-90
Permeate Water Quality:
Suspended Matter ＞2um, 100% removal
Organics: removal 99.99%
Turbidity of output water: ≤ 0.2NTU
SDI of output clean water: ≤ 2.5
Descriptions:
Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
Description
UF Membrane NM-UF-90
UF is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
This UF Membrane NM-UF-90 is special designed for industrial small project like less than 5000Ltr/Hour.
Hinada has PVDF material and PVC material hollow fibers, the UF Membrane UF-90 design capacity around 500 Liters / Hour for surface water filtration.
NM-UF-90 Dimension:
NM-UF-90 Specification:
| Hollow fibers | PVDF | PVC |
| Pre – filtration | 50-150 um | 50-150 um |
| Max turbidity of inlet water | ≤50 NTU | ≤15 NTU |
| Hollow fibers I/O diameter | 0.6 /1.2mm | 1.0 /1.96mm |
| Design flow rate | 500—1200L/ Hour | 300—800L/ Hour |
| Housing Material | U-PVC | U-PVC |
| Membrane Area | 8m² | 4.8m² |
| Filtration | Outside-in | Inside-out |
| Max inlet water pressure | 0.45 MPa | 0.45 MPa |
| Max pressure difference of transmembrane | 0.25 MPa | 0.25 MPa |
| Applicable PH range | 2- 13 | 2- 13 |
| Tolerable continuous residual chlorine | 100 PPM | 100 PPM |
| Tolerable interval residual chlorine | 200 PPM | 200 PPM |
| Backwash Interval | Every half hour | Every half hour |
| Backwash time | 30-60sec | 30-60sec |
| CIP Backwash | Every 30-90day | Every 30-90day |
| CIP Chemical | NaClO, NaOH liquid | NaClO, NaOH liquid |
Application
Industries water purpose: such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment
In drinking water purpose: UF can be used for the removal of particulates and macro-molecules from raw water to produce potable water.
Protein Concentration : UF is used extensively in the dairy industry,fruit juice concentration, pretreatment of RO System.
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.
Packaging
Paper carton pack, 6 pcs / carton
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System.
- Description:
-
Description
UF Membrane NM-UF-90
UF is a separation process using membranes with pore sizes in the range of 0.01 to 0.1 micron. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules.
This UF Membrane NM-UF-90 is special designed for industrial small project like less than 5000Ltr/Hour.Hinada has PVDF material and PVC material hollow fibers, the UF Membrane UF-90 design capacity around 500 Liters / Hour for surface water filtration.
NM-UF-90 Dimension:
NM-UF-90 Specification:
Hollow fibers PVDF PVC Pre – filtration 50-150 um 50-150 um Max turbidity of inlet water ≤50 NTU ≤15 NTU Hollow fibers I/O diameter 0.6 /1.2mm 1.0 /1.96mm Design flow rate 500—1200L/ Hour 300—800L/ Hour Housing Material U-PVC U-PVC Membrane Area 8m² 4.8m² Filtration Outside-in Inside-out Max inlet water pressure 0.45 MPa 0.45 MPa Max pressure difference of transmembrane 0.25 MPa 0.25 MPa Applicable PH range 2- 13 2- 13 Tolerable continuous residual chlorine 100 PPM 100 PPM Tolerable interval residual chlorine 200 PPM 200 PPM Backwash Interval Every half hour Every half hour Backwash time 30-60sec 30-60sec CIP Backwash Every 30-90day Every 30-90day CIP Chemical NaClO, NaOH liquid NaClO, NaOH liquid - Application
-
Application
Industries water purpose: such as chemical and pharmaceutical manufacturing, food and beverage processing, and waste water treatment
In drinking water purpose: UF can be used for the removal of particulates and macro-molecules from raw water to produce potable water.
Protein Concentration : UF is used extensively in the dairy industry,fruit juice concentration, pretreatment of RO System. - Benefits
-
Benifits
* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills. - Packaging
-
Packaging
Paper carton pack, 6 pcs / carton
- Our Service
-
Our Service
We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System. - UF Video
-
Send Inquiry To Us
The post UF Membrane NM-UF-90 appeared first on Hinada.
]]>
