What is a Membrane Bioreactor (MBR)?

A Membrane Bioreactor (MBR) is a advanced wastewater treatment technology that combines two processes:

1. Biological treatment – using microorganisms (activated sludge) to break down organic pollutants and nutrients.

2. Membrane filtration – using porous membranes (typically hollow fiber or flat sheet) to physically separate treated water from the biomass.

In an MBR, the membranes are submerged in the biological reactor or placed in a separate tank. They replace the conventional secondary clarifier used in traditional activated sludge systems.

Submerged MBR Membrane NM-RMBR-1520 Specification:

  Futher technical data or information please do contact with us!

Application

MBR Membrane is widely use for industrial and sewage waste water treatment. Reduced footprint, usually 30-50% smaller than an equivalent conventional active sludge facility with secondary clarifiers and media tertiary filtration. The process also produces exceptional effluent quality capable of meeting the most stringent water quality requirements, a modular schematic that allows for ease of expansion and configuration flexibility, a robust and reliable operation and reduced downstream disinfection requirements.

Benifits

* Lower energy costs, reinforced hollow fibers
* High quality effluent
* Lower footprint ( space)
* High flow rate, easy cleaning and operation

Packaging

Paper carton pack.

Our Service

We are the manufacturer of UF Membrane, we can offer according to your client requirement.
According to client requirement design the UF System.

Membrane Bioreactor NM-RMBR-1010 Specification:

Futher technical data or information please do contact with us!

Application

*

Membrane bioreactor (MBR) is the combination of a membrane process like microfiltration or ultrafiltration with a suspended growth bioreactor, and is now widely used for municipal and industrial wastewater treatment.

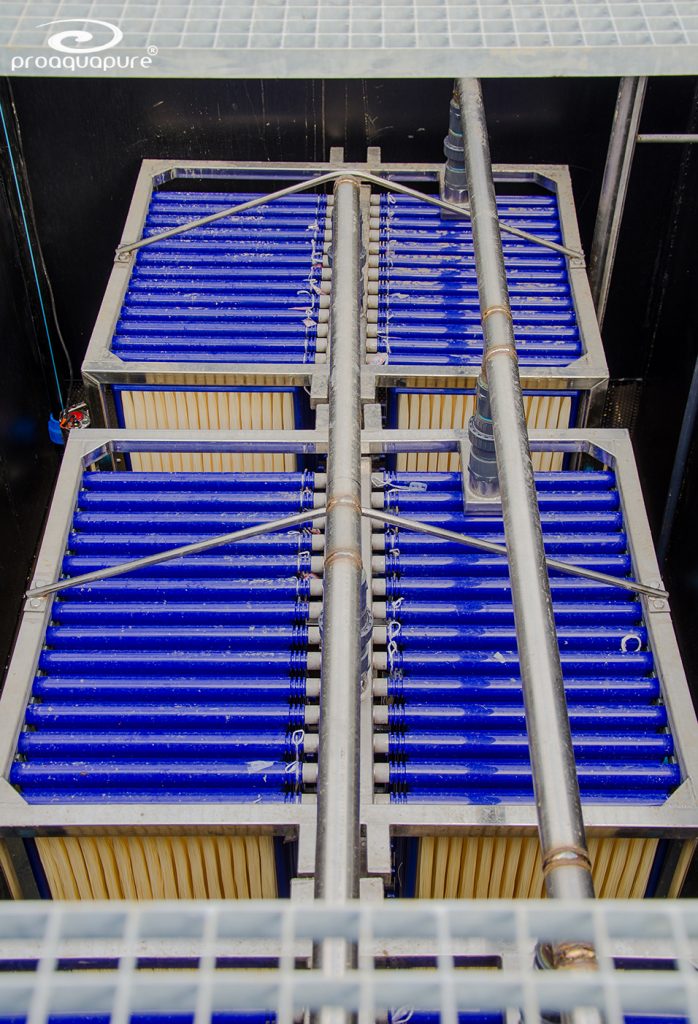

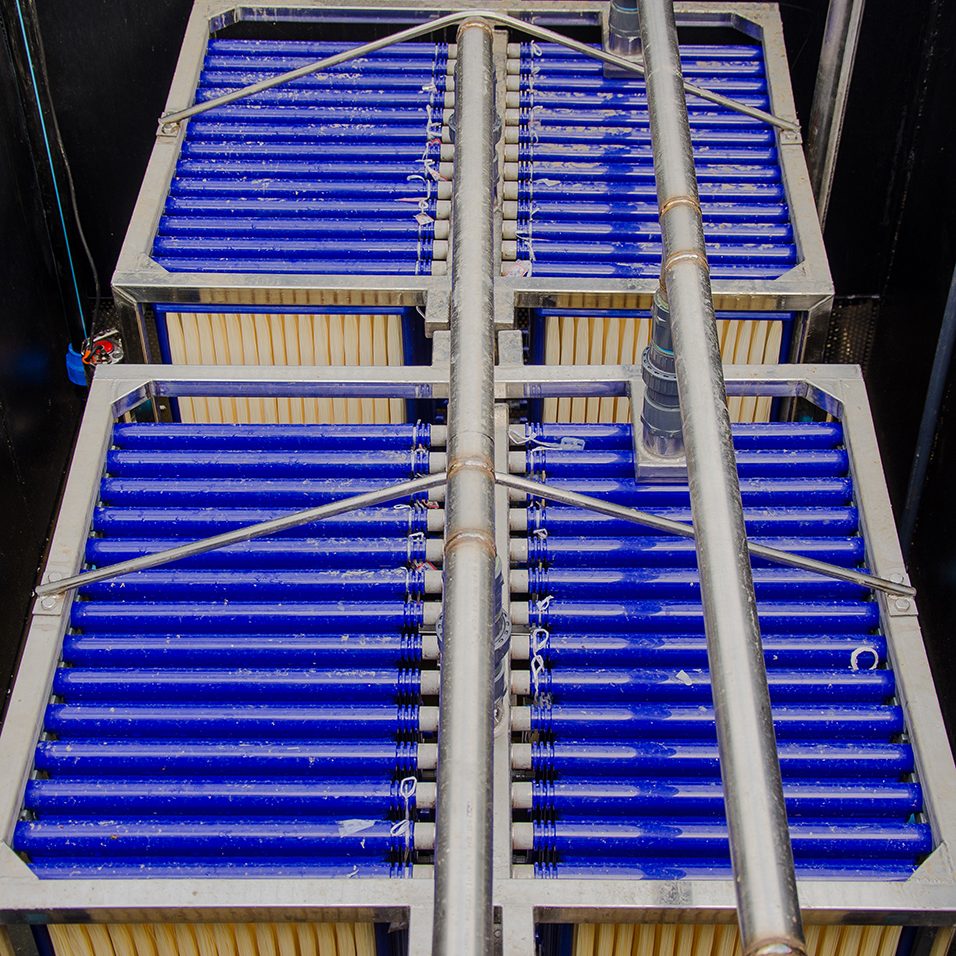

PVDF Membrane Bioreactor NM-RMBR-1010 is widely used for industrial and sewage waste water treatment, it’s special better for packaged wastewater treatment plant in container.

Benifits

* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.

Packaging

Membrane Bioreactor NM-RMBR-1010 Paper carton pack, 5 pcs / carton

One carton gross weight: 30kgs

Dimension of Carton: 110* 60*30cm

Our Service

We are the manufacturer of Membrane Bioreactor NM-RMBR-1010, we can offer according to your client project requirement.
According to client requirement design the completely wastewater project treatment solution.

NM-RMBR-1530 Membrane Element Specification

Challenges / Limitations （Need Experienced and Good Designed)

Higher capital cost – membranes and associated equipment are more expensive.

Energy consumption – aeration and membrane scouring require more energy.

Membrane fouling – buildup of particles on membrane surface reduces performance and requires regular cleaning.

Maintenance – periodic chemical cleaning and eventual membrane replacement.

Application

MBR NM-MBR-1530 is widely used for industrial and sewage wastewater treatment, it’s ideal for capacity above 300m3/day.

Reduced footprint, usually 30-50% smaller than an equivalent conventional active sludge facility with secondary clarifiers and media tertiary filtration.
The process also produces exceptional effluent quality capable of meeting the most stringent water quality requirements, a modular schematic that allows for ease of expansion and configuration flexibility, a robust and reliable operation, and reduced downstream disinfection requirements.

The advantages of MBR in wastewater plant:

1.  Cost  Lower footprint ( space),  it’s especially for big city that land costly.
2.  High flow rate, easy cleaning and operation
3.  High Quality effluent
4.  Fully automatic, easy operation and management
5. Lower energy costs, reinforced hollow fibers
6. Customerized MBR Modular, according to your project requirement.

The Benifits of MBR Technology:

* System operates at a low pressure
* Removes bacteria and viruses
* Keeps essential minerals in water
* Installs quickly and easily
* Does not generate waste water
* An ultrafiltration system is eco-friendly. Ultrafiltration has a 90-95% recovery rate and can be used to treat wastewater for reuse. Using a home ultrafiltration water system benefits the environment by reducing the amount of plastic water bottles discarded in landfills.

Package

This MBR Element will be packaged in container or plywood case.

Our Service

1. We are the manufacturer of MBR Membrane, MBR System for waste water treatment, we can produce the products according to your requirements.

2. We Provides a full range of services , even small sewage treatment plant and water treatment equipment, sewage treatment plant from the design proposal, producing to installation and testing, even  after sale. We regard our customer as a long term business partner.

3. Equipment and project sample as your reference.
