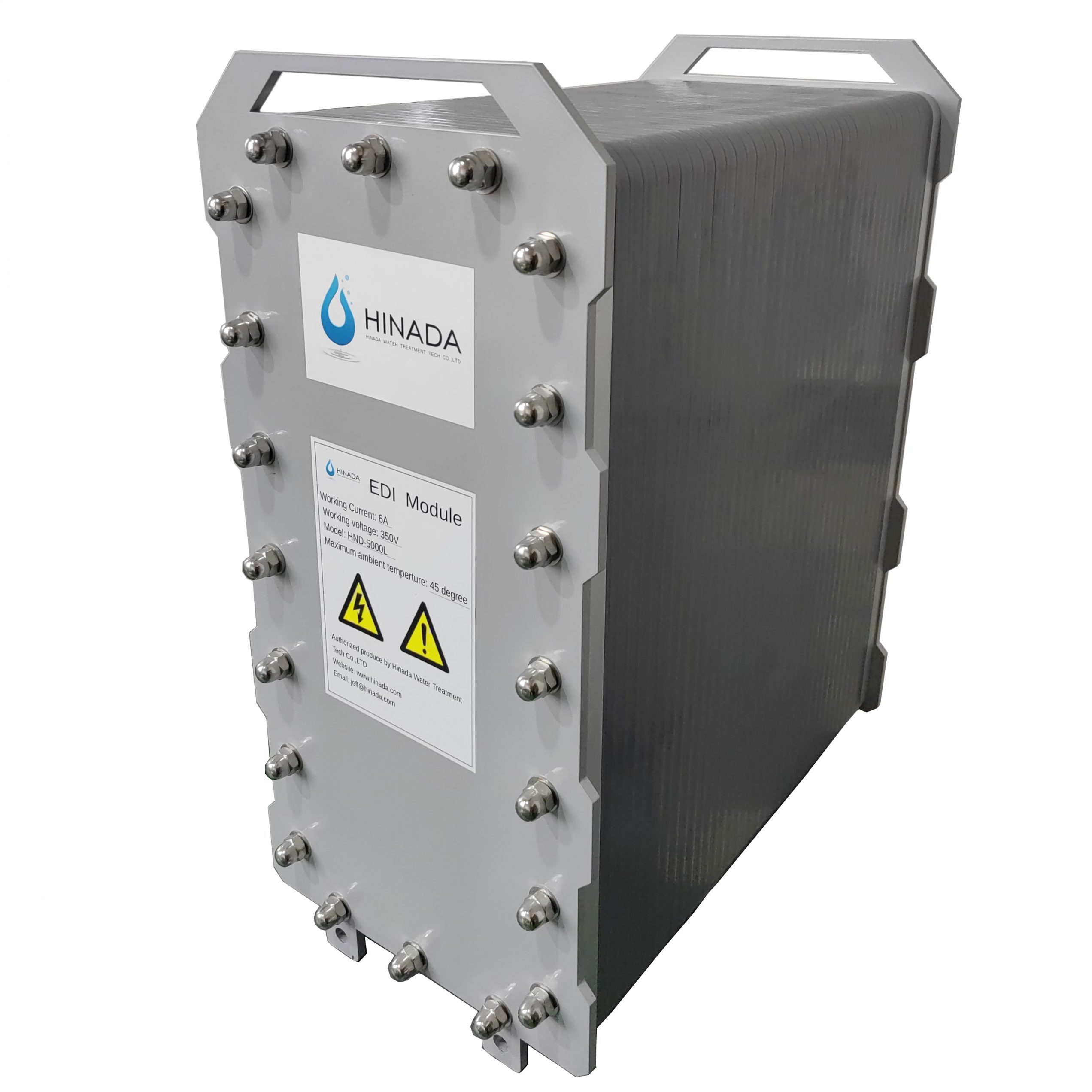

HND-5000L EDI Stacks EDI Modular

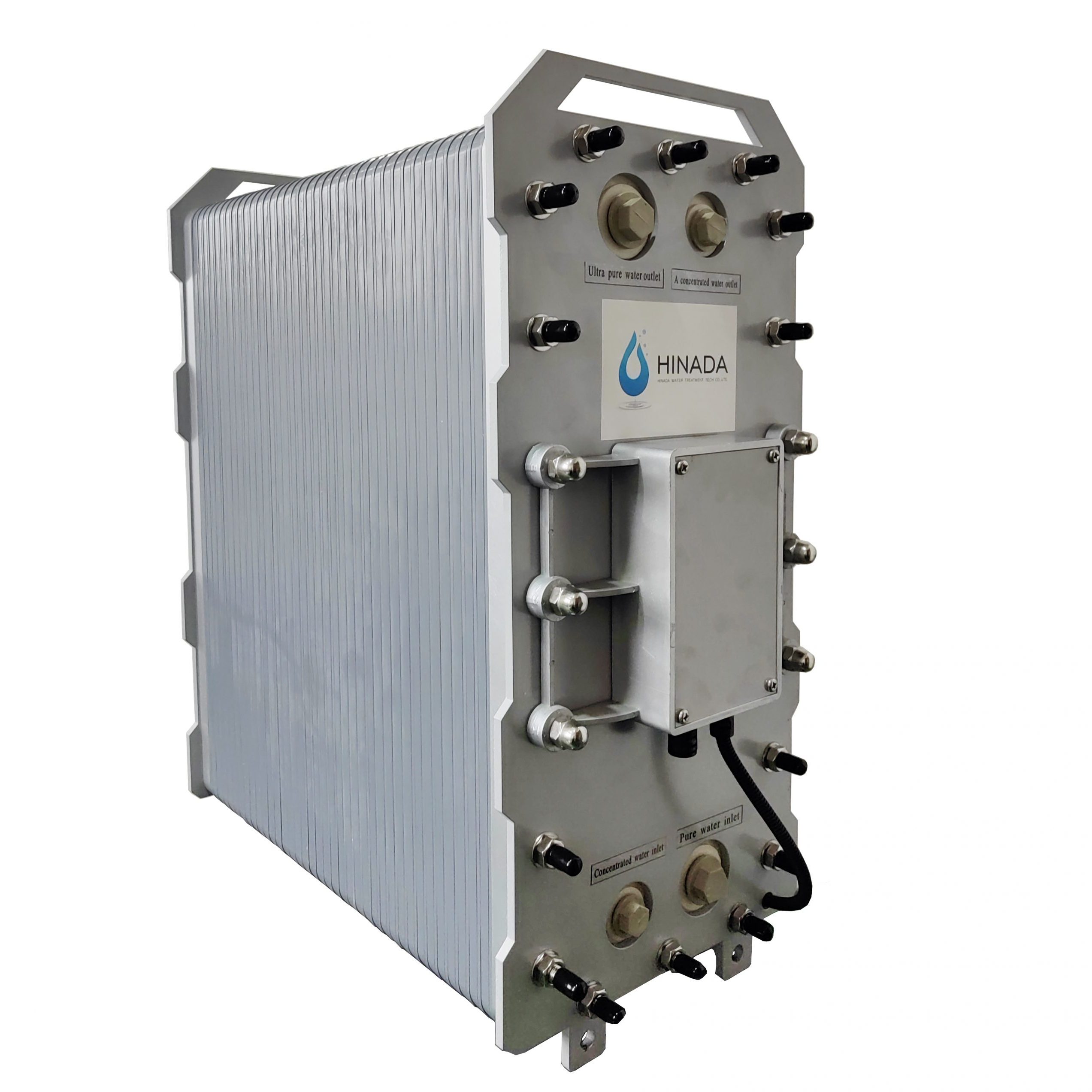

HND-5000L EDI Module
HND-5000L EDI Modules

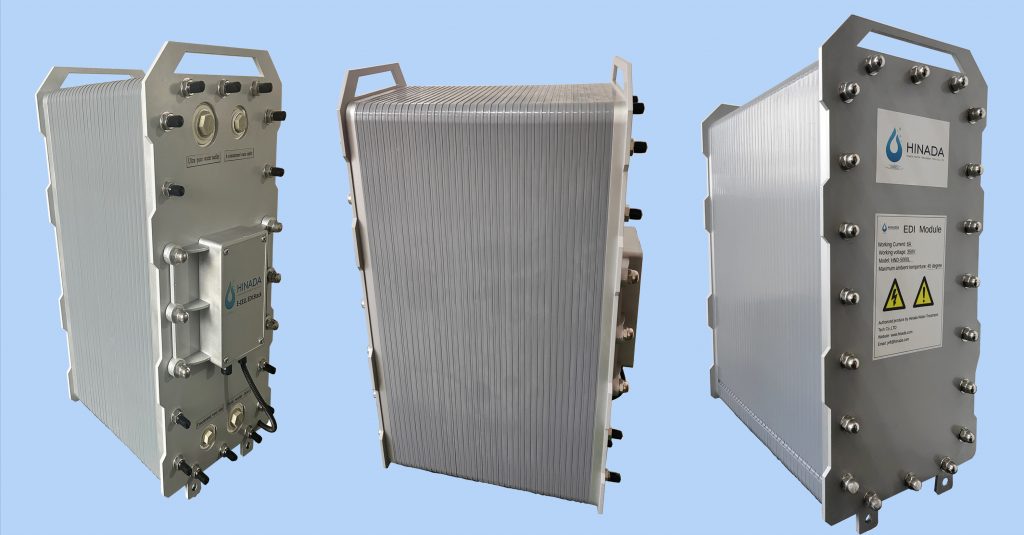

5000L EDI Stacks EDI Modular Electrodeionization

5000L EDI Stacks EDI Modular Electrodeionization

This EDI Modular with capacity of 5000LPH is a continuous, chemical-free process of removing ionized  and ionizable species from feedwater using DC Power to provide ultrapure water that the resisitivity above 15 MΩ.cm,  apply for pharmaceutical , biotechnology, electronic conductor industries and so on. EDI is typically used to polish reverse Osmosis (RO ) permeate, and is a smart alternative to- and effective replacement of- conventional mixed bed ion exchange(IX).

GET PRICING

Product Specification

5000L EDI Stacks EDI Modular Electrodeionization

This EDI Modular with capacity of 5000LPH is a continuous, chemical-free process of removing ionized  and ionizable species from feedwater using DC Power to provide ultrapure water that the resisitivity above 15 MΩ.cm,  apply for pharmaceutical , biotechnology, electronic conductor industries and so on. EDI is typically used to polish reverse Osmosis (RO ) permeate, and is a smart alternative to- and effective replacement of- conventional mixed bed ion exchange(IX).

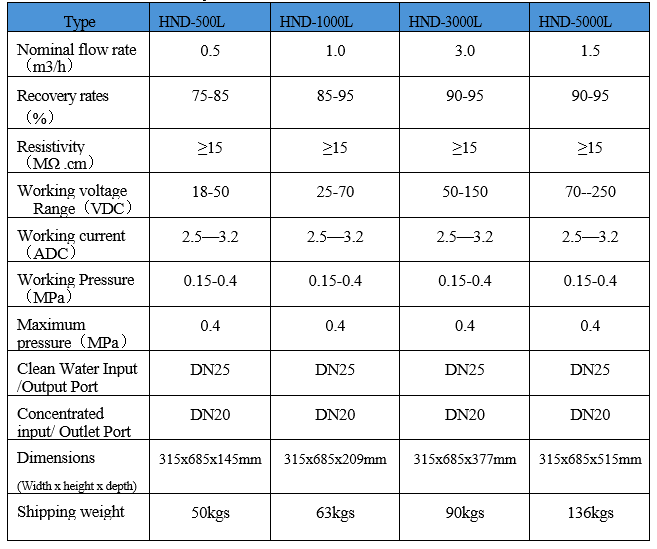

EDI Stacks Specification

Type HND-500L HND-1000L HND-3000L HND-5000L
Nominal flow rate(m3/h) 0.5 1.0 3.0 1.5
Recovery rates (%) 75-85 85-95 90-95 90-95
Resistivity(MΩ .cm) ≥15 ≥15 ≥15 ≥15
Working voltage Range(VDC) 18-50 25-70 50-150 70–250
Working current (ADC) 2.5-3.2 2.5-3.2 2.5-3.2 2.5-3.2
Working Pressure(MPa) 0.15-0.4 0.15-0.4 0.15-0.4 0.15-0.4
Maximum pressure(MPa) 0.4 0.4 0.4 0.4
Clean Water Input /Output Port DN25 DN25 DN25 DN25
Concentrated input/ Outlet Port DN20 DN20 DN20 DN20
Dimensions
(Width x height x depth)		 315x685x145mm 315x685x209mm 315x685x377mm 315x685x515mm
Shipping weight 50kgs 63kgs 90kgs 136kgs

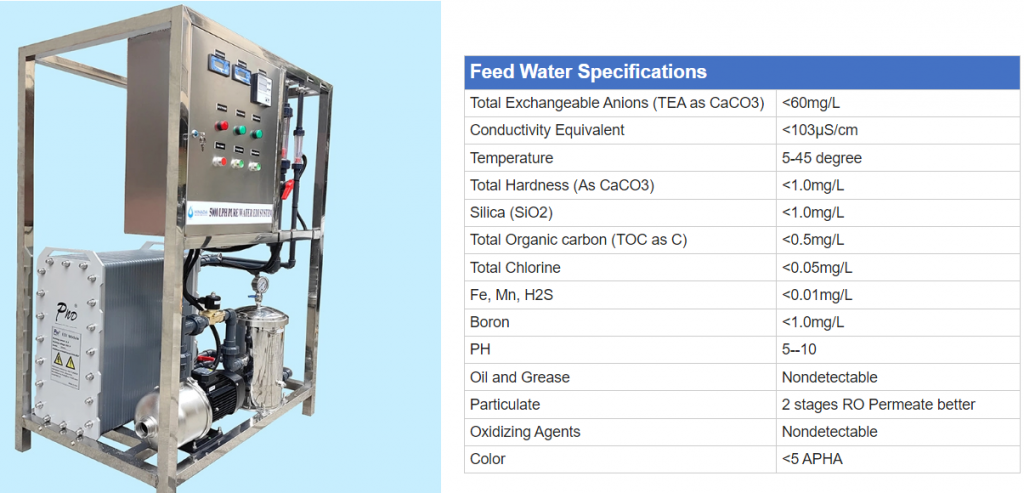

 EDI System Feed Water Specifications:

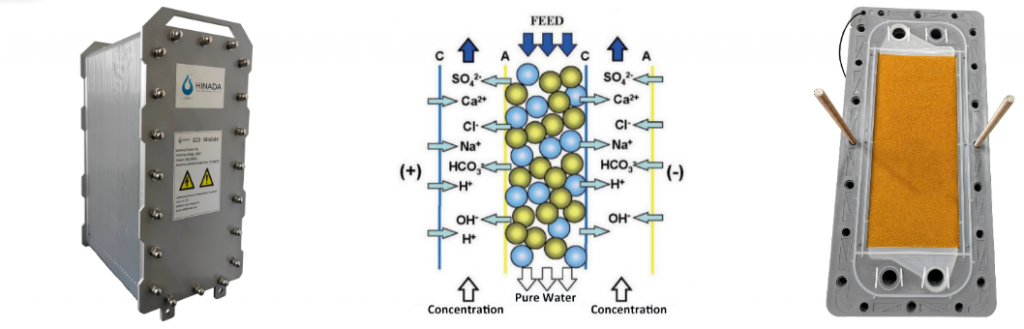

EDI Modular treatment Process:

The EDI Modular has many advantages:

* Remove expensive and hazardous chemicals used in ion-exchange resin regeneration

* Save energy and operating cost

* Low facility size requirement

Application

Typical Applications

The product water from EDI in applications such as:

* Water for injection

* Pharmaceutical purified water

* Laboratory purified water systems

* Biotechnology industries

* electronic conductor industries and so on

Benifits

Electrodeionization (EDI) is a continuous, chemical-free process of removing ionized and ionizable species from feedwater using DC power to provide ultrapure water for the pharmaceutical and  biotechnology industries. EDI is typically used to polish reverse osmosis (RO) permeate at recovery rate above 90%, the EDI permeate Resistivity can be around 17.52 Ω (omega), and is a smart alternative to — and effective replacement of — conventional mixed bed ion exchange (IX)



* 10 Years custom EDI Module and EDI water treatment system designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
* Standard designs according your application, requirement and budget, we are one of leading EDI system manufacturers in China, we can produce and accept any special requirement orders.

Packaging

Plywood case packed or in container loading.

Our Service

We are the manufacturer of EDI Module and EDI Package Water System, we can offer according to your project requirement.
Offer installation and commissioning support.

Specifications

Product Specification

5000L EDI Stacks EDI Modular Electrodeionization

This EDI Modular with capacity of 5000LPH is a continuous, chemical-free process of removing ionized  and ionizable species from feedwater using DC Power to provide ultrapure water that the resisitivity above 15 MΩ.cm,  apply for pharmaceutical , biotechnology, electronic conductor industries and so on. EDI is typically used to polish reverse Osmosis (RO ) permeate, and is a smart alternative to- and effective replacement of- conventional mixed bed ion exchange(IX).

EDI Stacks Specification

Type HND-500L HND-1000L HND-3000L HND-5000L
Nominal flow rate(m3/h) 0.5 1.0 3.0 1.5
Recovery rates (%) 75-85 85-95 90-95 90-95
Resistivity(MΩ .cm) ≥15 ≥15 ≥15 ≥15
Working voltage Range(VDC) 18-50 25-70 50-150 70–250
Working current (ADC) 2.5-3.2 2.5-3.2 2.5-3.2 2.5-3.2
Working Pressure(MPa) 0.15-0.4 0.15-0.4 0.15-0.4 0.15-0.4
Maximum pressure(MPa) 0.4 0.4 0.4 0.4
Clean Water Input /Output Port DN25 DN25 DN25 DN25
Concentrated input/ Outlet Port DN20 DN20 DN20 DN20
Dimensions
(Width x height x depth)		 315x685x145mm 315x685x209mm 315x685x377mm 315x685x515mm
Shipping weight 50kgs 63kgs 90kgs 136kgs

 EDI System Feed Water Specifications:


EDI Modular treatment Process:

The EDI Modular has many advantages:

* Remove expensive and hazardous chemicals used in ion-exchange resin regeneration

* Save energy and operating cost

* Low facility size requirement

Application

Application

Typical Applications

The product water from EDI in applications such as:

* Water for injection

* Pharmaceutical purified water

* Laboratory purified water systems

* Biotechnology industries

* electronic conductor industries and so on

Benefits

Benifits

Electrodeionization (EDI) is a continuous, chemical-free process of removing ionized and ionizable species from feedwater using DC power to provide ultrapure water for the pharmaceutical and  biotechnology industries. EDI is typically used to polish reverse osmosis (RO) permeate at recovery rate above 90%, the EDI permeate Resistivity can be around 17.52 Ω (omega), and is a smart alternative to — and effective replacement of — conventional mixed bed ion exchange (IX)



* 10 Years custom EDI Module and EDI water treatment system designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
* Standard designs according your application, requirement and budget, we are one of leading EDI system manufacturers in China, we can produce and accept any special requirement orders.

Packaging

Packaging

Plywood case packed or in container loading.

Our Service

Our Service

We are the manufacturer of EDI Module and EDI Package Water System, we can offer according to your project requirement.
Offer installation and commissioning support.

EDI Video

Send Inquiry To Us

[contact-form-7]

How to EDI Module for ultrapure water system?

The EDI Module Cell Stack will produce above 16 MOhm.cm water or 10 MOhm.cm

provided the feed water meets the Feed Water Specifications and the system is operated according to the Operating Instructions. In industrial, no hot water sanitization applications, our EDI Module can also produce 16 MOhm.cm water. For product water quality for your specific project.

The post 5000L EDI Stacks EDI Modular Electrodeionization appeared first on Hinada.

]]> 3000LPH EDI Module Electrodeionization System for pure water https://www.hinada.com/product/3000lph-edi-module-electrodeionization-system-for-pure-water/ Wed, 10 Apr 2024 12:43:23 +0000 https://www.hinada.com/?post_type=dt_portfolio&p=68497 The post 3000LPH EDI Module Electrodeionization System for pure water appeared first on Hinada.

]]>
3000LPH EDI Module Electrodeionization
3000LPH EDI Module Electrodeionization
3000LPH EDI Module Electrodeionization
3000LPH EDI Module Electrodeionization

3000LPH EDI Module Electrodeionization System for pure water

This EDI Modular with capacity of 3000LPH is a continuous, chemical-free process of removing ionized  and ionizable species from feedwater using DC Power to provide ultrapure water that the resisitivity above 15 MΩ.cm,  apply for pharmaceutical , biotechnology, electronic conductor industries and so on. EDI is typically used to polish reverse Osmosis (RO ) permeate, and is a smart alternative to- and effective replacement of- conventional mixed bed ion exchange(IX).

GET PRICING

Product Specification

3000LPH EDI Module Electrodeionization System for pure water

This EDI Modular with capacity of 3000LPH is a continuous, chemical-free process of removing ionized  and ionizable species from feedwater using DC Power to provide ultrapure water that the resisitivity above 15 MΩ.cm,  apply for pharmaceutical , biotechnology, electronic conductor industries and so on. EDI is typically used to polish reverse Osmosis (RO ) permeate, and is a smart alternative to- and effective replacement of- conventional mixed bed ion exchange(IX).

EDI Stacks Specification

Type HND-500L HND-1000L HND-3000L HND-5000L
Nominal flow rate(m3/h) 0.5 1.0 3.0 1.5
Recovery rates (%) 75-85 85-95 90-95 90-95
Resistivity(MΩ .cm) ≥15 ≥15 ≥15 ≥15
Working voltage Range(VDC) 18-50 25-70 50-150 70–250
Working current (ADC) 2.5-3.2 2.5-3.2 2.5-3.2 2.5-3.2
Working Pressure(MPa) 0.15-0.4 0.15-0.4 0.15-0.4 0.15-0.4
Maximum pressure(MPa) 0.4 0.4 0.4 0.4
Clean Water Input /Output Port DN25 DN25 DN25 DN25
Concentrated input/ Outlet Port DN20 DN20 DN20 DN20
Dimensions
(Width x height x depth)		 315x685x145mm 315x685x209mm 315x685x377mm 315x685x515mm
Shipping weight 50kgs 63kgs 90kgs 136kgs

 EDI System Feed Water Specifications:


EDI Modular treatment Process:

The EDI Modular has many advantages:

* Remove expensive and hazardous chemicals used in ion-exchange resin regeneration

* Save energy and operating cost

* Low facility size requirement

Typical Applications

The product water from EDI in applications such as:

* Water for injection

* Pharmaceutical purified water

* Laboratory purified water systems

* Biotechnology industries

* electronic conductor industries and so on

Benifits

Electrodeionization (EDI) is a continuous, chemical-free process of removing ionized and ionizable species from feedwater using DC power to provide ultrapure water for the pharmaceutical and  biotechnology industries. EDI is typically used to polish reverse osmosis (RO) permeate at recovery rate above 90%, the EDI permeate Resistivity can be around 17.52 Ω (omega), and is a smart alternative to — and effective replacement of — conventional mixed bed ion exchange (IX)



* 10 Years custom EDI Module and EDI water treatment system designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
* Standard designs according your application, requirement and budget, we are one of leading EDI system manufacturers in China, we can produce and accept any special requirement orders.

Packaging

Plywood case packed or in container loading.

Our Service

We are the manufacturer of EDI Module and EDI Package Water System, we can offer according to your project requirement.
Offer installation and commissioning support.

Specifications

Product Specification

3000LPH EDI Module Electrodeionization System for pure water

This EDI Modular with capacity of 3000LPH is a continuous, chemical-free process of removing ionized  and ionizable species from feedwater using DC Power to provide ultrapure water that the resisitivity above 15 MΩ.cm,  apply for pharmaceutical , biotechnology, electronic conductor industries and so on. EDI is typically used to polish reverse Osmosis (RO ) permeate, and is a smart alternative to- and effective replacement of- conventional mixed bed ion exchange(IX).

EDI Stacks Specification

Type HND-500L HND-1000L HND-3000L HND-5000L
Nominal flow rate(m3/h) 0.5 1.0 3.0 1.5
Recovery rates (%) 75-85 85-95 90-95 90-95
Resistivity(MΩ .cm) ≥15 ≥15 ≥15 ≥15
Working voltage Range(VDC) 18-50 25-70 50-150 70–250
Working current (ADC) 2.5-3.2 2.5-3.2 2.5-3.2 2.5-3.2
Working Pressure(MPa) 0.15-0.4 0.15-0.4 0.15-0.4 0.15-0.4
Maximum pressure(MPa) 0.4 0.4 0.4 0.4
Clean Water Input /Output Port DN25 DN25 DN25 DN25
Concentrated input/ Outlet Port DN20 DN20 DN20 DN20
Dimensions
(Width x height x depth)		 315x685x145mm 315x685x209mm 315x685x377mm 315x685x515mm
Shipping weight 50kgs 63kgs 90kgs 136kgs

 EDI System Feed Water Specifications:


EDI Modular treatment Process:

The EDI Modular has many advantages:

* Remove expensive and hazardous chemicals used in ion-exchange resin regeneration

* Save energy and operating cost

* Low facility size requirement

Application

Typical Applications

The product water from EDI in applications such as:

* Water for injection

* Pharmaceutical purified water

* Laboratory purified water systems

* Biotechnology industries

* electronic conductor industries and so on

Benefits

Benifits

Electrodeionization (EDI) is a continuous, chemical-free process of removing ionized and ionizable species from feedwater using DC power to provide ultrapure water for the pharmaceutical and  biotechnology industries. EDI is typically used to polish reverse osmosis (RO) permeate at recovery rate above 90%, the EDI permeate Resistivity can be around 17.52 Ω (omega), and is a smart alternative to — and effective replacement of — conventional mixed bed ion exchange (IX)



* 10 Years custom EDI Module and EDI water treatment system designing experiences, we can design and install as your any project requirements, reduce your projects investing cost.
* Standard designs according your application, requirement and budget, we are one of leading EDI system manufacturers in China, we can produce and accept any special requirement orders.

Packaging

Packaging

Plywood case packed or in container loading.

Our Service

Our Service

We are the manufacturer of EDI Module and EDI Package Water System, we can offer according to your project requirement.
Offer installation and commissioning support.

EDI Module Video

Send Inquiry To Us

[contact-form-7]

The post 3000LPH EDI Module Electrodeionization System for pure water appeared first on Hinada.

]]> EDI Module (Electrodeionization System) https://www.hinada.com/product/edi-module-electrodeionization-system/ Wed, 04 Aug 2021 08:08:25 +0000 https://www.hinada.com/?post_type=dt_portfolio&p=51018 The post EDI Module (Electrodeionization System) appeared first on Hinada.

]]>
EDI Module

EDI Module (Electrodeionization System)

EDI Module (Electrodeionization System)

Specifications:

  • EDI module
  • water resistivity：15—18MΩ .cm
  • PH：6.5—7.5
  • Silica (SiO2): 3-20ppm

Application: include power generation, metal finishing, electronics fabrication, and more.

Feature: Reverse osmosis and electrodeionization technology
no regeneration chemicals required.
Worldwide Support.
Cost-Effective.
Packaged Systems.
10 Years of Experience.

GET PRICING

Description

EDI Module (Electrodeionization System)

EDI Module (Electrodeionization system) is a continuous process that utilizes an applied current to remove ionized and ionizable species from a water source while continuously regenerating the ion exchange media. There are many advantages:

* Remove expensive and hazardous chemicals used in ion-exchange resin regeneration

* Save energy and operating cost

* Low facility size requirement

* Help plants to meet ISO14000 requirements

The EDI Module Specification

Item Capacity

(L/H)

 Recovery Rate (%) Output Resistivity (MΩ.cm) Voltage

(V)

 Current

(A)

 Dimension

(L*H*W)
EDI-100L 100 90 15-18 30-45 0.5-1 220mm*580mm*150mm
PND -100V6A EDI Power, display, cable, and other accessories 220V, DC100V, 6A and 600W 480mm*88mm*370mm
EDI-500L 500 95 15-18 20-50 2.5-4 295mm*642mm*135mm
PND -100V6A EDI Power, display, cable, and other accessories 220V, DC100V, 6A and 600W 480mm*88mm*370mm
EDI -1000L 1000 95 15-18 30-60 2.5-4 295mm*642mm*195mm
PND -100V6A EDI Power, display, cable, and other accessories 220V, DC100V, 6A and 600W 480mm*88mm*370mm
EDI -2000L 2000 95 15-18 60-100 2.5-4 295mm*642mm*257mm
PND -150V6A EDI Power, display, cable, and other accessories 220V, DC100V, 6A and 600W 480mm*88mm*370mm
EDI-3000L 3000 95 15-18 90-140 2.5-4 295mm*642mm*348mm
PND-200V6A EDI Power, display, cable, and other accessories 220V, DC100V, 6A and 600W          480mm*88mm*370mm
EDI -4000L 4000 95 15-18 100-200 2.5-4 295mm*642mm*384mm
PND -200V6A EDI Power, display, cable, and other accessories 220V, DC100V, 6A and 600W 480mm*88mm*370mm
EDI -5000L 5000 95 15-18 100-200 2.5-4 295mm*642mm*384mm
PND -200V6A EDI Power, display, cable, and other accessories 220V, DC100V, 6A and 600W 480mm*88mm*370mm

Futher information or price please contact with us–Hinada.

Input water quality standards

In order to make sure the best permeate of the EDI  System, It’s better the input water quality meets the below table :

Raw Water Output of RO System, the Conductivity ≤ 10 μ/ cm
PH  value 6.5—7.5
Temperature 5℃–38℃
Working Pressure 0.15—0.4MPa
Hardness ≤1ppm(Take CaCO3 as sample test)
organic matter TOC <0.5ppm,it’s better none
Oxidant active chlorine（Cl2）< 0.05ppm；ozone（O3）< 0.02ppm
Heavy metals ions  < 0.01ppm (including Fe, Mn)
Silicon < 0.5ppm(by SiO2 )
 CO2 CO2< 3ppm, if the CO2 > 3ppm , you can useNaOH  adjust the PH value
Particle ≤1μ m



          5000LPH EDI Modular

5000LPH EDI Modular

Application

When fed with low total dissolved solids (TDS) feed (e.g., feed purified by RO), the EDI System output can reach very high purity levels (e.g., [[Purified water#Electrical Conductivity|18 megohms/cm], Resistivity / Conductivity Measurement of Purified Water. The ion exchange resins act to retain the ions, allowing these to be transported across the ion exchange membranes.
The main applications of EDI technology, are widely in electronics, pharmaceuticals and power generation.

Benifits

* System operates at a low pressure
* No regeneration chemicals required
* Cost-Effective
* Installs quickly and easily
* Does not generate waste water
* Hinada has 8 years experience of make the EDI System and Operation .

Plywood case packages

Our Service

We are manufacturer of EDI Module and EDI System use USA Technology PND Brand;  we can offer according to your project requirement, Hinada can offer professional solution designation, sophisticated installation, good training and efficient after-sales service according customer’s requirements

30m3/hour EDI System Operation Video

Purified Water System RO Plant and EDI

Description:

Description

EDI Module (Electrodeionization System)

EDI Module (Electrodeionization system) is a continuous process that utilizes an applied current to remove ionized and ionizable species from a water source while continuously regenerating the ion exchange media. There are many advantages:

* Remove expensive and hazardous chemicals used in ion-exchange resin regeneration

* Save energy and operating cost

* Low facility size requirement

* Help plants to meet ISO14000 requirements

The EDI Module Specification

Item Capacity

(L/H)

 Recovery Rate (%) Output Resistivity (MΩ.cm) Voltage

(V)

 Current

(A)

 Dimension

(L*H*W)
EDI-100L 100 90 15-18 30-45 0.5-1 220mm*580mm*150mm
PND -100V6A EDI Power, display, cable, and other accessories 220V, DC100V, 6A and 600W 480mm*88mm*370mm
EDI-500L 500 95 15-18 20-50 2.5-4 295mm*642mm*135mm
PND -100V6A EDI Power, display, cable, and other accessories 220V, DC100V, 6A and 600W 480mm*88mm*370mm
EDI -1000L 1000 95 15-18 30-60 2.5-4 295mm*642mm*195mm
PND -100V6A EDI Power, display, cable, and other accessories 220V, DC100V, 6A and 600W 480mm*88mm*370mm
EDI -2000L 2000 95 15-18 60-100 2.5-4 295mm*642mm*257mm
PND -150V6A EDI Power, display, cable, and other accessories 220V, DC100V, 6A and 600W 480mm*88mm*370mm
EDI-3000L 3000 95 15-18 90-140 2.5-4 295mm*642mm*348mm
PND-200V6A EDI Power, display, cable, and other accessories 220V, DC100V, 6A and 600W          480mm*88mm*370mm
EDI -4000L 4000 95 15-18 100-200 2.5-4 295mm*642mm*384mm
PND -200V6A EDI Power, display, cable, and other accessories 220V, DC100V, 6A and 600W 480mm*88mm*370mm
EDI -5000L 5000 95 15-18 100-200 2.5-4 295mm*642mm*384mm
PND -200V6A EDI Power, display, cable, and other accessories 220V, DC100V, 6A and 600W 480mm*88mm*370mm

Futher information or price please contact with us–Hinada.

Input water quality standards

In order to make sure the best permeate of the EDI  System, It’s better the input water quality meets the below table :

Raw Water Output of RO System, the Conductivity ≤ 10 μ/ cm
PH  value 6.5—7.5
Temperature 5℃–38℃
Working Pressure 0.15—0.4MPa
Hardness ≤1ppm(Take CaCO3 as sample test)
organic matter TOC <0.5ppm,it’s better none
Oxidant active chlorine（Cl2）< 0.05ppm；ozone（O3）< 0.02ppm
Heavy metals ions  < 0.01ppm (including Fe, Mn)
Silicon < 0.5ppm(by SiO2 )
 CO2 CO2< 3ppm, if the CO2 > 3ppm , you can useNaOH  adjust the PH value
Particle ≤1μ m



          5000LPH EDI Modular

5000LPH EDI Modular

Application

Application

When fed with low total dissolved solids (TDS) feed (e.g., feed purified by RO), the EDI System output can reach very high purity levels (e.g., [[Purified water#Electrical Conductivity|18 megohms/cm], Resistivity / Conductivity Measurement of Purified Water. The ion exchange resins act to retain the ions, allowing these to be transported across the ion exchange membranes.
The main applications of EDI technology, are widely in electronics, pharmaceuticals and power generation.

Benefits

Benifits

* System operates at a low pressure
* No regeneration chemicals required
* Cost-Effective
* Installs quickly and easily
* Does not generate waste water
* Hinada has 8 years experience of make the EDI System and Operation .

Packaging

Plywood case packages

Our Service

Our Service

We are manufacturer of EDI Module and EDI System use USA Technology PND Brand;  we can offer according to your project requirement, Hinada can offer professional solution designation, sophisticated installation, good training and efficient after-sales service according customer’s requirements

Video

30m3/hour EDI System Operation Video

Purified Water System RO Plant and EDI

Send Inquiry To Us

[contact-form-7]

The post EDI Module (Electrodeionization System) appeared first on Hinada.

]]> High Purity Water Systems – Electrodeionization System https://www.hinada.com/product/high-purity-water-systems-electrodeionization-system/ Tue, 27 Apr 2021 14:58:02 +0000 https://www.hinada.com/?post_type=dt_portfolio&p=49862 The post High Purity Water Systems – Electrodeionization System appeared first on Hinada.

]]>
High Purity Water Systems - Electrodeionization System

High Purity Water Systems - Electrodeionization System

High Purity Water Systems – Electrodeionization System



Product Specifications:

  • EDI module
  • water resistivity：15—18MΩ .cm
  • PH：6.5—7.5
  • Silica (SiO2): 3-20ppm

Application: include power generation, metal finishing, electronics fabrication, and more.

Feature: Reverse osmosis and electrodeionization technology
no regeneration chemicals required.
Worldwide Support.
Cost-Effective.
Packaged Systems.
10 Years of Experience.

GET PRICING

Product Specification

EDI Module Specifications:

Type PND-500L PND-1000L PND-2000L PND-3000L
water flow rate

（m3/h）

 0.5 1.0 2.0 3.0
recovery rates （%） 75-85 85-95 90-95 90-95
resistivity（M Ω .cm） ≥15 ≥15 ≥15 ≥15
Working voltage

（VDC）

 20-50 30-60 50-100 70-140
Working current

（ADC）

 4.0 4.0 4.0 4.0
design voltage

（VDC）

 ≤         200 ≤         200 ≤         200 ≤         200
design current

（ADC）

 ≤         5.0 ≤         5.0 ≤         5.0 ≤         5.0
Working Pressure

（MPa）

 0.15-0.4 0.15-0.4 0.15-0.4 0.15-0.4
Maximum pressure

（MPa）

 0.4 0.4 0.4 0.4
Connection dimensions DN25 DN25 DN25 DN25
Concentrated/ outlet DN25 DN25 DN25 DN25



Input water quality standards

In order to make sure the best treatment of the EDI  System, It’s better the input water quality meets the below table :

Raw Water Output of RO System, the Conductivity ≤ 10 μ/ cm
PH  value 6.5—7.5
Temperature 5℃–38℃
Working Pressure 0.15—0.4MPa
Hardness ≤1ppm(Take CaCO3 as sample test)
organic matter TOC <0.5ppm,it’s better none
Oxidant active chlorine（Cl2）< 0.05ppm；

ozone（O3）< 0.02ppm
Heavy metals ions  < 0.01ppm (including Fe, Mn)
Silicon < 0.5ppm(by SiO2 )
 CO2 CO2< 3ppm, if the CO2 > 3ppm , you can use

NaOH  adjust the PH value
Particle ≤1μ m



Running parameter
Frequency：      50 Hz
Input Voltage： 220V    AC
Output Voltage：  0 –  200 VDC
Output current：  0- 6.5A
 power consumption：≤ 8 W
Working temperature： 0-45℃

Application

*When fed with low total dissolved solids (TDS) feed (e.g., feed purified by RO), the EDI System output can reach very high purity levels (e.g., [[Purified water#Electrical Conductivity|18 megohms/cm], Resistivity / Conductivity Measurement of Purified Water. The ion exchange resins act to retain the ions, allowing these to be transported across the ion exchange membranes. The main applications of EDI technology, are widely in electronics, pharmaceuticals and power generation.

Benifits

* System operates at a low pressure
* No regeneration chemicals required
* Cost-Effective
* Installs quickly and easily
* Does not generate waste water
* Hinada has 8 years experience of make the EDI System and Operation .

Packaging

Plywood carton packaged.

Our Service

We are the professional manufacturer of Electrodeionization system, we can offer according to your client requirement.

Purified Water System RO Plant and EDI

Specifications

Product Specification

EDI Module Specifications:

Type PND-500L PND-1000L PND-2000L PND-3000L
water flow rate

（m3/h）

 0.5 1.0 2.0 3.0
recovery rates （%） 75-85 85-95 90-95 90-95
resistivity（M Ω .cm） ≥15 ≥15 ≥15 ≥15
Working voltage

（VDC）

 20-50 30-60 50-100 70-140
Working current

（ADC）

 4.0 4.0 4.0 4.0
design voltage

（VDC）

 ≤         200 ≤         200 ≤         200 ≤         200
design current

（ADC）

 ≤         5.0 ≤         5.0 ≤         5.0 ≤         5.0
Working Pressure

（MPa）

 0.15-0.4 0.15-0.4 0.15-0.4 0.15-0.4
Maximum pressure

（MPa）

 0.4 0.4 0.4 0.4
Connection dimensions DN25 DN25 DN25 DN25
Concentrated/ outlet DN25 DN25 DN25 DN25



Input water quality standards

In order to make sure the best treatment of the EDI  System, It’s better the input water quality meets the below table :

Raw Water Output of RO System, the Conductivity ≤ 10 μ/ cm
PH  value 6.5—7.5
Temperature 5℃–38℃
Working Pressure 0.15—0.4MPa
Hardness ≤1ppm(Take CaCO3 as sample test)
organic matter TOC <0.5ppm,it’s better none
Oxidant active chlorine（Cl2）< 0.05ppm；

ozone（O3）< 0.02ppm
Heavy metals ions  < 0.01ppm (including Fe, Mn)
Silicon < 0.5ppm(by SiO2 )
 CO2 CO2< 3ppm, if the CO2 > 3ppm , you can use

NaOH  adjust the PH value
Particle ≤1μ m



Running parameter
Frequency：      50 Hz
Input Voltage： 220V    AC
Output Voltage：  0 –  200 VDC
Output current：  0- 6.5A
 power consumption：≤ 8 W
Working temperature： 0-45℃

Application

Application

*When fed with low total dissolved solids (TDS) feed (e.g., feed purified by RO), the EDI System output can reach very high purity levels (e.g., [[Purified water#Electrical Conductivity|18 megohms/cm], Resistivity / Conductivity Measurement of Purified Water. The ion exchange resins act to retain the ions, allowing these to be transported across the ion exchange membranes. The main applications of EDI technology, are widely in electronics, pharmaceuticals and power generation.

Benefits

Benifits

* System operates at a low pressure
* No regeneration chemicals required
* Cost-Effective
* Installs quickly and easily
* Does not generate waste water
* Hinada has 8 years experience of make the EDI System and Operation .

Packaging

Packaging

Plywood carton packaged.

Our Service

Our Service

We are the professional manufacturer of Electrodeionization system, we can offer according to your client requirement.

Video

Purified Water System RO Plant and EDI

Send Inquiry To Us

Submit

The post High Purity Water Systems – Electrodeionization System appeared first on Hinada.

]]> EDI Module EDI System https://www.hinada.com/product/edi-module-edi-system/ Fri, 10 May 2019 11:31:14 +0000 https://www.hinada.com/?post_type=dt_portfolio&p=40280 The post EDI Module EDI System appeared first on Hinada.

]]>
3000LPH EDI Stack Hinada
50m3 per Hour EDI System for Ultrapure Water
5000LPH Pure Water EDI System

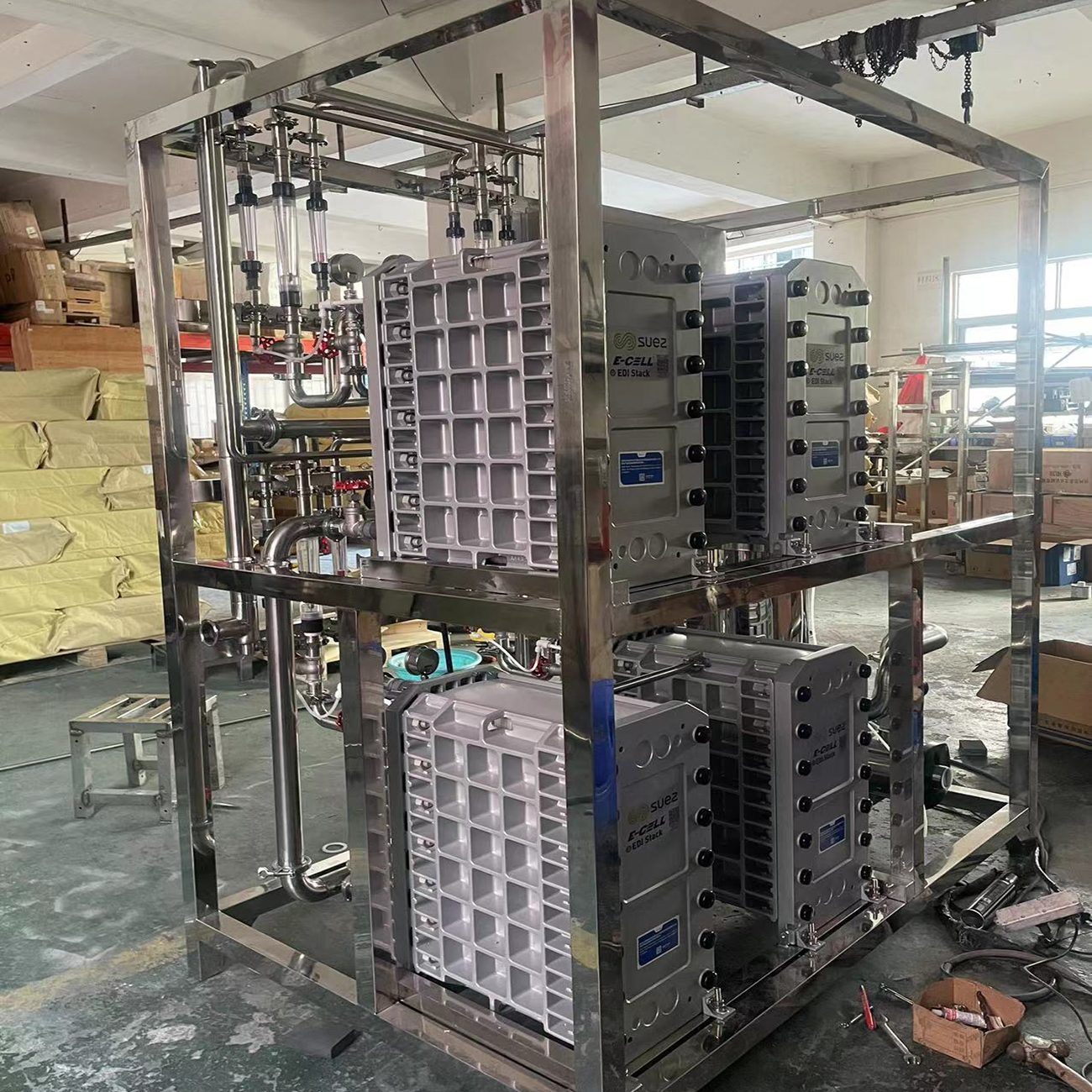

SUEZ E-Cell EDI Stack for pure Water

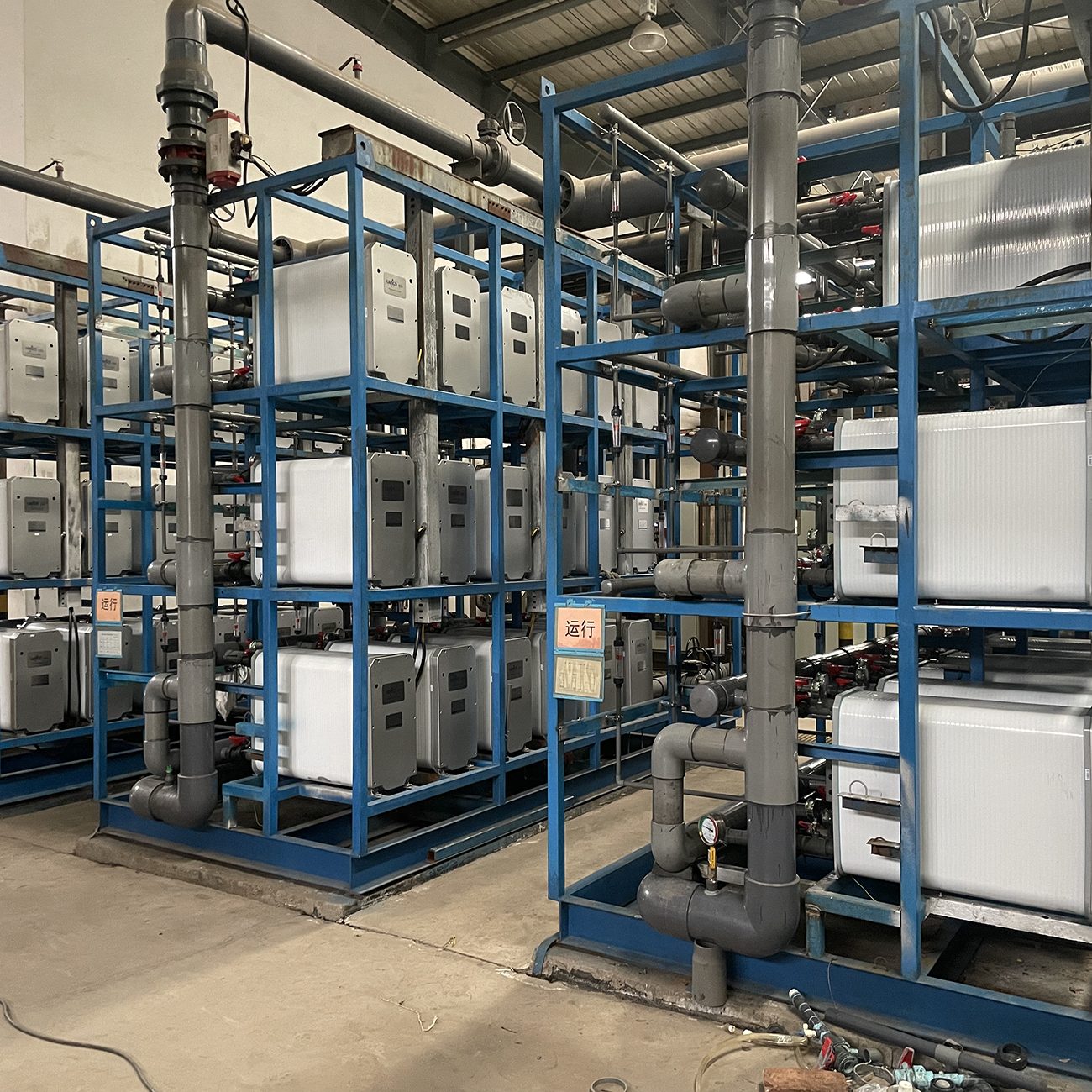

Ultrapure EDI System for Power Station

EDI Module EDI System

Electrodeionization (EDI) is a continuous, chemical-free process of removing ionized and ionizable species from feedwater using DC power to provide ultrapure water for the pharmaceutical and biotechnology industries. EDI is typically used to polish reverse osmosis (RO) permeate at recovery rate above 90%, the EDI permeate Resistivity can be around 17.52 Ω (omega), and is a smart alternative to — and effective replacement of — conventional mixed bed ion exchange (IX)

EDI module EDI System output water quality:
water resistivity：15—18MΩ .cm

PH：6.5—7.5

Silica (SiO2): 3-20ppb

GET PRICINGDownload EDI Brochure

EDI Module Specification

Electrodeionization is a water treatment technology that utilizes an electrode to ionize water molecules and separate dissolved ions (impurities) from water. It differs from other water purification technologies in that it is done without the use of chemical treatments and is usually a tertiary treatment to reverse osmosis (RO)

EDI Resin

 Input water quality standards

In order to meet the target of quality Ultrapure water standards and long lifetime of  EDI stacks, It’s better the input water quality meets the below table :

EDI Permeate

    EDI Stacks Specification

EDI Stacks and EDI System

  EDI System Features

  •   Low Operating Cost
  •   Stable Product Water Quality
  •   PLC Controlled System
  •   No Regeneration Chemicals consumption required
  •   Minimal space requirement with its compact design
  •   Long Lifetime of EDI Stacks, at least 3—5 years

Application

EDI Electrodeionization Modules are useful for any application that requires constant and economic removal of water impurities without using dangerous chemical. Some examples are:

* Reuse of residual water in food and beverages industry
* Chemical production
* Biotechnology
* Electronics
* Cosmetic
* Laboratories
* Pharmaceutical industry
* Boiler Feed Water
* Reduction of ionizable SiO2 and TOC (total organic carbon)

For ease of design and additional confidence in your EDI Application, we offer quality assurance and performance guarantees.

10m3/Hour EDI System treatment process

Benifits

* Hinada EDI systems and modules provide key advantages compared to traditional ion-exchange processes:
* Eliminates expensive and hazardous chemicals used in ion-exchange resin regeneration
* Reduces energy and operating expenses
* Reduces the facility size requirement
* Helps plants meet output waterstandard requirements

 EDI Module EDI System Packaging

Plywood case packaged, different size the weight and volume different.

Our Service

* Hinada is EDI electrodeionization modules supplier, we have advanced technology and good after-sales service.

Hinada can also provide the complete EDI System for pure water, offer designation, supply and commissioning service.

EDI Module and EDI System with 3 years warranty.

Purified Water System RO Plant and EDI

https://youtu.be/g-gDqT90VdY
Specifications

EDI Module Specification

Electrodeionization is a water treatment technology that utilizes an electrode to ionize water molecules and separate dissolved ions (impurities) from water. It differs from other water purification technologies in that it is done without the use of chemical treatments and is usually a tertiary treatment to reverse osmosis (RO)

EDI Resin

 Input water quality standards

In order to meet the target of quality Ultrapure water standards and long lifetime of  EDI stacks, It’s better the input water quality meets the below table :

EDI Permeate

    EDI Stacks Specification

EDI Stacks and EDI System

  EDI System Features

  •   Low Operating Cost
  •   Stable Product Water Quality
  •   PLC Controlled System
  •   No Regeneration Chemicals consumption required
  •   Minimal space requirement with its compact design
  •   Long Lifetime of EDI Stacks, at least 3—5 years

Application

Application

EDI Electrodeionization Modules are useful for any application that requires constant and economic removal of water impurities without using dangerous chemical. Some examples are:

* Reuse of residual water in food and beverages industry
* Chemical production
* Biotechnology
* Electronics
* Cosmetic
* Laboratories
* Pharmaceutical industry
* Boiler Feed Water
* Reduction of ionizable SiO2 and TOC (total organic carbon)

For ease of design and additional confidence in your EDI Application, we offer quality assurance and performance guarantees.

10m3/Hour EDI System treatment process

Benefits

Benifits

* Hinada EDI systems and modules provide key advantages compared to traditional ion-exchange processes:
* Eliminates expensive and hazardous chemicals used in ion-exchange resin regeneration
* Reduces energy and operating expenses
* Reduces the facility size requirement
* Helps plants meet output waterstandard requirements

Packaging

 EDI Module EDI System Packaging

Plywood case packaged, different size the weight and volume different.

Our Service

Our Service

* Hinada is EDI electrodeionization modules supplier, we have advanced technology and good after-sales service.

Hinada can also provide the complete EDI System for pure water, offer designation, supply and commissioning service.

EDI Module and EDI System with 3 years warranty.

Video

Purified Water System RO Plant and EDI

https://youtu.be/g-gDqT90VdY

Send Inquiry To Us

[contact-form-7]

The post EDI Module EDI System appeared first on Hinada.

]]>
Notice: ob_end_flush(): Failed to send buffer of zlib output compression (0) in /home/hinada/public_html/wp-includes/functions.php on line 5481
